Açıklama

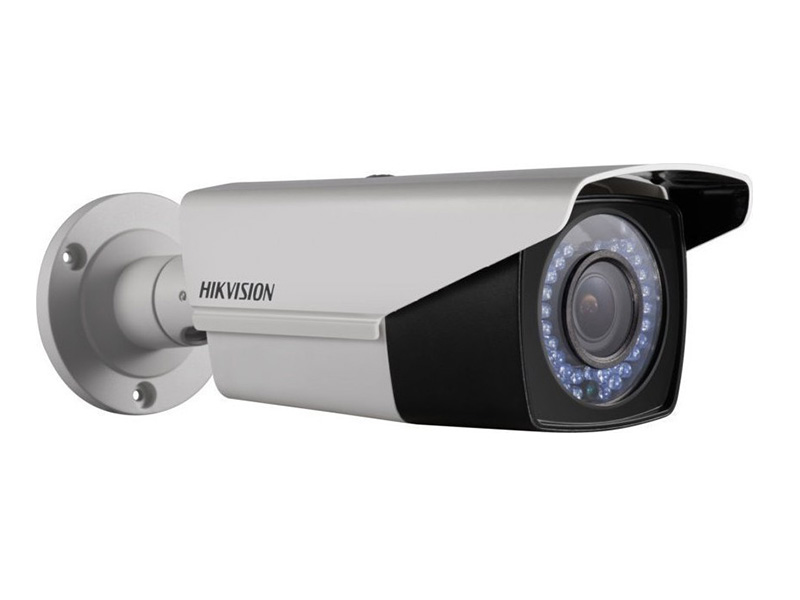

Hikvision DS 2CE16D5T AIR3ZH AHD Bullet Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- 2.8 – 12mm motorized vari-focal lens
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- True WDR, up to 120dB
- Up to 40m IR distance
- Built-in heater
- IP66 weatherproof
- Up the Coax(HIKVISION-C, Pelco-C Protocol)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR | |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8-12mm @ F1.4 |
| Angle of view: 103° - 32.1° | |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Camera ID | On/off (15 characters, position programmable) |
| Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel |
| correction, SMART D-ZOOM | |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15%, 24 VAC±15% |
| Power Consumption | Max. 12W |
| Weather Proof | IP66 |
| Heater | Support |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) |
| Weight | 690g (1.52 lbs) |
Hikvision DS 2CE16D5T AIR3ZH AHD Bullet Kamera Pdf Dosyası765.01 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
