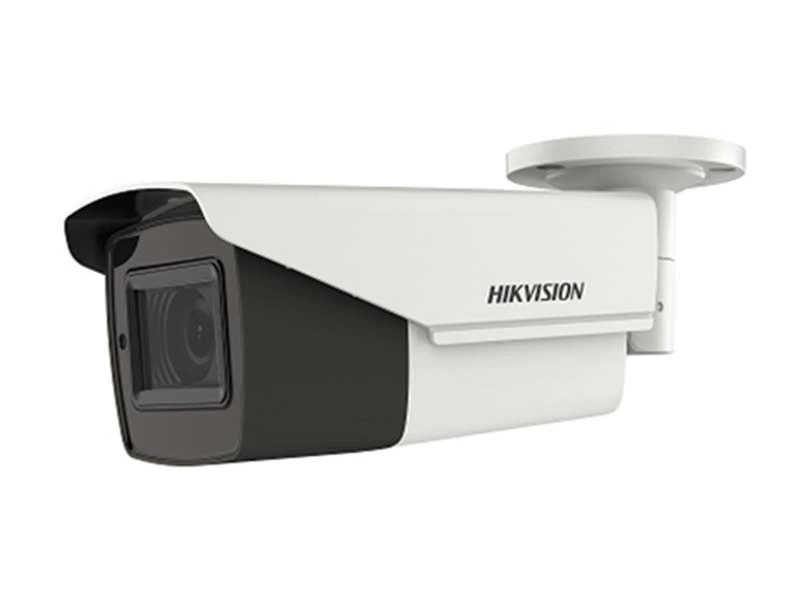

Hikvision DS 2CE19H8T (A)IT3ZF AHD Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.7 mm to 13.5 mm motorized vari-focal lens |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps |
| Synchronization | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction) | Level 1 to 9 |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | Auto / Manual |
| BLC | Support |
| AGC | Support |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 9 VDC to 15 VDC ( -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC) |
| Weather Proof: | IP67 |
| IR Range | Up to 80m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 885 g (1.95 lb.) |
| -A: Approx. 930 g (2.05 lb.) | |
Hikvision DS 2CE19H8T (A)IT3ZF AHD Bullet Kamera Pdf Dosyası909.65 KB
