Açıklama

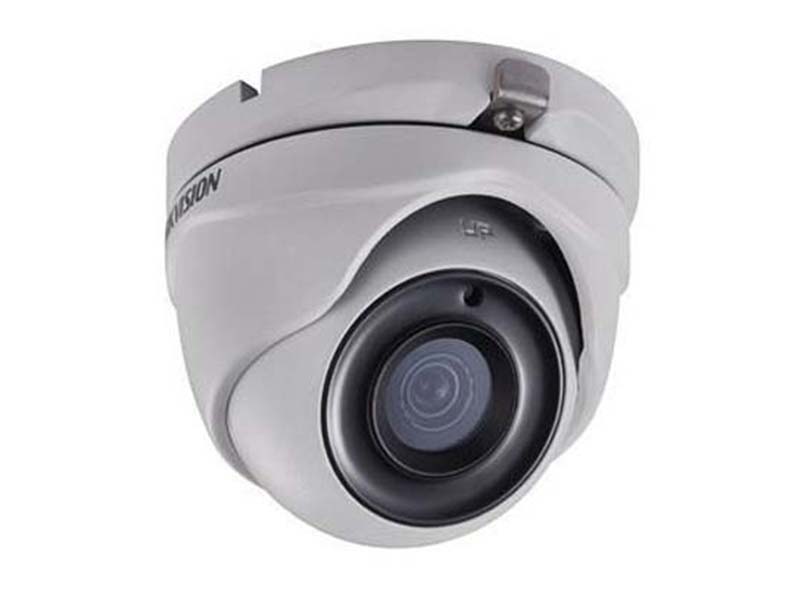

Hikvision DS 2CE51H1T ITM AHD Turret Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.8-12mm motorized vari-focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20m IR distance
- IP67 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 5MP CMOS Image Sensor |
| Effective Pixels | 2592(H)*1944(V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed focal Lens |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 2592×1944@20fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal/Power synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balanca | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English/Chinese |
| Function | Brightness, Sharpness, Digital noise reduction, Mirror, Bad pixel correction, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±30% |
| Power Consumption | Max. 5 W |
| Weather Proof | IP67 |
| IR Range | Approx 10 to 20 meters |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69") |
| Weight | Approx. 350 g (0.77 lb) |
Hikvision DS 2CE51H1T ITM AHD Turret Kamera Pdf Dosyası843.6 KB
