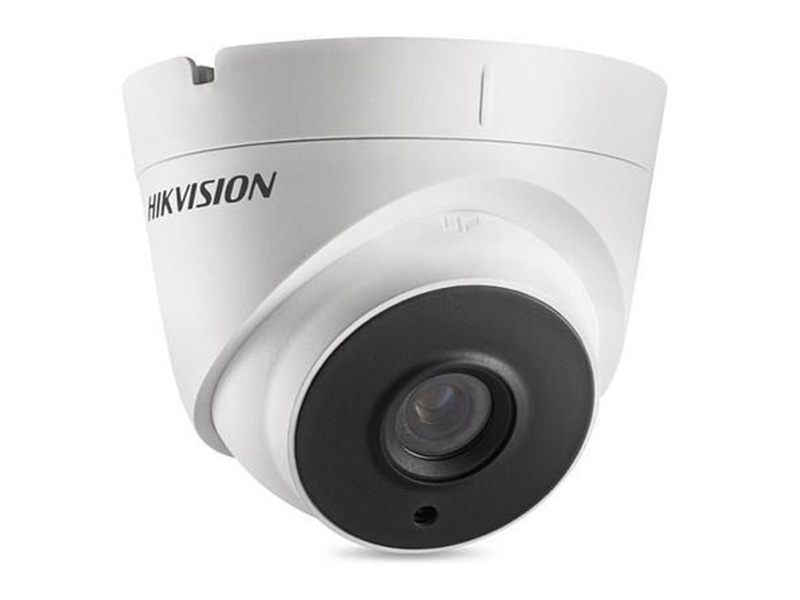

Hikvision DS 2CE56D0T IT1 AHD Dome Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- Smart IR
- EXIR technology, up to 20m/40m IR distance
- IP66 weatherproof
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8mm, 3.6mm, 6mm optional |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| General | |
| Operating Conditions | -20 °C - 45 °C (-4 °F - 113 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Dimension | Φ110 × 93.2 mm(Φ4.33” × 3.67”) |
| Weight | 350 g |
Hikvision DS 2CE56D0T IT1 AHD Dome Kamera Pdf Dosyası743.89 KB
Hikvision DS 2CE56D0T IT1 AHD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası1.12 MB
Teknik Kısa
Çözünürlük :
2MP (1080P)
