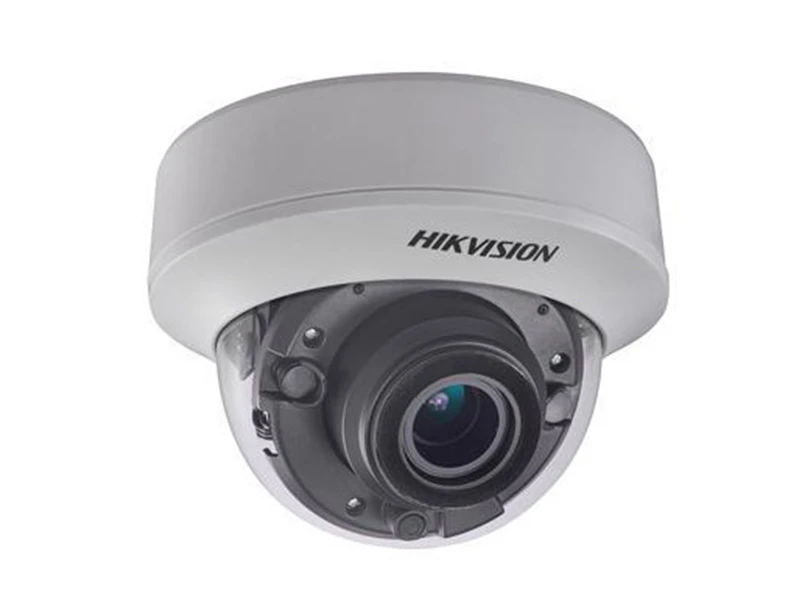

Hikvision DS 2CE56D8T A ITZ AHD Dome Kamera

Özellikler

Camera
Image Sensor	2MP CMOS Image Sensor
Signal System	PAL/NTSC
Effective Pixels	1920(H)*1080(V)
Min. Illumination	Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time	1/25(1/30) s to 1/50,000 s
Lens	2.8 mm to 12 mm motorized vari-focal lens
Lens Mount	φ14
Adjustment Range	Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120dB
Video Frame Rate	PAL: 1080p@25fps
Video Frame Rate	NTSC: 1080p@30fps
HD Video Output	1 Analog HD output
Synchronization	Internal Synchronization
Up the Coax	Support
Menu
D/N Mode	Auto / Color / B/W
Auto White Balance	Auto trace WB1/Auto trace WB2/Manual/Auto Control
Motion Detection	4 programmable motion areas
AGC	Support
Language	English/Chinese
General
Operating Conditions	-40 °C - 60 °C (-40 °F - 140 °F)
Operating Conditions	Humidity 90% or less (non-condensing)
Power Supply	12 VDC±25%
Power Supply	-A: 12 VDC±25%, 24 VDC±25%
Power Consumption	Max. 7 W
IR Range	Up to 20m
Communication	Up the coax
Communication	Protocol: HIKVISION-C(Coaxitron)
Dimension	Φ 136 mm × 102 mm (Φ 5.35" × 4.02")
Weight	Approx. 600 g (1.32 lb.)
