Açıklama

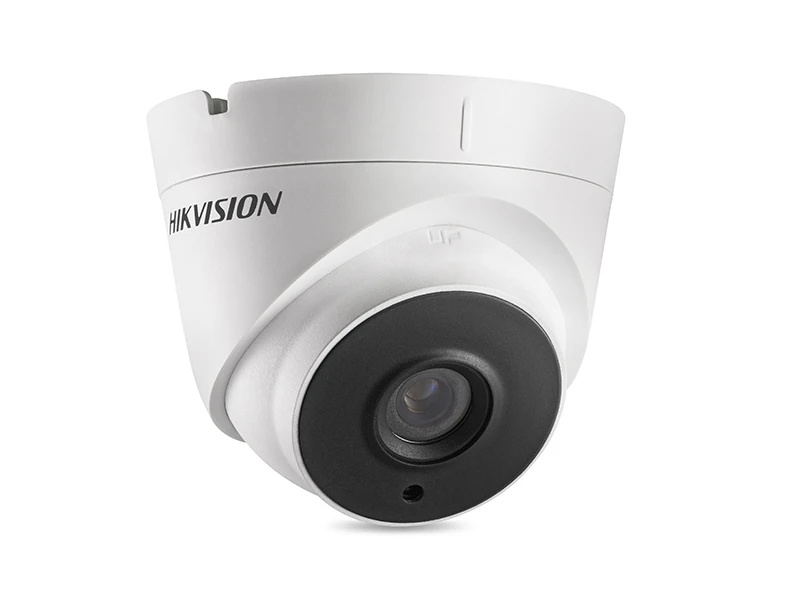

Hikvision DS 2CE56F1T IT3 AHD Dome Kamera
Özellikler
- 3 Megapixel high-performance CMOS
- Analog HD output, up to 3MP resolution
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 20/40m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 3MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 2052(H)*1536(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional |
| Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm), 31.6°(8mm), 20.2°(12mm), 15.8°(16mm) | |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 1920 ×1536@18fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Menu | |
| D/N Mode | Color/BW/SMART |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English/Chinese |
| Function | Digital noise reduction, Mirror, SMART IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 5W |
| Weather Proof | IP66 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | φ110mm×93.2mm (φ4.33”×3.67”) |
| Weight | Approx. 350g (0.77lb) |
Hikvision DS 2CE56F1T IT3 AHD Dome Kamera Pdf Dosyası852.87 KB
