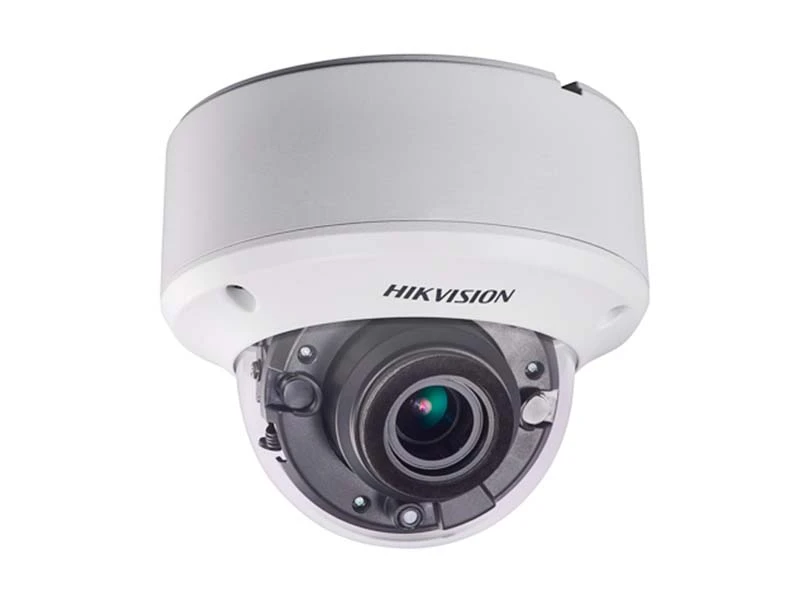

Hikvision DS 2CE56H5T VPIT3ZE AHD Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 5MP CMOS Image Sensor |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | Motorized VF lens; 2.8 to 12 mm |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 2560 × 1944 @ 20fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto/MWB |
| BLC: | Support |
| AGC: | Support |
| Language | English/Chinese |
| Function | Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25%/PoC.at |
| Power Consumption | Max. 8 W |
| Impact Protection | IK10. |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" ) |
| Weight | Approx. 1600 g (3.53 lb.) |
Hikvision DS 2CE56H5T VPIT3ZE AHD Dome Kamera Pdf Dosyası1022.22 KB
