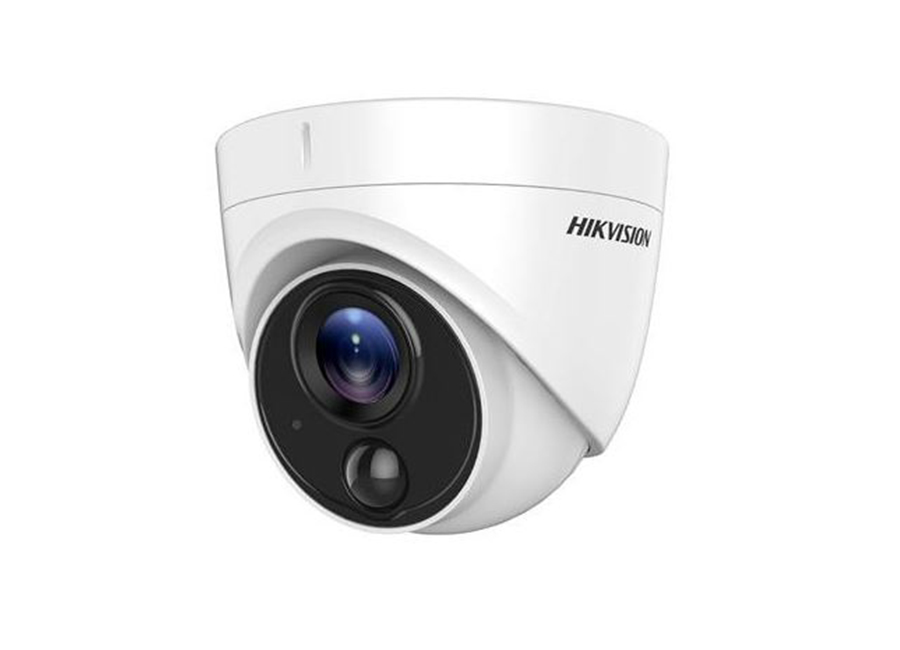

Hikvision DS 2CE71D8T PIRLO AHD Turret Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Slow Shutter | Max. 16 times |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s |
| NTSC: 1/30 s to 1/50, 000 s | |
| Lens | 2.8 mm, 3.6 mm fixed focal lens |
| Day& Night | IR cut filter |
| Horizontal Resolution | 1920 (H) × 1080 (V) |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 103.5°(2.8 mm), 79.1°(3.6 mm) |
| Menu | |
| White Light | Alarm/Off |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | Auto / Manual |
| BLC | WDR/BLC/HLC/Global |
| AGC | Yes |
| Language | English |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Visual Alarm | Yes |
| PIR Range | Angle: 110°, Range:11 m |
| Material | Enclosure: Plastic |
| Main body: Metal | |
| Ingress Protection | IP67 |
| Power Supply | 12 VDC±25% |
| IR Range | Up to 20m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimension | Φ 109.8 mm × 89.75 mm (Φ 4.32" × 3.53") |
| Weight | Approx. 327 g (0.72 lb.) |
Hikvision DS 2CE71D8T PIRLO AHD Turret Kamera Pdf Dosyası1.02 MB
