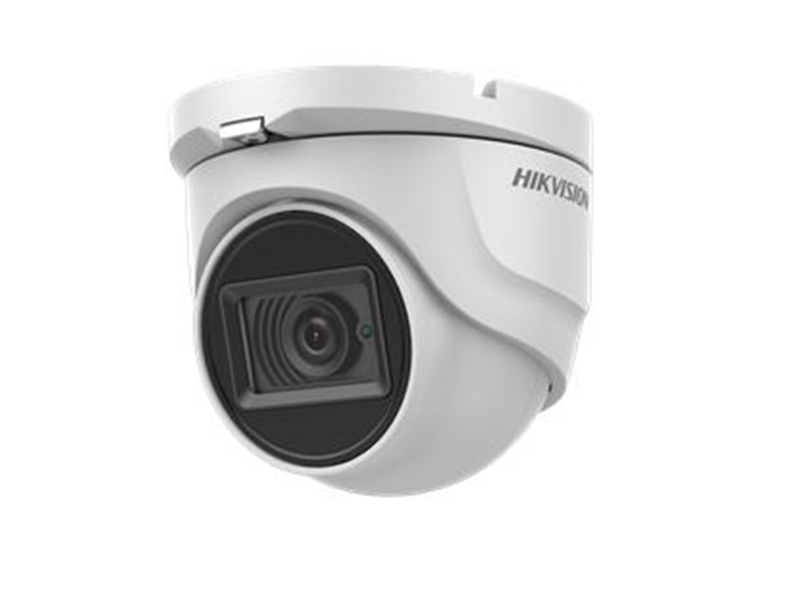

Hikvision DS 2CE76H8T ITMF AHD Turret Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC |
| Synchronization | Internal Synchronization |
| Menu | |
| 3D DNR (Digital Noise Reduction) | Level 1 to 9 |
| D/N Mode | Auto/Color/BW (Black and White) |
| Auto White Balance | Auto / Manual |
| BLC | Support |
| AGC | Support |
| WDR | Yes |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 90 mm × 79.37 mm (3.54" × 3.12" ) |
| Weight | Approx. 300 g (0.66 lb.) |
Hikvision DS 2CE76H8T ITMF AHD Turret Kamera Pdf Dosyası1.07 MB
