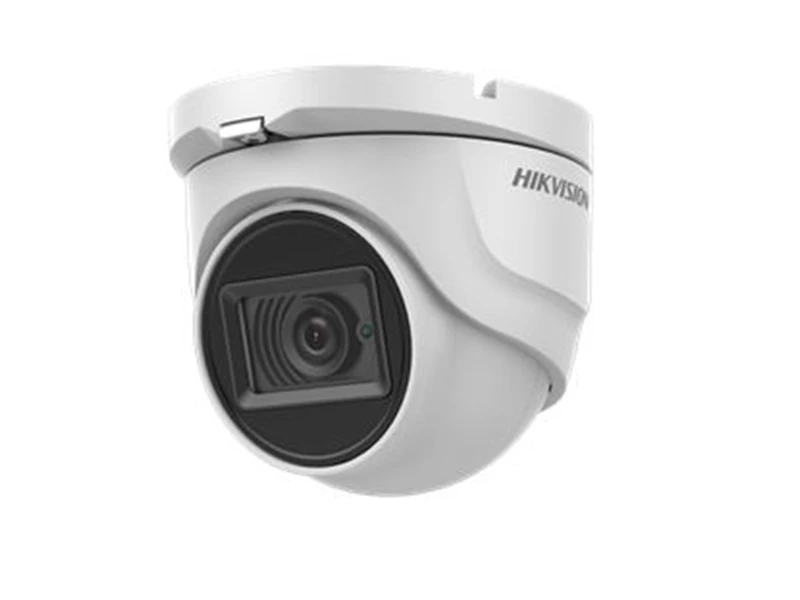

Hikvision DS 2CE76U1T ITMF AHD Turret Kamera
Özellikler
- 8.29 Megapixel high-performance CMOS
- 3840 × 2160 resolution
- 2.8mm 3.6 mm, 6 mm fixed lens
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- EXIR 2.0, smart IR, up to 30m IR distance
- IP67
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 8.29 MP high performance CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount | M16 |
| Adjustment Range | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: , 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: , 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N |
| Synchronization | Internal Synchronization |
| Lens | |
| Horizontal Field of View | 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm) |
| Menu | |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | Support |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Out | 1 HD analog output |
| General | |
| Material | Metal |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| Power Consumption | Max. 5.3 W |
| IR Range | Up to 30m |
| Communication | Up the coax |
| Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) | |
| Dimension | 90 mm × 79.37 mm (3.54" × 3.12" ) |
| Weight | Approx. 310 g (0.68 lb.) |
Hikvision DS 2CE76U1T ITMF AHD Turret Kamera Pdf Dosyası1.07 MB
