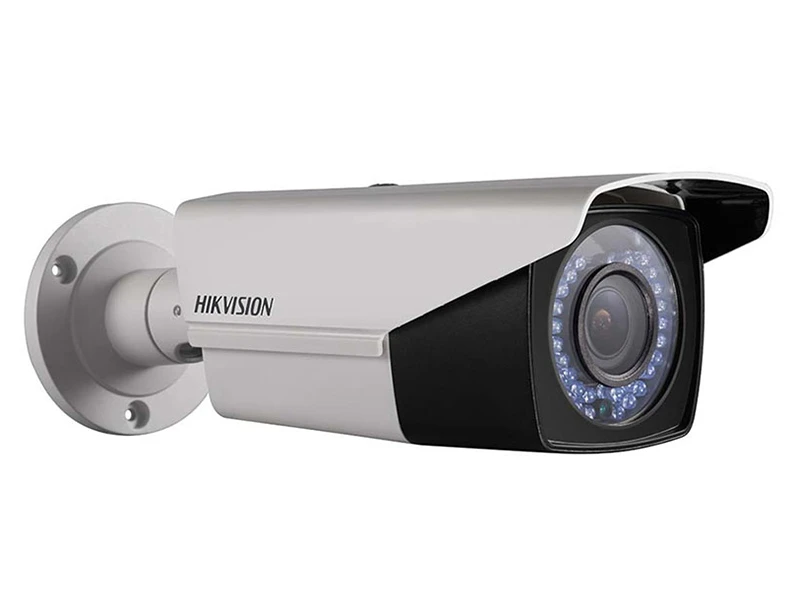

Haikon DS 2CE16D1T VFIR3 HD TVI Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1930(H) × 1088(V) |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens: | 2.8 - 12 mm @ F1.4 , Angle of view: 114.5° - 35.1° |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: - 360°, Tilt: - 90°, Rotation: - 360° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 1080p@25fps/1080p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| S/N Ratio: | More than 62 dB |
| Up the Coax: | Support |
| Menu | |
| Camera ID: | On/Off (0-255) |
| D/N Mode: | Color/ BW/ Auto/ EXT |
| Auto White Balance: | Auto/User/Push/8000K/6000K/4200K/3000K |
| Private Mask: | On/Off, maximum 8 zones |
| Motion Detection: | On/Off, maximum 4 zones |
| BLC: | On/Off |
| AGC: | Support |
| Anti-flicker: | On/ Off |
| Language: | English/Chinese |
| Function: | Digital noise reduction, Mirror |
| General | |
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC±15% |
| -A: 12 VDC±15%, 24 VAC±15% | |
| Power Consumption: | Max. 5W |
| -A: Max. 6W | |
| Weather Proof: | IP66 |
| IR Range: | Up to 40m |
| Communication : | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension: | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) |
| Weight: | 690g (1.52 lb) |
Haikon DS 2CE16D1T VFIR3 HD TVI Bullet Kamera Pdf Dosyası577.93 KB
