Açıklama

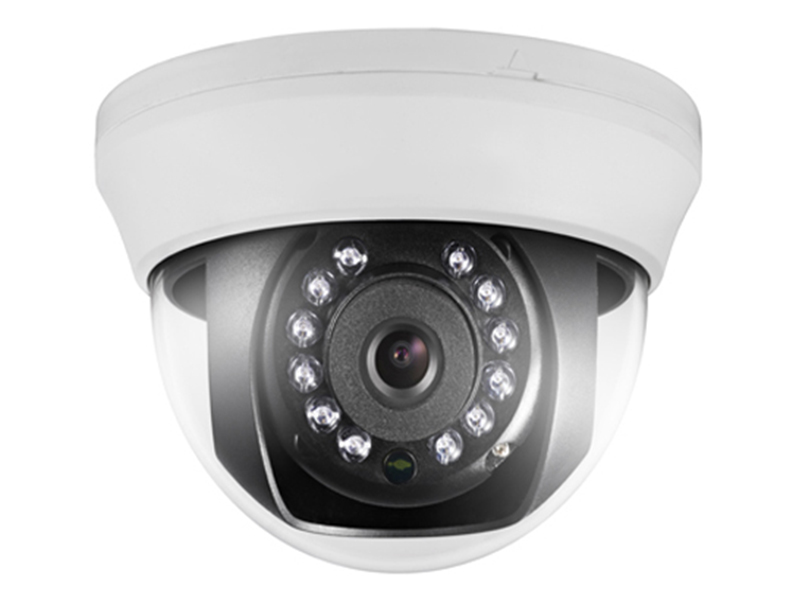

Haikon DS 2CE56D1T IRMM HD TVI Dome Kamera
Özellikler
Teknik Özellikler
| Image Sensor: 2MP CMOS Image Sensor |
| Signal System: PAL/NTSC |
| Effective Pixels: 1930(H) × 1088(V) |
| Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time: 1/25(1/30) s to 1/50,000 s |
| Lens: 3.6mm, 6mm optional, Angle of View: 91.3°(3.6mm), 59.9°(6mm) |
| Lens Mount: M12 |
| Adjustment Range: Pan: 0 - 350°, Tilt: 0 - 70°, Rotation: 0 - 350° |
| Day& Night: IR cut filter with auto switch |
| Video Frame Rate: 1080p @ 25fps/1080p @ 30fps |
| HD Video Output: 1 Analog HD output |
| Synchronization: Internal Synchronization |
| S/N Ratio: More than 62 dB |
| Up the Coax: Support |
| Camera ID: On/Off (0-255) |
| D/N Mode: Color/ BW/ Auto/ EXT |
| Auto White Balance: Auto/User/Push/8000K/6000K/4200K/3000K |
| Private Mask: On/Off, maximum 8 zones |
| Motion Detection: On/Off, maximum 4 zones |
| BLC: On/Off |
| AGC: Support |
| Anti-flicker: On/ Off |
| Language: English/Chinese |
| Function: Digital noise reduction, Mirror |
| Operating Conditions: -20 °C - 45 °C (-4 °F - 113 °F) |
| Power Supply: 12 VDC±15% |
| Power Consumption: Max. 4W |
| IR Range: Up to 20m |
| Dimension: Φ 98 x 65.4 mm (φ 3.86” x 2.57”) |
| Weight: 240 g |
Haikon DS 2CE56D1T IRMM HD TVI Dome Kamera Pdf Dosyası844.22 KB
