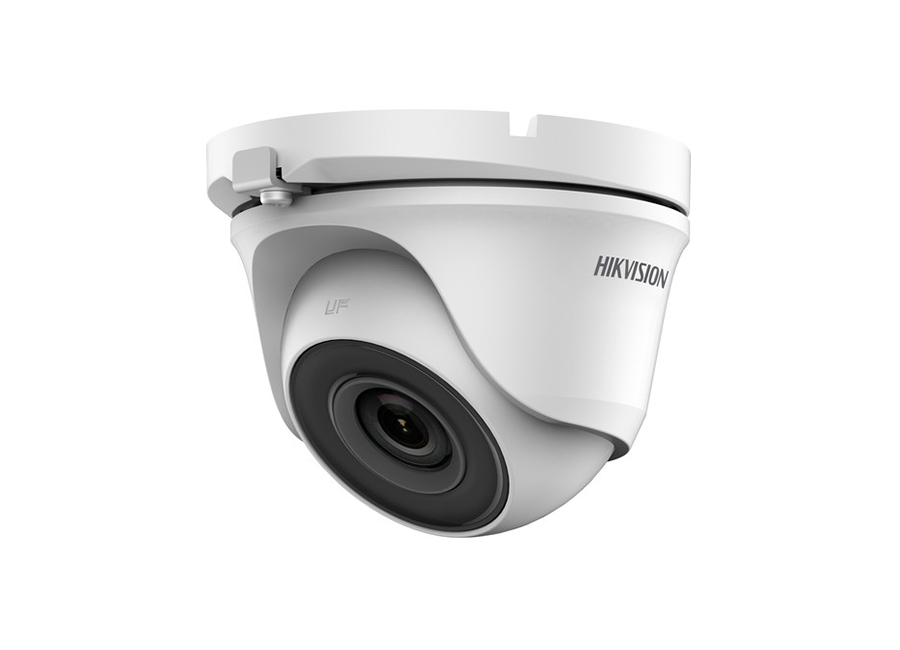

Hikvision ECT T12F2 HDTVI Turret Kamera
Özellikler
- EXIR 2.0 IR technology for low-light visibility up to 65'
- IR cut filter for day and night vision
- Camera pivots from 0 to 360° horizontally and from 0 to 75° vertically
- 0 to 360° rotation
- Internal synchronization
- Digital wide dynamic range
- Automatic gain control
- Backlight compensation
- Digital noise reduction
- Mirroring
- Smart IR
- Multi-protocol output TVI/AHD/CVI/CVBS
- cSA, FCC, CE, and UL certified
- IP66 rated for outdoor use
Teknik Özellikler
| Image Sensor | 2 MP CMOS Sensor |
| Signal System | NTSC |
| Resolution | 1920 x 1080 |
| Frame Rate | 30 fps at 1920 x 1080 |
| Minimum Illumination | Color: 0.01 Lux at f/1.2, AGC On |
| B&W: 0 Lux with IR | |
| Shutter Speed | 1/50,000 to 1/30 Seconds |
| Lens | 2.8mm Fixed |
| Field of View | Horizontal: 103° |
| Lens Mount | M12 |
| Day/Night | IR Cut Filter |
| Angle Adjustment | Horizontal: 0 to 360° |
| Vertical: 0 to 75° | |
| Rotation: 0 to 360° | |
| Synchronization | Internal |
| Menu | |
| AGC | High/Medium/Low/Off |
| Day/Night | Auto/Color/B&W |
| Backlight Compensation | Yes |
| WDR | Digital |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| HD Video Output | 1 x Analog HD Output |
| Switch | TVI/AHD/CVI/CVBS |
| General | |
| IR Range | Up to 65' / 20 m |
| Ingress Protection | IP66 |
| Certifications | UL, CE, FCC, cSA |
| Material | Metal |
| Power Supply | 12 VDC ±25% |
| Maximum Power Consumption | 4 W |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 90% Max., Non-Condensing |
| Dimensions (Ø x H) | 3.38 x 2.74" / 8.3 x 7.0 cm |
| Weight | 0.51 lb / 230 g Approximate |
| Packaging Info | |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 4.45 x 4.25 x 3.25" |
