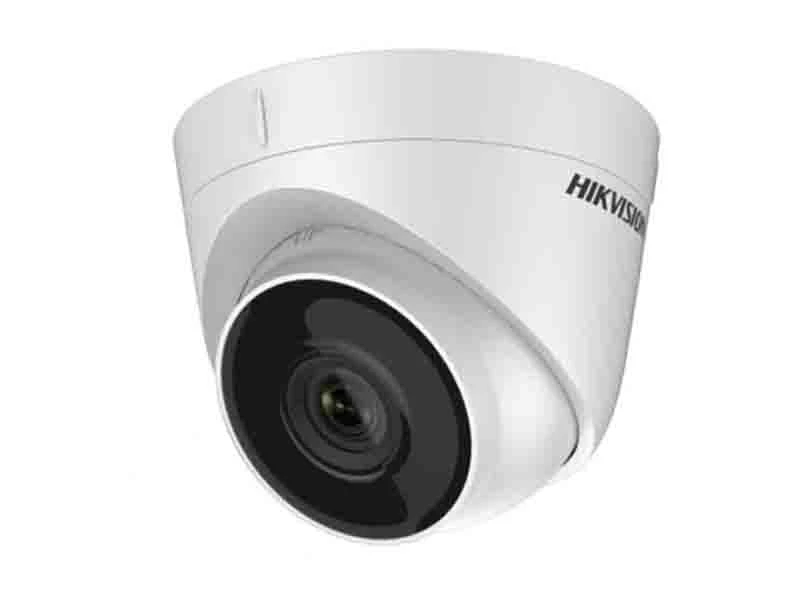

Hikvision DS 2CE56H0T ITPF HD TVI Turret Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- True Day/Night
- OSD menu, 2D DNR, DWDR
- EXIR technology, up to 20m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 5MP CMOS Image Sensor |
| Effective Pixels | 2560 (H) × 1944 (V) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 2560 × 1944 @ 20fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal/Power synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| AGC | Support |
| Language | English |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| Weather Proof | IP67 |
| IR Range | Up to 20m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | ? 85.4 mm × 76.12 mm (? 3.38" × 2.67") |
| Weight | Approx.: 130 g (0.42 lb.) |
Hikvision DS 2CE56H0T ITPF HD TVI Turret Kamera Pdf Dosyası856.1 KB
