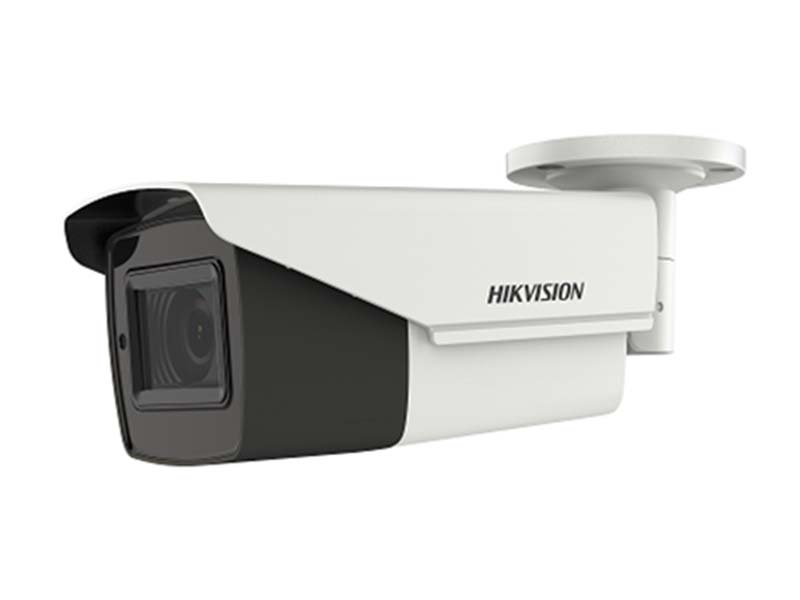

Hikvision DS 2CE16H5T AIT3Z HD TVI Bullet Kamera
Özellikler
- 5 Megapixel high-performance CMOS
- Analog HD output, up to 5MP resolution
- 2.8-12mm motorized vari-focal lens
- True Day/Night
- OSD menu, DNR, Smart IR
- EXIR technology, up to 40m IR distance
- IP67 weatherproof
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor: | 5MP CMOS Image Sensor |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | Motorized VF lens; 2.8 to 12 mm |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 2560 × 1944 @ 20fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| Menu | |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto/MWB |
| BLC | Support |
| Language | English/Chinese |
| Function | Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±25% |
| -A: 12 VDC±25%, 24 VDC±25% | |
| Power Consumption | Max. 9 W |
| -A: Max. 9.5 W | |
| Weather Proof | IP67 |
| IR Range | Up to 40m |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 92 mm × 89 mm × 269.6 mm (3.62" × 3.5" × 10.6") |
| Weight | Approx. 900 g (1.98 lb.) |
Hikvision DS 2CE16H5T AIT3Z HD TVI Bullet Kamera Pdf Dosyası842.87 KB
