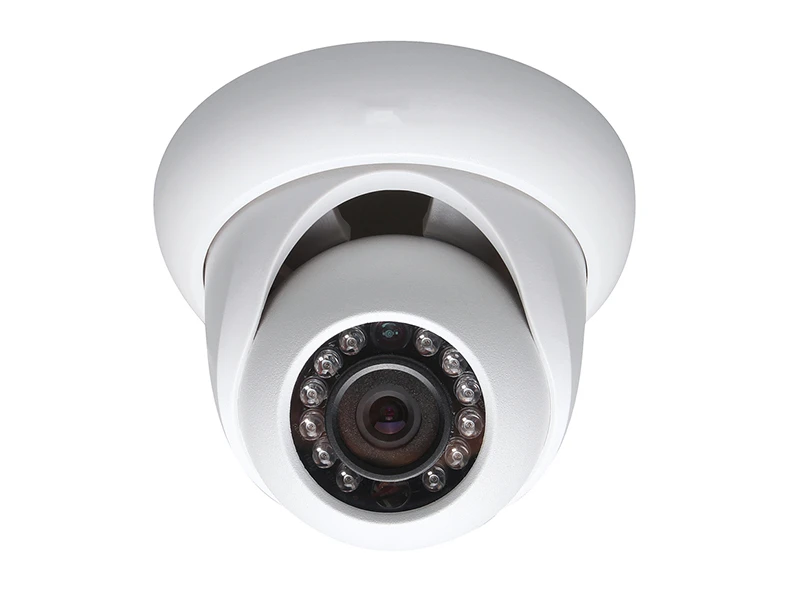

Dahua DH HDC HDW2200S HD SDI Dome Kamera
Özellikler
- 1/3” 3.0 Megapixel progressive scan CMOS image sensor
- High color reproduction and high sensitivity
- Standard HD-SDI high definition digital interface (SMPT274/292)
- Full 1080P(1920×1080)@25/30fps, 720P(1280×720)@50/60fps HD-SDI video out
- Fixed Lens 3.6mm/F1.6 (6mm optional)
- Max. IR distance is 20m
- Support ICR true Day/Night
- Support RS485 System parameters configuration
- IP66 Waterproof
- DC12V
- Support OSD menu
Teknik Özellikler
| Model | DH-HDC-HDW2200SP | DH-HDC-HDW2200SN |
| Camera | ||
| Image Sensor | 1/3” 3 Megapixel progressive scan CMOS | |
| Effective Pixels | 2052 (H)×1536(V) | |
| Scanning System | Progressive | |
| Electronic ShutterSpeed | Auto/Manual, 1/3~1/10,000s | Auto/Manual, 1/4~1/10,000s |
| Mini. Illumination | 0.1LUX/F1.4(Color), 0.01LUX/
F1.4(B/W); 0 lux( IR on) | |
| S/N Ratio | More than 50dB | |
| HD-SDI Video Output | 1ch HD-SDI high-definition video(SMPTE 274/292 standard) | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| OSD | English | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / WDR / Off | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 8 areas | |
| Picture Adjustment | ||
| Digital Zoom | N/A | |
| Lens | ||
| Focal Length | 3.6mm ( 6mm optional) | |
| Max Aperture | F1.6 | |
| Focus Control | Manual | |
| Angle of View | H:70°(46°) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in type | |
| Video | ||
| Resolution | 1080P(1920´1080)/720P(1280´720)/
DI(704´576)/ CIF(352´288) | 1080P(1920´1080)/720P
(1280´720)/DI(704´480)/
CIF(352´240) |
| Auxiliary Interface | ||
| RS485 | 1 Port | |
| Alarm | N/A | |
| General | ||
| Power Supply | DC12V | |
| Power Consumption | 3W (6W IR on) | |
| Working Environment | -10°C~+60°C, 10%~90% | |
| Ingress Protection | IP66 | |
| Vandal Resistance | N/A | |
| Dimension | ?113.6mm×85.8mm | |
| Weight | 0.4kg | |
