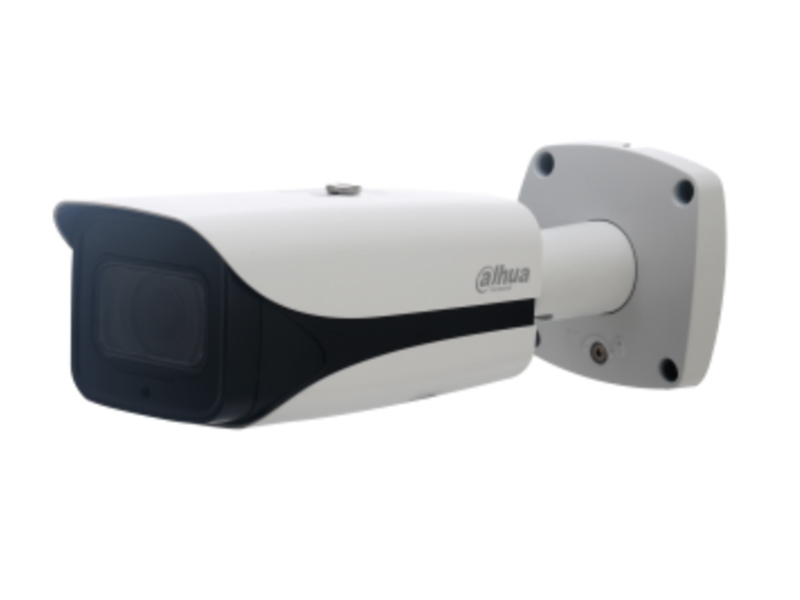

Dahua HAC HFW3231E Z12 HDCVI Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/2.8" CMOS | ||
| Effective Pixels | 1945(H)×1097(V), 2.1MP | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | PAL: 1.3s~1/30000s | ||
| NTSC: 1s~1/30000s | |||
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on | ||
| S/N Ratio | More than 65dB | ||
| IR Distance | Up to 100m (328feet) | ||
| IR On/Off Control | Auto / Manual | ||
| IR LEDs | 4 | ||
| Lens | |||
| Lens Type | Motorized lens / Auto iris | ||
| Mount Type | Board-in | ||
| Focal Length | 5.3-64mm | ||
| Max Aperture | F1.6 | ||
| Angle of View | H: 58°~5° | ||
| Focus Control | Auto / Manual | ||
| Close Focus Distance | 1500mm 59.06'' | ||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
Definition | Distance | ||
| Detect | 25px/m (8px/ft) | 73m(240ft) | 883m(2897ft) |
| Observe | 63px/m (19px/ft) | 29m(95ft) | 353m(1158ft) |
| Recognize | 125px/m (38px/ft) | 15m(49ft) | 177m(581ft) |
| Identify | 250ppm (76px/ft) | 7m(23ft) | 88m(289ft) |
| Pan / Tilt / Rotation | |||
| Pan/Tilt/Rotation | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° | ||
| Video | |||
| Resolution | 1080P (1920×1080) | ||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||
| Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output CVBS tester out | ||
| Day/Night | Auto (ICR) / Manual | ||
| OSD Menu | Multi-language | ||
| BLC Mode | BLC / HLC / WDR | ||
| WDR | 120dB | ||
| Gain Control | AGC | ||
| Noise Reduction | 2D / 3D | ||
| White Balance | Auto / Manual | ||
| Smart IR | Auto / Manual | ||
| Certifications | |||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-20149 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||
| Interface | |||
| Audio Interface | 1-channel audio in | ||
| Alarm Interface | 1-channel alarm in & 1-channel alarm out | ||
| Eelectrical | |||
| Power Supply | AC 24V±25% / DC 12V±25% | ||
| Power Consumption | Max 15.6W (12V DC, IR on) | ||
| Environmental | |||
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F) | ||
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | ||
| Ingress Protection & Vandal Resistance | IP67 & IK10 | ||
| Construction | |||
| Casing | Aluminium | ||
| Dimensions | 273.2mm×95.0mm×95.0mm (10.76"×3.74"×3.74") | ||
| Net Weight | 1.08kg (2.38lb) | ||
| Gross Weight | 1.33kg (2.93lb) | ||
Dahua HAC HFW3231E Z12 HDCVI Bullet Kamera Pdf Dosyası1.01 MB
