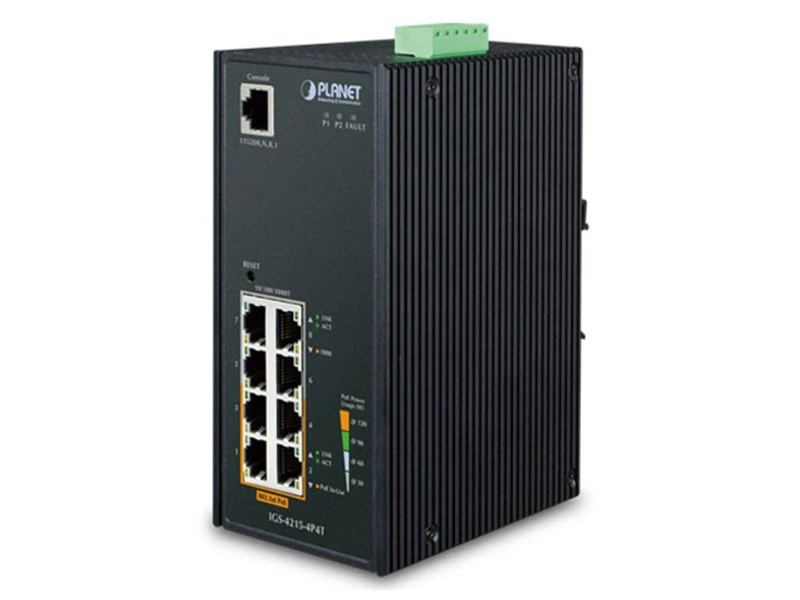

1000 Endüstriyel PoE Switch

Özellikler

Physical Port

8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
RJ45 console interface for switch basic management and setup

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters
PoE management
Total PoE power budget control
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive-check
PoE schedule

Industrial Case & Installation

IP30 aluminum case
DIN-rail and wall-mounted design
Supports -40 to 75 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Redundant power design
48V~56V DC wide power input with polarity reverse protection
Provides one relay output for power failure

Switching

Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol

Layer 2 Features

Supports VLAN
IEEE 802.1Q tagged VLAN
Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
Protocol VLAN
Voice VLAN
Private VLAN (Protected port)
Management VLAN
GVRP
Supports Spanning Tree Protocol
STP (Spanning Tree Protocol)
RSTP (Rapid Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 4 trunk groups, up to 4 ports per trunk group
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops

Quality of Service

Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
IEEE 802.1p CoS
TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IPv4 IGMP snooping v2, v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Security

Storm Control support
Broadcast/unknown unicast/unknown multicast
Authentication
IEEE 802.1X port-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
DHCP Option 82
RADIUS/TACACS+ authentication
Access Control List
IPv4/IPv6 IP-based ACL
IPv4/IPv6 IP-based ACE
MAC-based ACL
MAC-based ACE
MAC Security
Static MAC
MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention

Management

IPv4 and IPv6 dual stack management
Switch Management Interface
IPv4/IPv6 Web switch management
Console and telnet Command Line Interface
SNMP v1, v2c, v3
SSH and SSL secure access
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP/TFTP
Configuration upload/download through HTTP/TFTP
Hardware reset button for system reboot or reset to factory default
Dual images
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
SNMP trap for interface Link Up and Link Down notification
Event message logging to remote syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery Utility

Teknik Özellikler

Hardware Specifications
Copper Ports	8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Injector Port	4 ports with 802.3af/802.3at PoE injector function (Port-1 to Port-4)
Console	1 x RS232-to-RJ45 serial port (115200,8, N, 1)
Switch Architecture	Store-and-Forward
Switch Fabric	16Gbps/non-blocking
Switch Throughput@64 bytes	11.9Mpps@64 bytes
MAC Address Table	8K entries
Shared Data Buffer	4.1 megabits
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	10 Kbytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
LED	3 x LED for System and Power:
	■ Green: DC Power 1
	■ Green: DC Power 2
	■ Red: Power Fault
	2 x LED for PoE Copper Port (Port-1~Port-4):
	■ Green: LNK/ACT
	■ Orange: PoE-in-use
	2 x LED for 10/100/1000T Copper Port (Port-5~Port-8):
	■ Green: LNK/ACT
	■ Orange: 1000Mbps
	4 x LED for PoE Power Usage (W)
	■ Orange: 30, 60, 90 and 120W
Connector	Removable 6-pin terminal block
Connector	Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC
Power Requirements	48~56V DC, 3.5A (max.)
Power Consumption/ Dissipation	5.04 watts, 17.1BTU (Standby without PoE function)
	7.28 watts, 23 BTU (Full loading without PoE function)
	151.28 watts, 516.1 BTU (Full loading with PoE function)
Dimensions (W x D x H)	161 x 107 x 72 mm
Weight	1001g
ESD Protection	6KV DC
Enclosure	IP30 aluminum case
Installation	DIN-rail kit and wall-mount ear
Power over Ethernet
PoE Standard	IEEE 802.3af/802.3at Power over Ethernet PSE
PoE Power Supply Type	End-span
PoE Power Output	IEEE 802.3af Standard
	- Per port 48V~56V DC (depending on the power supply), max. 15.4 watts
	IEEE 802.3at Standard
	- Per port 50V~56V DC (depending on the power supply), max. 36 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	144 watts (depending on power input)
Max. Number of Class 2 PD	4
Max. Number of Class 3 PD	4
Max. Number of Class 4 PD	4
Layer 2 Functions
Port Mirroring	TX/RX/Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	802.1ad Q-in-Q tunneling (VLAN stacking)
	Voice VLAN
	Protocol VLAN
	Private VLAN (Protected port)
	GVRP
	Management VLAN
Link Aggregation	IEEE 802.3ad LACP and static trunk
Link Aggregation	Supports 4 groups with 4 ports per trunk
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol (STP)
	IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
	IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
	STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP Snooping	IPv4 IGMP snooping v2, v3
	IGMP querier
	Up to 256 multicast groups
MLD Snooping	IPv6 MLD snooping v2, v3, up to 256 multicast groups
Access Control List	IPv4/IPv6 IP-based ACL/MAC-based ACL
Access Control List	IPv4/IPv6 IP-based ACE/MAC-based ACE
QoS	8 mapping IDs to 8 level priority queues
	- Port number
	- 802.1p priority
	- DSCP/IP precedence of IPv4/IPv6 packets
	Traffic classification based, strict priority and WRR
	Ingress/Egress Rate Limit per port bandwidth control
Security	IEEE 802.1X port-based authentication
	Built-in RADIUS client to cooperate with RADIUS server
	RADIUS/TACACS+ authentication
	IP-MAC port binding
	MAC filtering
	Static MAC address
	DHCP snooping and DHCP Option82
	STP BPDU guard, BPDU filtering and BPDU forwarding
	DoS attack prevention
	ARP inspection
	IP source guard
	Storm control support
	- Broadcast/unknown unicast/unknown multicast
Management Functions
Basic Management Interfaces	Web browser, Console, Telnet, SNMP v1, v2c, v3
	Firmware upgrade by HTTP/TFTP protocol through Ethernet network
	Configuration upload/download through HTTP/TFTP
	Remote/local syslog
	System log
	LLDP protocol
	SNTP
	PLANET Smart Discovery Utility
Secure Management Interfaces	SSH, SSL, SNMP v3
SNMP MIBs	RFC 1213 MIB-II
	RFC 1215 Generic Traps
	RFC 1493 Bridge MIB
	RFC 2674 Bridge MIB Extensions
	RFC 2737 Entity MIB v2
	RFC 2819 RMON (1, 2, 3, 9)
	RFC 2863 Interface Group MIB
	RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall)
	IEC 60068-2-27 (shock)
	IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab Gigabit 1000BASE-T
	IEEE 802.3x Flow Control and Back Pressure
	IEEE 802.3ad Port Trunk with LACP
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE 802.1p Class of Service
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	RFC 3810 MLD v2
Environment
Operating	Temperature: -40 ~ 75 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
