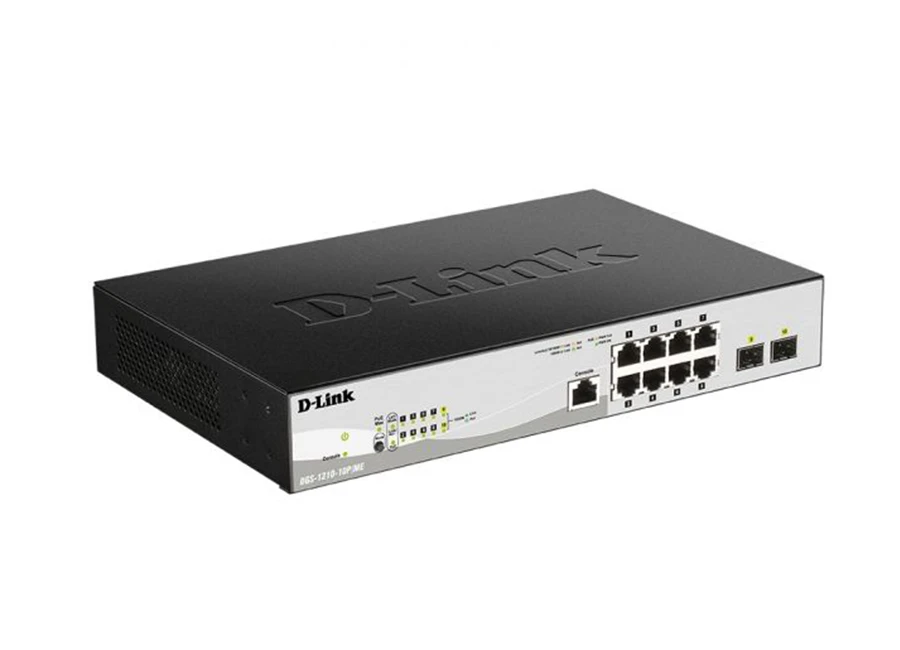

D-Link DGS 1210 10P/ME PoE Switch
Teknik Özellikler
| Hardware Version |
| A1 |
| Interface |
| Size |
| • 11” inch standard rackmount width |
| • 1U Height |
| Interface |
| • 8 10/100/1000BASE-T PoE + 2 SFP |
| Port Standards & Functions |
| • 8 Ports compliant with 802.3at |
| Console Port |
| • RJ-45 console port |
| Other Port Standards & Functions |
| • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) |
| • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) |
| • IEEE 802.3az compliance |
| • Auto-negotiation |
| • IEEE 802.3x Flow Control |
| • IEEE 802.3 |
| • IEEE 802.3u |
| • IEEE 802.3ab |
| • IEEE 802.3az |
| • IEEE 802.3z |
| Network Cables |
| • UTP Cat. 5, Cat. 5e (100 m max.) |
| Full/Half Duplex |
| • Full/half duplex for 10/100 Mbps speeds |
| • Full duplex for Gigabit speed |
| Media Interface Exchange |
| • Auto MDI/MDIX adjustment for all twisted-pair ports |
| Performance |
| Switching Capacity |
| • 40 Gbps |
| Switching method |
| • Store and forward |
| MAC Address Table Size |
| • 16K Entries |
| MAC Address Update |
| • Up to 256 static MAC entries |
| Maximum 64-byte Max.packet Forwarding Rate |
| • 14.88 Mbps |
| DDRIII for CPU |
| • 128 MB DDR3 |
| Packet Buffer |
| • 1.5 MB |
| Flash Memory |
| • 32 MB |
| LEDs |
| • Power (per device) |
| • Console (per device) |
| • Link/Active/Speed (per port) |
| • Fan Error |
| Software Specifications |
| L2 Features |
| • MAC Address Table: 16K |
| • Spanning Tree Protocols |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP |
| - BPDU filtering |
| - Root restriction |
| • Loopback detection |
| • Mirroring |
| - Support 1 mirroring group |
| - Support One-to-One, Many-to-One, Flow-based(ACL) mirroring for ingress traffic |
| • L2 Protocol Tunneling (L2PT) |
| • Link aggregation |
| - Compliant with 802.3ad |
| - Supports max 8 groups, 8 ports per group |
| L2 Multicasting |
| • IGMP Snooping |
| - IGMP v1/v2 snooping, v3 awareness |
| - IGMP authentication/filtering |
| - Supports 256 groups |
| - VLAN/host-based IGMP snooping fast leave |
| - Report suppression |
| • MLD snooping |
| - MLD v1, MLD v2 awareness |
| - Support 256 groups |
| VLAN |
| • 802.1Q tagged VLAN |
| • VLAN group |
| • Max. 4094 VLAN groups |
| • Port-based VLAN |
| • GVRP |
| • Asymmetric VLAN |
| • Max. 256 dynamic VLAN |
| • 802.1v protocol VLAN |
| • VLAN trunking |
| • MAC-based VLAN |
| • Port-based Q-in-Q |
| • ISM VLAN |
| L3 Features |
| • Max. 256 ARP entries |
| • Supports 255 static ARP entries |
| • Support Gratuitous ARP |
| Quality of Service (QoS) |
| • CoS based on: |
| - Switch port |
| - 802.1p priority queues |
| - VLAN ID |
| - MAC address |
| - IPv4/IPv6 address |
| - DSCP |
| - TOS |
| - Protocol type |
| - TCP/UDP port |
| - IPv6 traffic class |
| • Bandwidth Control |
| - Port-based (Ingress, Min. Granularity 64 Kbps) |
| - Flow-based (Ingress, Min. Granularity 64 Kbps) |
| - Egress queue bandwidth control (Min. Granularity 64 Kbps) |
| • Queue Handling |
| - Strict priority |
| - Weighted Round Robin (WRR) |
| • 8 outbound queues |
| Access Control List (ACL) |
| • ACL based on |
| - Switch port |
| - 802.1p priority |
| - VLAN ID |
| - MAC address |
| - Ether type |
| - TOS |
| - IPv4/v6 address |
| - DSCP |
| - Protocol type |
| - IPv4/IPv6 TCP/UDP port number |
| - ICMP |
| - IPv6 traffic class |
| • Up to 256 ingress access rules |
| • ACL Action (permit/deny/mirror) |
| • Time-based ACL |
| • ACL statistics |
| • CPU interface filtering |
| AAA |
| • 802.1X |
| - Host-based access control |
| - Port-based access control |
| • Guest VLAN |
| • RADIUS accounting |
| • TACACS+ accounting |
| • User Account Privilege (4 level user account) |
| Security |
| • SSH v2 |
| • SSL v1/2/3 |
| • Port security (Up to 64 MAC addresses per port) |
| • IP-MAC-Port Binding (IMPB) |
| - ARP inspection |
| - IP inspection |
| - IPv6 DHCP snooping |
| • Broadcast/Multicast/Unicast storm control |
| • D-Link Safeguard Engine |
| • DHCP server screening |
| • DHCP client filtering |
| • ARP spoofing prevention |
| • BPDU attack protection |
| • DoS attack prevention |
| • Traffic segmentation |
| OAM |
| • 802.3ah Ethernet Link OAM |
| - Support 802.3ah link layer remote loopback and discovery (System log and SNMP) |
| - 802.3ah D-Link extension: D-link Unidirectional Link Detection (DULD), (System log and SNMP) |
| • Cable diagnostics |
| Management |
| • Web-based GUI (IPv4/IPv6) |
| • Command Line Interface (CLI) |
| • Telnet Server/ Client (Support IPv4/IPv6) |
| • TFTP client (IPv4/IPv6) |
| • Command logging |
| • SNMP v1/v2c/v3 |
| • SNMP traps |
| • System log |
| • RMON v1 |
| • RMON v2 |
| • LLDP |
| • BootP/DHCP client |
| • DHCP Auto-configuration |
| • Text-editable config file |
| • Trusted host |
| • DHCP relay (IPv4/IPv6) |
| - DHCP relay agent/local relay |
| - DHCP relay option 12, 37, 38 |
| - DHCP relay option 82 |
| • PPPoE Circult-ID tag insertion |
| • Trap/alarm/log severity control |
| • CPU monitoring |
| • SNTP |
| • LLDP |
| • Debug command |
| • Password recovery |
| • Password encryption |
| • Backdoor password |
| • Trusted host |
| MIB |
| • RFC1213 MIB II |
| • RFC1493 Bridge MIB |
| • RFC1907 SNMPv2 MIB |
| • RFC1757, 2819 RMON MIB |
| • RFC2021 RMONv2 MIB |
| • RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB |
| • RFC2674,4363 802.1p MIB |
| • RFC 2233, 2863 IF MIB |
| • RFC 2618 RADIUS authentication client MIB |
| • RFC 2620 RADIUS accounting client MIB |
| • RFC 2925 ping & traceroute MIB |
| • Private MIB |
| • D-Link Zone Defense MIB |
| IETF Standard |
| • RFC768 UDP |
| • RFC791 IP |
| • RFC792 ICMPv4 |
| • RFC2463, 4443 ICMPv6 |
| • RFC793 TCP |
| • RFC826 ARP |
| • RFC 2474, 3260 definition of the DS Field in the IPv4 and IPv6 header |
| • RFC 1321, 2284,2865, 3580, 3748 Extensible |
| Authentication Protocol (EAP) |
| • RFC2571, RFC2572, RFC2573, RFC2574 SNMP |
| IPv6 |
| • RFC1981 Path MTU Discovery |
| • RFC2460 IPv6 |
| • RFC2461, 4861 Neighbor Discovery |
| • RFC2462, 4862 IPv6 Stateless Address Auto-configuration |
| • RFC2464 IPv6 Neighbor over Ethernet and definition |
| • RFC3513, 4291 IPv6 addressing architecture |
| • RFC2893, 4213 IPv4/IPv6 dual stack function |
| Physical/Environmental |
| MTBF (Hours) |
| • 309,439 hours |
| Acoustic |
| • 0 dB(A) |
| Heat Dissipation |
| • 347 BTU/hr |
| Power Input |
| • AC Input: 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption |
| • 103.4 Watts (PoE on) |
| • 103.4 Watts (PoE off) |
| Maximum PoE Budget |
| • 78 Watts |
| Standby Power Consumption |
| • 10.3 W/100 V |
| • 11.1 W/240 V |
| Dimensions (WxDxH) |
| • 280 mm x 180 mm x 44 mm |
| Ventilation |
| • Fanless |
| Power Surge Protection |
| • All Ethernet ports support IEC61000-4-5 surge protection |
| Operating Temperature |
| • -5 to 50 °C (23 to 122 °F) |
| Storage Temperature |
| • -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity |
| • 10% to 90% non-condensing |
| Storage Humidity |
| • 5% to 90% non-condensing |
| EMI |
| • FCC class A, CE class A, VCCI, C-Tick, BSMI, CCC |
| Safety Certifications |
| • CCC, CE LVD, UL/cUL |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port
