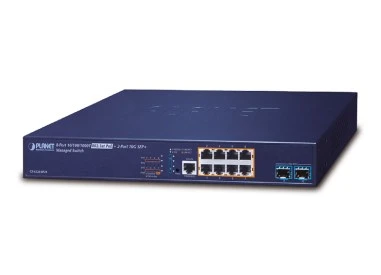

Planet MGS-6320-8HP2X Layer 3 PoE Switch

Teknik Özellikler

Hardware Specifications
Copper Ports	4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4
Copper Ports	4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8
SFP/mini-GBIC Slots	2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9to Port-10
PoE Injector Port	4 ports with 802.3at/af PoE injector function with Port-1 to Port-4
PoE Injector Port	4 ports with 802.3bt/at/af PoE injector function with Port-5 to Port-8
Console	1 x RJ45 serial port (115200, 8, N, 1)
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
RAM	512Mbytes
Flash Memory	64Mbytes
Dimensions (W x D x H)	330 x 200 x 44.5mm, 1U height
Weight	2127g
Power Requirements	100~240V AC, 50/60Hz, 3A max.
Power Consumption	Max. 15.48 watts/52.78BTU (Power on without any connection)
Power Consumption	Max. 281.6watts/960.25BTU (Full loading with PoE+ function)
ESD Protection	6KV DC
Surge Protection	4KV DC
LED	System:
	PWR (Green), SYS (Green), R.O (Green), Ring (Green)
	Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 4):
	1000Mbps LNK/ACT (Green)
	10/100Mbps LNK/ACT (Amber)
	802.3at/af PoE-in-Use (Amber)
	Per 10/100/1000/2500BASE-T RJ45 Interfaces (Port 5 to Port 8):
	1000/2500Mbps LNK/ACT (Green)
	10/100Mbps LNK/ACT (Amber)
	802.3bt PoE-in-Use (Green)
	802.3at/af PoE-in-Use (Amber)
	Per 1G/2.5G/10G Mbps SFP Interfaces (Port 9 to Port 10):
	1G/2.5G LNK/ACT (Green)
	10G LNK/ACT (Amber)
Switching Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	68Gbps/non-blocking
Throughput	50.59Mpps@ 64Bytes packet
Address Table	8K entries, automatic source address learning and aging
Shared Data Buffer	4.1Mbits
Flow Control	IEEE 802.3x pause frame for full-duplex
	Back pressure for half-duplex
Jumbo Frame	10Kbytes
Power over Ethernet
PoE Standard	IEEE 802.3at PoE+ PSE (Port 1 to Port 4)
	Backward compatible with IEEE 802.3af PoE PSE
	802.3bt PoE++ PSE (Port 5 to Port 8)
	Backward compatible with IEEE 802.3at PoE PSE
PoE Power Supply Type	802.3bt
	UPOE/POH
	End-span
	Mid-span
	Force
PoE Power Output	802.3bt Type-4 mode, Port-5 to Port-8: maximum 90 watts
	UPoE mode, Port-5 to Port-8: maximum 95 watts
	End-span mode: maximum 36 watts
	Mid-span mode: maximum 36 watts
	Force mode: maximum 60 watts
Power Pin Assignment	802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
	UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
	End-span: 1/2(-), 3/6(+)
	Mid-span: 4/5(+), 7/8(-)
PoE Power Budget	240 watts (max.) @ 25 degrees C
PoE Power Budget	200 watts (max.) @ 50 degrees C
Number of 802.3bt Type-4 PDs	2 units
Number of 802.3bt Type-3 PDs	4 units
Number of 802.3at Type-2 PDs	8 units
PoE Management Functions
PoE System Management	PoE Port Status monitoring
	Total PoE power budget control
	Over Temperature Protection
	PoE usage threshold and temperature threshold
PoE Device Live Detections	Per port remote PD IP address
	4 actions
	None
	PD reboot
	PR reboot and alarm
	Alarm
PoE Power Recyclinge	Yes, daily or predeinded schedule
PoE Schedule	4 schedule profiles
PoE Extend Mode	Yes, max. 200 meters
Layer 3 Functions
IP Interfaces	Max. 32 VLAN interfaces
Routing Table	Max. 32 static route entries
Routing Table	Max. 1K routing table entries
Routing Protocols	IPv4 RIPv2
	IPv4 OSPFv2
	IPv6 OSPFv3
	IPv4 hardware static routing
	IPv6 hardware static routing
Layer 2 Functions
Port Configuration	Port disable/enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable/enable
	Port link capability control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port Mirroring	TX/RX/Both
	Many-to-1 monitor
	Supports up to 5 sessions
VLAN	IEEE 802.1Q tag-based VLAN,
	IEEE 802.1ad Q-in-Q tunneling
	Private VLAN Edge (PVE)
	MAC-based VLAN
	Protocol-based VLAN
	Voice VLAN
	MVR (Multicast VLAN Registration)
	GVRP
	Up to 4K VLAN groups, out of 4094 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP (static trunk)
Link Aggregation	Supports 4 trunk groups with 10 ports per trunk
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping
	IPv4 IGMP querier mode support
	Supports 255 IGMP groups
MLD Snooping	IPv6 MLD (v1/v2) snooping,
	IPv6 MLD querier mode support
	Supports 255 MLD groups
Bandwidth Control	Per port bandwidth control
	Ingress: 10Kbps~13000Mbps
	Egress: 10Kbps~13000Mbps
Ring	Supports ERPS, and complies with ITU-T G.8032
	Recovery time < 10ms @ 3 nodes
	Recovery time <50ms @ 16 nodes
	Supports mMajor ring and sub-ring
QoS	Traffic classification based, strict priority and WRR
	8-level priority for switching
	Port number
	802.1p priority
	802.1Q VLAN tag
	DSCP/TOS field in IP packet
Security Functions
Access Control List	IP-based ACL/MAC-based ACL
	ACL based on:
	MAC Address
	IP Address
	Ethertype
	Protocol Type
	VLAN ID
	DSCP
	802.1p Priority
	Up to 512 entries
Security	Port security
	IP source guard, up to 512 entries
	Dynamic ARP inspection, up to 1K entries
	Command line authority control based on user level
	Static MAC address, up to 64 entries
AAA	RADIUS client
AAA	TACACS+ client
Network Access Control	IEEE 802.1x port-based network access control
	MAC-based authentication
	Local/RADIUS authentication
Management Functions
Basic Management Interfaces	Console;Telnet; Web browser; SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLSv1.2, SNMPv3
System Management	Firmware upgrade by HTTP protocol through Ethernet network
	Configuration upload/download through HTTP
	Remote Syslog
	System log
	LLDP protocol
	NTP
	PLANET Smart Discovery Utility
	PLANET CloudViewer app
Event Management	Remote Syslog
	System log
	SMTP
ONVIF	ONVIF device discovery
	ONVIF device monitoring
	Floor Map
SNMP MIBs	RFC1213 MIB-II
	RFC 2863 IF-MIB
	RFC1643 Ethernet MIB
	RFC2863 Interface MIB
	RFC2665 Ether-Like MIB
	RFC2737 Entity MIB
	RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC2618 RADIUS Client MIB
	RFC3411SNMP-Frameworks-MIB
	RFC 3621 Power Ethernet MIB
	IEEE802.1X PAE
	LLDP
	MAU-MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3z 1000BASE-SX/LX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3bz 2.5GBASE-X
	IEEE 802.3ae 10Gb/s Ethernet
	IEEE802.3x flow control and back pressure
	IEEE802.3ad port trunk with LACP
	IEEE802.1D Spanning Tree Protocol
	IEEE802.1w Rapid Spanning Tree Protocol
	IEEE 802.1s Multiple Spanning Tree Protocol
	IEEE802.1p Class of Service
	IEEE802.1Q VLAN tagging
	IEEE 802.1x Port Authentication Network Control
	IEEE 802.1ab LLDP
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3bt 4-pair Power over Ethernet Plus Plus
	RFC 768 UDP
	RFC 793 TFTP
	RFC 791 IP
	RFC 792 ICMP
	RFC 2068 HTTP
	RFC 1112 IGMP v1
	RFC 2236 IGMP v2
	RFC 3376 IGMP v3
	RFC 2710 MLD v1
	RFC 3810 MLD v2
	RFC 2328 OSPF v2
	RFC 2453 RIP v2
Environments
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70degrees C
Storage	Relative Humidity:5 ~ 95% (non-condensing)
