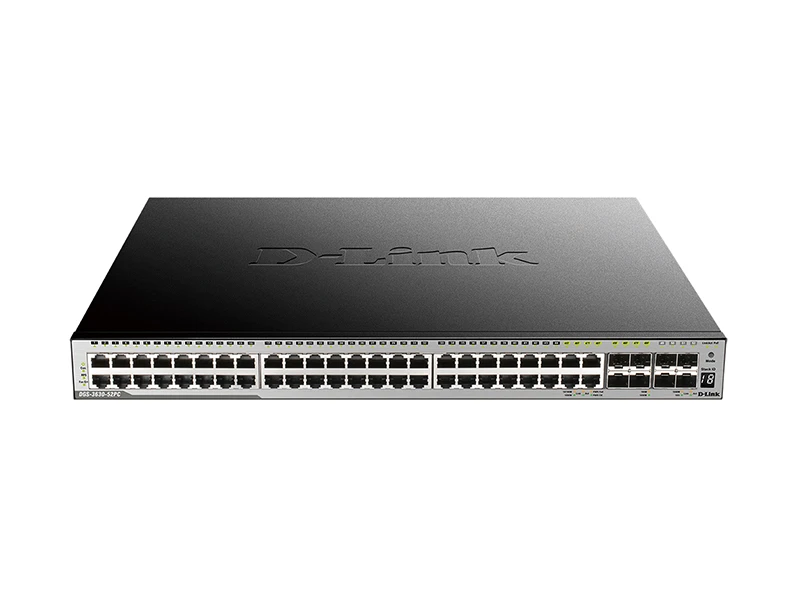

D-Link DGS 3630 52PC PoE Switch
Teknik Özellikler
| Number of Ports |
| • 44 x 10/100/1000Base-T PoE ports |
| • 4 x Combo 10/100/1000Base-T PoE/SFP ports |
| • 4 x 10 GbE SFP+ ports |
| Console Port |
| • RJ-45 and Mini USB console ports for out-of-band CLI management |
| Management Port |
| • 10/100/1000Base-T RJ-45 Ethernet for out-of-band IP management |
| Alarm Port |
| • RJ-45 port |
| USB Port |
| • USB 2.0 Type A port |
| Performance |
| • Switching Capacity: 176 Gbps |
| • Packet Forwarding Rate: 130.95 Mpps |
| • Packet Buffer: 4 MBytes |
| • MAC Address Table: 68K entries* |
| • IPv4 Routing Table: 16K entries |
| • IPv6 Routing Table: 7K entries |
| • IPv4 Forwarding Table: 32K entries* |
| • IPv6 Forwarding Table: 16K entries* |
| • Jumbo Frame Size: 12 KBytes |
| PoE Standards |
| • IEEE 802.3af/at |
| PoE Power Budget |
| • 370 W (740 W with DPS-700 RPS redundant power supply**) |
| Standard Image (SI) Software Features |
| Stackability |
| • Physical Stacking |
| - Up to 80 Gbps stacking bandwidth |
| - Up to 9 switches in a stack |
| - Ring/chain topology support |
| • Virtual Stacking/Clustering of up to 32 units |
| - Supports D-Link Single IP Management |
| - Up to 20 Gbps stacking bandwidth |
| L2 Features |
| • MAC Address Table: up to 68K entries* |
| • Flow Control |
| - 802.3x Flow Control when using Full Duplex |
| - HOL Blocking Prevention |
| • Spanning Tree Protocol |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP |
| - Root Guard |
| - Loop Guard |
| • Jumbo Frame: up to 12 KBytes |
| • 802.1AX Link Aggregation |
| - Max. 32 groups per device, 8 ports per group |
| • ERPS (Ethernet Ring Protection Switching) version 2 |
| • Port Mirroring |
| - Supports One-to-One, Many-to-One, |
| - Supports Mirroring for Tx/Rx/Both |
| - Supports 4 mirroring groups |
| • Flow Mirroring |
| - Supports Mirroring for Rx |
| • VLAN Mirroring |
| • RSPAN |
| • L2 Protocol Tunneling |
| • Multi-Chassis Link Aggregation Group (MLAG)*** |
| VLAN |
| • 802.1Q |
| • 802.1v Protocol-based VLAN |
| • Double VLAN (Q-in-Q) |
| - Port-based Q-in-Q |
| - Selective Q-in-Q |
| • Port-based VLAN |
| • MAC-based VLAN |
| • Subnet-based VLAN |
| • Private VLAN |
| • VLAN Group |
| - Max. 4K VLAN groups |
| - Max. 4094 VIDs |
| • Multicast VLAN (ISM VLAN for IPv4/IPv6) |
| • Voice VLAN |
| • Auto Surveillance VLAN |
| • VLAN Trunking |
| • GVRP: Up to 4K dynamic VLANs |
| • Asymmetric VLAN |
| L2 Multicast |
| • MLD Snooping |
| - MLD v1/v2 Snooping |
| - Supports up to 4K MLD groups |
| - Host-based MLD Snooping Fast Leave |
| - Supports 64 static MLD groups |
| - MLD Snooping Querier |
| - Per VLAN MLD Snooping |
| - MLD Proxy Reporting |
| • IGMP Snooping |
| - IGMP v1/v2/v3 |
| - Supports up to 8K MLD groups* |
| - Supports 64 static IGMP groups* |
| - Per VLAN IGMP Snooping |
| - IGMP Snooping Querier |
| - Host-based IGMP Snooping Fast Leave |
| • PIM Snooping |
| L3 Features |
| • IPv4 ARP/IPv6 ND: support up to 32K/16K* |
| - 512 Static ARP |
| • Gratuitous ARP |
| • IP Interface |
| - Supports 256 interfaces |
| • Loopback Interface |
| • Proxy ARP |
| - Support local ARP proxy |
| • IPv6 Tunneling |
| - Static |
| - ISATAP |
| - GRE |
| - 6to4 |
| • VRRP v2/v3 |
| • IP Helper |
| L3 Routing |
| • Supports 16K hardware routing entries shared by IPv4/IPv6 |
| - 1 entry consumed by each IPv4 route |
| - 2 entries consumed by each IPv6 route |
| • Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv6* |
| - 1 entry consumed by each IPv4 route |
| - 2 entries consumed by each IPv6 route |
| • Static Route |
| - Max. 512 IPv4 entries |
| - Max. 256 IPv6 entries |
| • IPv4/IPv6 Default Route |
| • PBR (Policy-based Route) |
| • Null Route |
| • Route Preference |
| • Route Redistribution |
| • Graceful Restart (GR) Helper |
| • BFD (Bidirectional Forwarding Detection) |
| - IPv4/v6 Static Route |
| - RIP |
| - VRRP |
| • RIPv1/v2/ng |
| L3 Multicast |
| • IGMP/MLD Filtering |
| QoS (Quality of Service) |
| • 802.1p |
| • 8 queues per port |
| • Queue Handling |
| - Strict Priority (SP) |
| - Weighted Round Robin (WRR) |
| - Strict + WRR |
| - Weighted Deficit Round Robin (WDRR) |
| • Congestion Control |
| • Weighted Random Early Detection (WRED) |
| • 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port |
| • Bandwidth Control |
| - Port-based (Ingress/Egress, min. granularity 8 Kb/s) |
| - Flow-based (Ingress/Egress, min. granularity 8 Kb/s) |
| - Per queue bandwidth control (min. granularity 8 Kb/s) |
| • Policy Map |
| - Remark 802.1p priority |
| - Remark IP precedence/DSCP |
| - Time based QoS |
| • CoS based on: |
| - Switch Port |
| - Inner/ outer 802.1p Priority |
| - Inner/ outer VID |
| - MAC address |
| - Ether Type |
| - IP address |
| - ToS/IP Preference |
| - DSCP |
| - Protocol Type |
| - TCP/UDP port |
| - IPv6 Traffic Class |
| - IPv6 Flow Label |
| • Three Color Marker |
| - trTCM |
| - srTCM |
| ACL (Access Control List) |
| • ACL based on: |
| - 802.1p priority |
| - VID |
| - MAC address |
| - EtherType |
| - LLC |
| - VLAN |
| - IP address |
| - IP preference/ToS |
| - DSCP mask |
| - Protocol type |
| - TCP/UDP port number |
| - IPv6 Traffic Class |
| - IPv6 Flow Label |
| • Max. ACL entries: |
| - Ingress (hardware entries): 4K |
| - Egress (hardware entries): 1K |
| - VLAN Access Map Numbers: 3K |
| • Time-based ACL |
| Green |
| • Energy Effeciency Ethernet (EEE) |
| • Power Saving By Link Status |
| • Power Saving By Cable Length |
| • Power Saving By LED Shut-Off |
| • Power Saving By Port Shut-Off |
| • Power Saving By System Hibernation |
| • Time-based PoE |
| Security |
| • Port Security |
| - Supports up to 12K MAC addresses per port/VLAN/system |
| • Broadcast/Multicast/Unicast Storm Control |
| • D-Link Safeguard Engine |
| • DHCP Server Screening |
| • Dynamic ARP Inspection |
| • IP Source Guard |
| • DHCP Snooping |
| • IPv6 Snooping |
| • Dynamic ARP Inspection (DAI) |
| • DHCPv6 Guard |
| • IPv6 Route Advertisement (RA) Guard |
| • IPv6 ND Inspection |
| • Duplicate Address Detection (DAD) |
| • ARP Spoofing Prevention |
| - Max. 64 entries |
| • L3 Control Packet Filtering |
| • Unicast Reverse Path Forwarding (URPF) |
| • Traffic Segmentation |
| • SSL |
| - Supports TLS 1.0/1.1 |
| - Supports IPv4/IPv6 access |
| • SSH |
| - Supports SSH v2 |
| - Supports IPv4/IPv6 access |
| • BPDU Attack Prevention |
| • DOS Attack Prevention |
| • NetBIOS/NetBEUI filtering |
| AAA |
| • 802.1X Authentication |
| - Supports Port/Host-based access control |
| - Identity-driven Policy Assignment |
| - Dynamic VLAN Assignment |
| - Bandwidth Control Assignment |
| - ACL Assignment |
| • Web-based Access Control (WAC) |
| - Supports Port/Host-based access control |
| - Identity-driven Policy Assignment |
| - Dynamic VLAN Assignment |
| - Bandwidth Control Assignment |
| - ACL Assignment |
| - Support IPv4/IPv6 access |
| - Support HTTPS |
| • Compound Authentication |
| • MAC-based Access Control (MAC) |
| - Supports Port/Host-based access control |
| - Identity-driven Policy Assignment |
| - Dynamic VLAN Assignment |
| - Bandwidth Control Assignment |
| - ACL Assignment |
| • Guest VLAN |
| • MicrosoftВ® NAP |
| - Support 802.1X NAP |
| - Support DHCP NAP |
| • Privilege Level for Management Access |
| • RAIDUS and TACACS+ Authentication |
| • Authentication Database Failover |
| • RADIUS/TACACS+ Accounting |
| OAM (Operations, Administration,and Maintenance) |
| • Cable Diagnostics |
| • 802.3ah Ethernet Link OAM |
| • D-Link Unidirectional Link Detection (DULD) |
| • Dying gasp |
| • 802.1ag Connectivity Fault Management (CFM) |
| • Y.1731 OAM |
| • Optical Transceiver Digital Diagnostic Monitoring (DDM) |
| Management |
| • NTPv3/v4 |
| • Precision Time Protocol (PTP) |
| • Web-based GUI |
| - Support IPv4/IPv6 access |
| - Support SSL (HTTPS) |
| • Command Line Interface (CLI) |
| • Telnet Server for IPv4/IPv6 access |
| • Telnet Client for IPv4/IPv6 |
| • SNMP |
| - Support v1/v2c/v3 |
| - Support IPv4/IPv6 access |
| • SNMP Trap |
| • TFTP Client for IPv4/IPv6 |
| • FTP Client for IPv4/IPv6 |
| • IPv4 SFTP Server |
| • RCP |
| • System Log for IPv4/IPv6 Syslog Server |
| • SMTP |
| • RMONv1 |
| - Supports 1,2,3,9 groups |
| • RMONv2 |
| - Supports ProbeConfig group |
| • Command Logging |
| • LLDP/LLDP-MED |
| • D-Link Discover Protocol (DDP) |
| • DHCP Client option 12 |
| • DHCP Auto-configuration |
| • DHCP Auto-image |
| • DHCP Relay option 60/61/62/18/37/125 |
| • DHCP/DHCPv6 Local Relay |
| • DHCP Server |
| - Support IPv4/IPv6 address assignment |
| • DHCPv6 Prefix Delegation (PD) |
| • Multiple Images/ Multiple Configurations |
| • DNS Relay for IPv4/IPv6 |
| • DNS Client for IPv4/IPv6 |
| • Debug Command |
| • Password Recovery/ Encryption |
| • Ping/ Traceroute for IPv4/IPv6 |
| • MicrosoftВ® Network Load Balancing (NLB) |
| • Switch Resource Management (SRM) |
| • sFlow |
| • D-Link License Management System (DLMS) |
| • PD Alive |
| Additional Enhanced Image (EI) Features |
| VLAN |
| • Super VLAN |
| L3 Routing |
| • BGP |
| - BGPv4/v4+ |
| - 4bytes AS |
| - Text/MD5 for BGPv4 |
| • VRF-Lite |
| - IPv4 Static Route |
| - RIPv1/v2 |
| - OSPFv2 |
| - BGPv4 |
| • Bidirectional Forwarding Detection (BFD) for OSPF |
| • OSPF |
| - OSPF v2/v3 |
| - OSPF passive interface |
| - Stub/NSSA area |
| - OSPF equal cost route |
| - Text/MD5 for OSPFv2 |
| L3 Multicast |
| • IGMPv1/v2/v3 |
| • MLDv1/v2 |
| • IGMP/MLD Proxy |
| • DVMRPv3 |
| • PIM SDM (Sparse-Dense Mode)/SSM |
| • PIM-SM/DM for IPv4/IPv6 |
| • SSM Mapping for IPv4/IPv6 |
| • Multicast Source Discovery Protocol (MSDP) |
| Additional MPLS Image (MI) Features |
| L3 Routing |
| • IS-IS v4/v6 |
| MPLS |
| • Label Distribution Protocol (LDP) |
| • PHP (Penultimate hop popping ) |
| • Virtual Private Wire Service (VPWS) |
| • Virtual Private LAN Service (VPLS) |
| • BGP/MPLS VPN |
| • Multiprotocol extensions for BGP4 |
| • Virtual Routing Forwarding (VRF) |
| • LSP/VCCV/MPLS Ping/Traceroute |
| MIB/IETF Standards |
| • RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure |
| • RFC1212 Concise MIB Definitions |
| • RFC1213 MIBII |
| • RFC1215 MIB Traps Convention |
| • RFC1493, RFC4188 Bridge MIB |
| • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB |
| • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB |
| • RFC271, RFC1757, RFC2819 RMON MIB |
| • RFC2021 RMONv2 MIB |
| • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Ether-like MIB |
| • RFC2668 802.3 MAU MIB |
| • RFC2674, RFC4363 802.1p MIB |
| • Interface Group MIB |
| • RFC2618 RADIUS Authentication Client MIB |
| • RFC4022 MIB for TCP |
| • RFC4113 MIB for UDP |
| • RFC2620 RADIUS Accounting Client MIB |
| • RFC2925 Ping & TRACEROUTE MIB |
| • TFTP uploads and downloads (D-Link MIB) |
| • Trap MIB (D-Link MIB) |
| • RFC4293 IPv6 MIB |
| • RFC4293 ICMPv6 MIB |
| • Entity MIB |
| • RIPv2 MIB |
| • OSPF MIB |
| • IPv4 Multicast Routing MIB |
| • PIM MIB for IPv4 |
| • IP Forwarding Table MIB |
| • RFC4293 IPv6 SNMP Mgmt Interface MIB |
| • DDM MIB (D-Link MIB) |
| • Private MIB |
| • MIB for D-Link Zone Defense |
| • DDP MIB |
| • LLDP-MED MIB |
| • RFC791 IP |
| • RFC768 UDP |
| • RFC793 TCP |
| • RFC792 ICMPv4 |
| • RFC2463, RFC4443 ICMPv6 |
| • RFC826 ARP |
| • RFC1338, RFC1519 CIDR |
| • RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers |
| • RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP) |
| • RFC2571 SNMP Framework |
| • RFC2572 SNMP Message Processing and Dispatching |
| • RFC2573 SNMP Applications |
| • RFC2574 User-based Security Model for SNMPv3 |
| • RFC1981 Path MTU Discovery for IPv6 |
| • RFC2460 IPv6 |
| • RFC2461, RFC4861 Neighbor Discovery for IPv6 |
| • RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration |
| • RFC2464 IPv6 over Ethernet and definition |
| • RFC2767 Dual Stack Hosts using the вЂ˜Bump-In-the-Stack’ Technology |
| • RFC3513, RFC4291 IPv6 Addressing Architecture |
| • RFC2893, RFC4213 IPv4/IPv6 dual stack function |
| • RFC3484 Default Address Selection for Internet Protocol version 6 |
| • PoE MIB |
| • RFC3621 Power Ethernet MIB |
| Physical |
| MTBF |
| • 199,929.76 hours |
| Acoustics |
| • 51.9 dB(A) |
| Heat Dissipation |
| • 1653.85 BTU/h |
| Power Input |
| • 100 to 240 VAC 50/60 Hz |
| Maximum Power Consumption |
| • PoE off: 54.1 W |
| • PoE on: 485 W |
| Standby Power Consumption |
| • 44.6 W |
| Dimensions |
| • 441 x 380 x 44 mm |
| Weight |
| • 6.3 kg |
| Ventilation |
| • 4 x smart fans**** |
| Operating Temperature |
| • -5 to 50 В°C |
| Storage Temperature |
| • -40 to 70 В°C |
| Operating Humidity |
| • 10% to 95% RH |
| Storage Humidity |
| • 5% to 95% RH |
| Surge Protection |
| • 6 kV surge protection on all Ethernet access ports |
| Safety Certifications |
| • cUL, CB, CE, CCC, BSMI |
| EMI/EMC |
| • CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
Teknik Kısa
PoE : PoE
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 3
Aktarım Port Sayısı : 8
Aktarım Türü : Combo
PoE Port Sayısı :
44 Port
44 Port PoE Güç Bütçesi : 400-800 Watt
Aktarım Türü : 10Gbit Fiber
