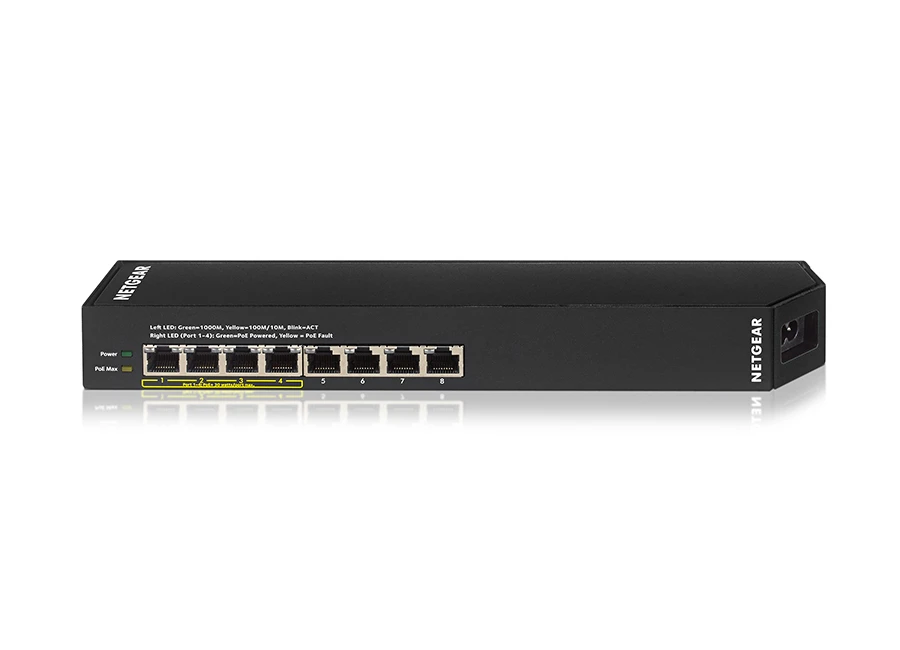

Netgear GSS108EPP PoE Switch
Özellikler
Hardware
- "Virtually Anywhere" Click Mounting system allows for:
- Vertical/side mount
- Vertical/rear mount
- Horizontal/side mount
- Horizontal/rear mount
- Multi-directional power cable can be routed outwards or downwards
- Internal power supply (simple power cord from switch to outlet)
- LED lights can be turned off for non-distracting placement next to a TV
- Fanless for silent operation
- 2 Quick access USB charging ports for tablets or smartphones (GSS108E only)
- 4 PoE PoE ports with 47W PoE Budget (GSS108EPP only)
Traffic Management
- Auto-negotiation of speed and duplex modes
- 802.3x Flow Control
- DHCP clientDynamic MAC address management
- IEEE 802.1Q-based or port-based VLAN
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 802.1p-based QoS
- QoS based on ToS (Type-of-Service)
- DSCP support
- Rate limiting
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP snooping querier (16 port model only)
- Blocking of unknown multicast traffic
- Act as static multicast router port
Link Aggregation (GSS116 and GSS108EPP only)
- Manual Static LAGs
- 2 LAGs with max 4 members in each LAG
- 2 LAGs with max 8 members in each LAG
- Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast storm control
- Cable diagnostics
- Loop detection
- DoS prevention (GSS108EPP and GSS116E only)
- Energy Efficient Ethernet (IEEE 802.3az) compliant
Switch Management
- Advanced configuration and management using web browser-based GUI
- Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
- Firmware Upgrade through ProSAFE Plus Utility (TFTP)
- Configuration upload (to Server)
- System password protection
Teknik Özellikler
| Model Description | 8-port Gigabit Click Switch w/4-port PoE+ |
| Gigabit Ports | 8 |
| USB Charging Ports | N/A |
| PoE/PoE+ Ports / PoE Budget | 4 PoE/PoE+, 47W total power |
| Max MAC entries | 4K |
| Buffer Size | 192KB |
| VLAN (# supported) | 64 |
| Link Aggregation / Port Trunking | Manual Static LAG |
| Number of LAGs & Number of Members | 2 LAGs with max 4 members in each LAG |
| Number of priority queues | 4 |
| Supported Multicast Groups | 128 |
| Auto Denial-of-Service Prevention | Yes |
| Port Mirroring Max Number of Source Ports Allowed (Many to 1) | 1 |
| Jumbo Frame Support | up to 9K packets |
| Power Supply | Internal: 100-240VAC, 50-60Hz, 2A max (power cord localized to country of sale) |
| LED Lights Off for Stealth Operation | Yes |
| Internal/External Power Supply | Internal |
| Max power consumption (Watts) | 5.31W (no PoE) 57.4W (with PoE max) |
| Number of Fans | 0 - Fanless |
| Acoustic noise level @ 25° C (dBA) | Fanless - 0 dBA |
| Case Material | Metal |
| MTBF (hours) | 1,494,913 hours |
| Electromagnetic Compliance (A or B) | B |
| Operating temperature | ° to 40°C (32° to 104°F) |
| Dimensions (W x D x H) | 305 x 65 x 35 mm (12.0 x 2.6 x 1.4 in) |
| Weight | 0.93 kg (2.05 lb) |
Teknik Kısa
PoE : Hibrid
Yönetilebilirlik : Yönetilebilir
PoE Port Sayısı :
4 Port
4 Port PoE Güç Bütçesi : 0-50 Watt
