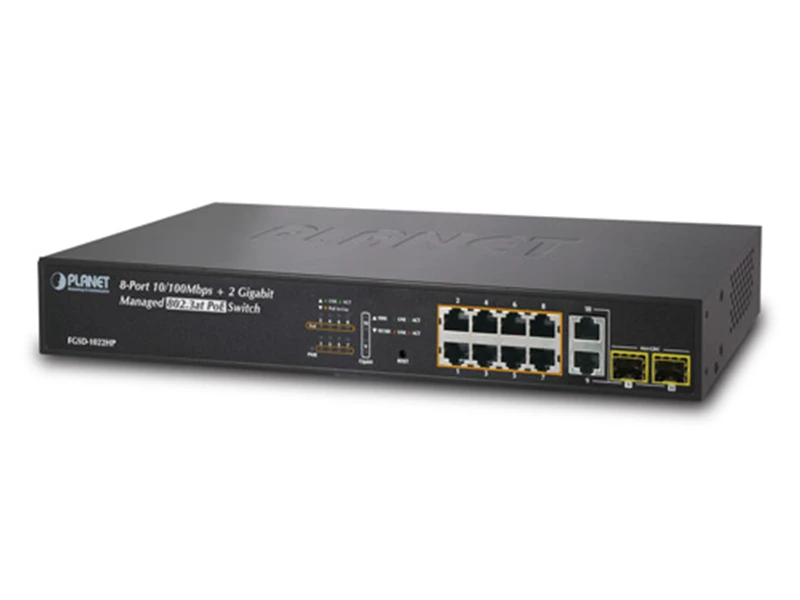

Planet FGSD 1022HP 10/100 PoE Switch

Teknik Özellikler

Donanım Özellikleri
Donanım Versiyonu	2
10/100Mbps Bakır Port	8 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports
1000Mbps Bakır Port	2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slot	2 1000Base-SX/LX/BX, shared with Port-9~Port-10
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps / non-blocking
Switch Throughput	4.16Mpps @64Bytes
Adres Tablosu	8K entries
Data Aktarım Hızı	2 Mbits
Maximum Frame Size	9K Bytes
Akış Kontrölü	Back pressure for Half-Duplex
Akış Kontrölü	IEEE 802.3x Pause Frame for Full-Duplex
LED	System: Power
	10/100 PoE Port : Link/Activity (Green), PoE In-Use (Amber)
	Gigabit Port: 1000 LNK / ACT(Green), 10/100 LNK / ACT(Amber)
Reset Button	< 5 secs: System reboot
Reset Button	> 10 secs: Factory Default
Ölçüler (W x D x H)	330 x 155 x 43.5 mm
Ağırlık	1.74Kg
Güç Gereksinimi	100 - 240VAC, 50 - 60Hz, Auto-sensing
Güç Tüketimi	200W / 686.2BTU
Power over Ethernet
PoE Standartı	IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 56V DC, 350mA . Max. 15.4 Watts (IEEE 802.3af)
PoE Power Output	Per Port 56V DC, 590mA. Max. 30 Watts (IEEE 802.3at)
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	150 Watts
Max. number of Class 2 PD	8
Max. number of Class 3 PD	8
Max. number of Class 4 PD	5
Layer 2 Fonksiyonu
Yönetim Arayüzü	Console, Telnet, Web Browser, SSL, SNMPv1, v2c, v3
Port Konfigürasyonu	Port disable/enable
	Auto-negotiation
	10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
	Port Description
Port Durumu	Display each port’s speed duplex mode, link status and Flow control status
Port Durumu	Auto negotiation status, trunk status
Port Mirroring	TX / RX / Both
Port Mirroring	1 to 1 monitor
Band Genişliği	Ingress / Egress Rate Control
Band Genişliği	•Allow to configure per 128Kbps
VLAN	IEEE 802.1Q Tag-Based VLAN, up to 255 VLANs groups, out of 4041 VLAN IDs
	Port-Based VLAN
	Q-in-Q tunneling
	GVRP for VLAN Management, up to 128 dynamic VLAN entries
	Private VLAN Edge (PVE / Protected port) with two protected port groups
Link Aggregation	Static Port Trunk
	IEEE 802.3ad LACP (Link Aggregation Control Protocol)
	13 groups of 8-Port trunk support
QoS	4 priority queue
	Traffic classification based on:
	-Port priority
	-802.1p priority
	-DSCP/TOS field in IP Packet
IGMP Snooping	IGMP (v1/v2) Snooping, up to 256 multicast Groups
Erişim Kontrol Listesi	IP-Based Layer 3 / Layer 4 ACL
Erişim Kontrol Listesi	Up to 200 ACL rule entries
802.1X Port Access Control	Supporting EAP-MD5, EAP-TLS and EAP-PEAP authentication types
SNMP MIBs	RFC-1213 MIB-II
	RFC-2863 Interface MIB
	RFC-2665 EtherLike MIB
	RFC-1493 Bridge MIB
	RFC-2819 RMON MIB (Group 1, 2, 3,9)
	RFC-2737 Entity MIB
	POWER-ETHERNET-MIB
Standart Uygunluğu
Standards Compliance	IEEE 802.3: 10Base-T
	IEEE 802.3u: 100Base-TX
	IEEE 802.3z: 1000Base-SX/LX
	IEEE 802.3ab: 1000Base-T
	IEEE 802.3x: Flow Control and Back pressure
	IEEE 802.3ad: Port trunk with LACP
	IEEE 802.1D: Spanning Tree Protocol
	IEEE 802.1s: Multiple Spanning Tree Protocol
	IEEE 802.1p: Class of Service
	IEEE 802.1Q: VLAN Tagging
	IEEE 802.1x: Port Authentication Network Control
	IEEE 802.3af: Power over Ethernet
	IEEE 802.3at: Power over Ethernet (Pre-Standard)
	RFC 768: UDP
	RFC 783: TFTP
	RFC 791: IP
	RFC 792: ICMP
	RFC 854: Telnet
	RFC 2068: HTTP
	RFC 1112: IGMP version 1
	RFC 1157: SNMPv1
	RFC 1305: NTP
	RFC 1902: SNMPv2c
	RFC 2138: RADIUS
	RFC 2236: IGMP version 2
	RFC 2576: SNMPv3
	RFC 5424: Syslog
Çevresel Özellikler
Çalışma	Sıcaklık: 0 ~ 50 Degree C
Çalışma	Nem Oranı: 20 ~ 95%
Saklama	Sıcaklık: -10 ~ 70 Degree C
Saklama	Nem Oranı: 20 ~ 95% (non-condensing)
