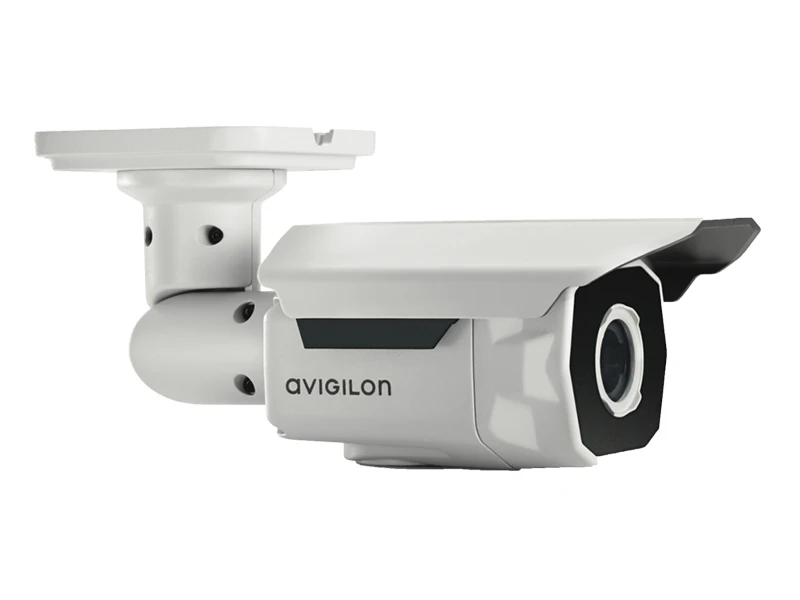

Avigilon 2.0C H3A BO2 IR IP HD Bullet Kamera
Özellikler
Teknik Özellikler
| IMAGE PERFORMANCE | |
| Image Sensor | WDR 1/3” progressive scan CMOS |
| Active Pixels | 1280 (H) x 720 (V) |
| Imaging Area | 4.2 mm (H) x 2.4 mm (V); 0.165”(H) x 0.094”(V) |
| Illuminator Technology | High-power IR LEDs |
| IR Illumination | 850 nm wavelength, 60 m (200 ft) max. distance of IR illumination at 0 lux |
| Minimum Illumination | 0.4 lux (F1.6) in color mode, 0 lux in monochrome mode with IR |
| Dynamic Range | 100 dB |
| Image Rate | 30 (all resolutions) |
| LENS | |
| Lens | 9-22 mm, F1.6, P-Iris, remote focus and zoom |
| Angle of View 9-22 mm lens: | 11° - 26° |
| IMAGE CONTROL | |
| Image Compression Method | H.264 (MPEG-4 Part 10/AVC), Motion JPEG |
| Streaming | Multi-stream H.264 and Motion JPEG |
| Motion Detection | Selectable sensitivity and threshold |
| Electronic Shutter Control | Automatic, Manual (1/6 to 1/8000 sec) |
| Iris Control | Automatic, Manual |
| Day/Night Control | Automatic, Manual |
| Flicker Control | 50 Hz, 60 Hz |
| White Balance | Automatic, Manual |
| Backlight Compensation | Adjustable |
| Privacy Zones | Up to 64 zones |
| Audio Compression Method | G.711 PCM 8 kHz |
| Audio Input/Output | Line level input and output, A/V mini-jack (3.5 mm) |
| External I/O Terminals | Alarm In, Alarm Out |
| NETWORK | |
| Network | 100BASE-TX |
| Cabling Type | CAT5 |
| Connector | RJ-45 |
| API | ONVIF compliance version 1.02, 2.00, Profile S (www.onvif.org) |
| Security | Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based authentication |
| Protocol | IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP,UDP, IGMP, ICMP, DHCP, Zeroconf, ARP |
| Streaming Protocols | RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP |
| MECHANICAL | |
| Dimensions (LxWxH) | 241.7 mm x 95.0 mm x 70 mm; 9.5” x 3.7” x 2.8” |
| Weight | 1.15 kg (2.5 lbs) |
| Body | Aluminum |
| Housing | Surface mount, tamper resistant |
| Finish | Powder coat, cool gray 2 |
| Adjustment Range | ±175° pan, -45° to +90° tilt, ±175° azimuth |
| Onboard Storage | SD/SDHC/SDXC slot – minimum class 4; class 6 or better recommended |
| ELECTRICAL | |
| Power Consumption | 22 W with external power , 12.95 W with IEEE 802.3af Class PoE |
| Power Source | VDC: 12 V +/- 10%, 22 W min, PoE: IEEE802.3af Class 3 compliant |
| RTC Backup Battery | 3V Manganese Lithium |
| ENVIRONMENTAL | |
| Operating Temperature | -40 °C to +50 °C (-40 °F to 122 °F) |
| Storage Temperature | -10 °C to +70 °C (14 °F to 158 °F) |
| Humidity | 0 - 95% non-condensing |
| CERTIFICATIONS | |
| Certifications/Directives | UL cUL CE ROHS WEEE RCM EAC |
| Safety | UL 60950-1 CSA 60950-1 IEC/EN 60950-1 IEC 62471 |
| Environmental | IK10 Impact Rating UL/CSA/IEC 60950-22 IEC 60529 IP66 Rating |
| Electromagnetic Emissions | FCC Part 15 Subpart B Class B IC ICES-003 Class B EN 55022 Class B EN 61000-6-3 EN 61000-3-2 EN 61000-3-3 |
| Electromagnetic Immunity | EN 55024 EN 61000-6-1 |
Avigilon 2.0C H3A BO2 IR IP HD Bullet Kamera PDF Dosyası644.33 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
