Açıklama

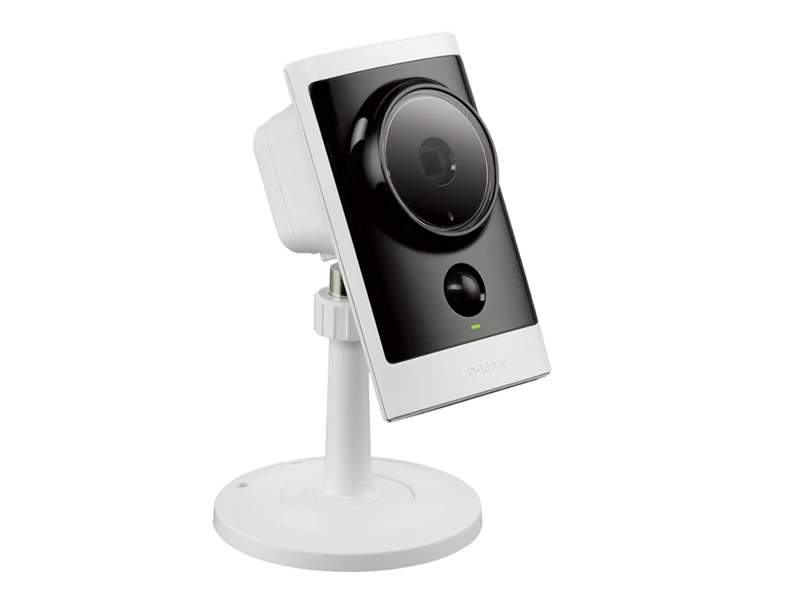

D-Link DCS 2310L IP HD Küp Kamera
Teknik Özellikler
| Camera |
| Camera Hardware Profile |
| 1/4” 1 Megapixel progressive scan CMOS sensor |
| 5 metre IR illumination distance |
| Minimum illumination: |
| 1.0 lux / F2.0 (colour) |
| 0.5 lux / F2.0 (B&W) |
| 0 lux (IR LED on) |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| Built-in PIR sensor (5 metre) |
| Built-in microphone |
| 10x digital zoom |
| Exposure time: 1/7.5 to 1/10,000 sec. |
| Focal length: 3.45 mm |
| Aperture: F2.0 |
| Minimum object distance: 500 mm |
| Angle of view: |
| (H) 60° |
| (V) 36° |
| (D) 70° |
| Camera Housing |
| IP-65 compliant weatherproof housing |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable privacy mask zones |
| Configurable shutter speed, brightness, saturation, contrast, and sharpness |
| Video Compression |
| Simultaneous H.264/MJPEG format compression |
| H.264 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps1 |
| 4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps1 |
| Audio Support |
| AAC |
| G.711 |
| External Device Interfaces |
| 10/100 BASE-TX Fast Ethernet port |
| Supports 802.3af PoE Class 2 |
| microSD card slot2 |
| Network |
| Network Protocols |
| IPv6 |
| IPv4 |
| ARP |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| HTTP / HTTPS |
| Samba client |
| PPPoE |
| UPnP |
| UPnP port forwarding |
| RTP/RTSP/RTCP |
| IP filtering |
| QoS |
| CoS |
| DSCP |
| Multicast |
| IGMP |
| ONVIF compliant |
| Bonjour |
| SNMP v1, v2c, v3 |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
Fiziksel Özellikler
Weight 132 g ± 5% (0.29 lbs) Power 5 V DC, 1.2 A through external power adapter or PoE connection External Power Adapter Input: 100 to 240 V AC, 50/60 Hz Power Consumption 5.5 watts max. ± 5% Temperature Operating: -25 to 45 °C (-13 to 113 °F) Storage: -20 to 70 °C (-4 to 158 °F) Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing Certifications CE CE LVD FCC C-Tick IP-65 Dimensions 146.8 x 82 x 95.5 mm
Teknik Kısa
Çözünürlük : 1MP (720P)
Irled : Var
