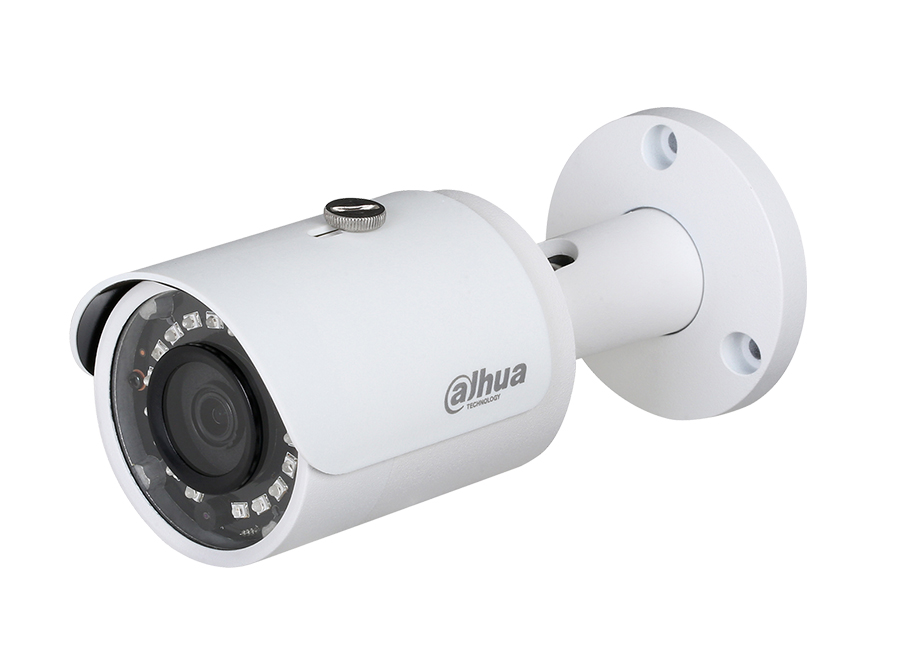

Dahua IPC HFW1120S IP Mini Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/3” 1.3Megapixel progresive CMOS | ||||
| Effective Pixels | 1280(H) x960(V) | ||||
| RAM/ROM | 256MB/16MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3(4)-1/100000s | ||||
| Minimum Illumination | 0.5Lux/F2.5(Color),
0Lux/F2.5(IR on) | ||||
| S/N Ratio | More than 50dB | ||||
| IR Distance | Distance up to 30m(98ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 18 | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.8 mm (3.6 mm optional) | ||||
| Max. Aperture | F2.5/F2.5 | ||||
| Angle of View | H:97.5°/73.5°, V:71°/53° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | N/A | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 44m(144ft) | 17m(56ft) | 9m(30ft) | 4m(13ft) | |
| 3.6 mm | 35m(115ft) | 14m(46ft) | 7m(23ft) | 4m(13ft) | |
| PTZ | |||||
| Pan/Tilt Range | Pan:0° -360° ;Tilt:0° -90° ;Rotation:0° -360° | ||||
| Video | |||||
| Compression | H.264+/H.264 | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | ||||
| Frame Rate | 1.3M (1 - 25/30fps) | ||||
| D1/CIF(1 - 25/30fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H264:24K - 8192Kbps | ||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / DWDR | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image | Support | ||||
| Smart IR | Support | ||||
| Digital Zoom | 16x | ||||
| Flip | °/90°/180°/270° | ||||
| Mirror | Off / On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | N/A | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF, PSIA, CGI | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 10 Users/20 Users | ||||
| Edge Storage | NAS(Network Attached Storage) | ||||
| Local PC for instant recording | |||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS,Easy4ip | ||||
| Smart Phone | iPhone, iPad, Android Phone | ||||
| Certifications | |||||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B | ||||
| Interface | |||||
| Video Interface | N/A | ||||
| Audio Interface | N/A | ||||
| RS485 | N/A | ||||
| Alarm | N/A | ||||
| Electrical | |||||
| Power Supply | DC12V PoE (802.3af)(Class 0) | ||||
| Power Consumption | <6.8w td=""> | ||||
| Environmental | |||||
| Operating Conditions | -30° C - +60° C (-22° F - +140° F) /Less than 95% RH | ||||
| Strorage Conditions | -30° C - +60° C (-22° F - +140° F) /Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | N/A | ||||
| Construction | |||||
| Casing | Metal+Plastic | ||||
| Dimensions | Φ70mm×164.7mm(2.76'x6.49') | ||||
| Net Weight | 0.38Kg(0.84lb) | ||||
| Gross Weight | 0.44Kg(0.97lb) | ||||
Dahua IPC HFW1120S IP Mini Bullet Kamera Pdf Dosyası865.67 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1.3MP
Irled : Var
