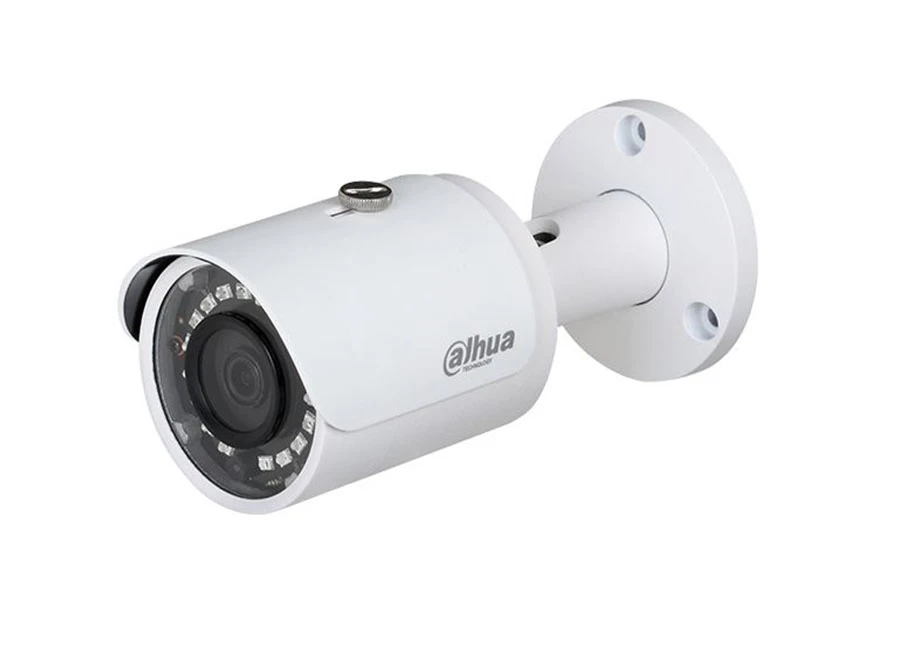

Dahua IPC HFW1230SP IR IP Bullet Kamera

Özellikler

1/2.7” 2Megapixel progressive CMOS
H.265& H.264 dual-stream encoding
25/30fps@1080P(1920×1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6mm optional)
Max IR LEDs Length 30m
IP67, PoE

Teknik Özellikler

Camera
Image Sensor	1/2.7” 2Megapixel progresive CMOS
Effective Pixels	1920(H) x1080(V)
RAM/ROM	256MB/32MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.08Lux/F2.0( Color,1/3s,30IRE)
	0.3Lux/F2.0( Color,1/30s,30IRE)
	0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/ Manual
IR LEDs	18
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8 mm (3.6 mm optional)
Max. Aperture	F2.0/F2.0
Angle of View	H:104°/92°,V:55°/50°
Focus Control	Fixed
Close Focus Distance	0.6m(0.9m)
DORI Distance	Lens	Detect	Recognize	Identify
	2.8 mm	40(131ft)	8(26ft)	4(13ft)
	3.6 mm	53(174ft)	11(36ft)	5(16ft)
PTZ
Pan/Tilt Range	Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger	Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS	Tripwire, Intrusion
Video
Compression	H.265/H.264H/MJPEG(Sub Stream)
Smart Codec	Support H.265+/H.264+
Streaming Capability	2 Streams
Resolution	1080P(1920×1080)/1.3M(1280×960)/
	720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 1080P(1 ~ 25/30fps)
	Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 12K ~ 6400Kbps
	H.264: 32K ~ 10240Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image	Support
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
	FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
	NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
	TLS
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users / 20 Users
Edge Storage	NAS
	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000)
	UL:UL60950-1
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<5.5W
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal+Plastic
Dimensions	Φ70mm×164.7mm(2.76''x6.49'')
Net Weight	0.38Kg(0.84lb)
Gross Weight	0.44Kg(0.97lb)
