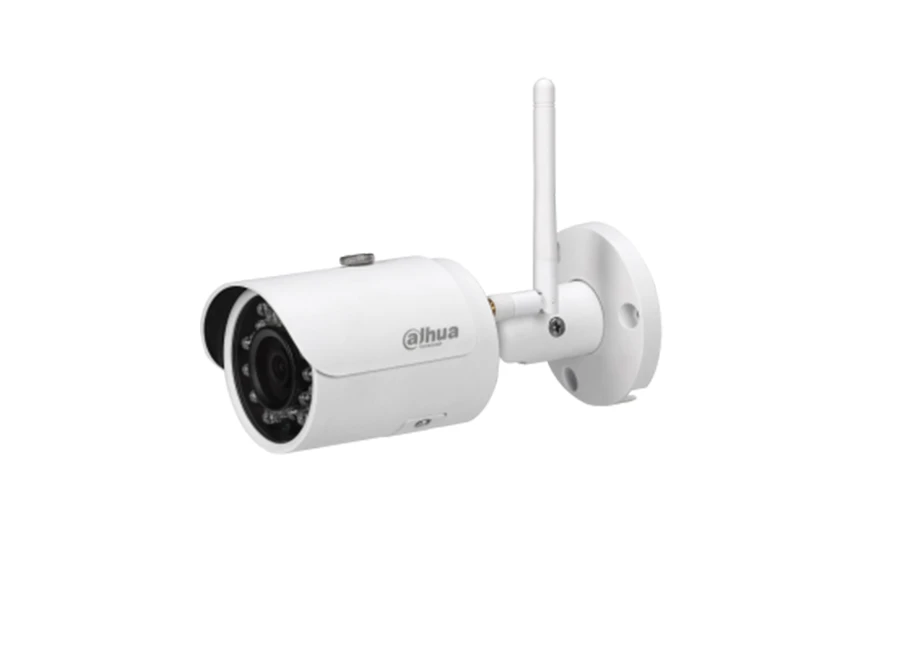

Dahua IPC HFW1235S W IR IP Mini Bullet Kamera

Özellikler

1/2.9” 2Megapixel progressive CMOS
H.265 & H.264 dual-stream encoding
25/30fps@1080P
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6 mm optional)
Maximum IR LEDs Length 30m
IP67
Wi-Fi support

Teknik Özellikler

Camera
Image Sensor	1/2.9” 2Megapixel progresive CMOS
Effective Pixels	1920(H)x1080(V)
RAM/ROM	256MB/16MB
Scanning System	Progressive
Minimum Illumination	0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/ Manual
IR LEDs	24
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8 mm (3.6 mm optional)
Max. Aperture	F2.0/F2.0
Angle of View	H:106°/83°, V:56°/44°
Focus Control	Fixed
Close Focus Distance	N/A
PTZ
Pan/Tilt Range	Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression	H.265 / H.264H / MJPEG (Sub Stream)
Streaming Capability	2 Streams
Resolution	1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/
Resolution	CIF(352×288/352×240)
Frame Rate	2M (1 ~ 25/30fps)
Frame Rate	D1/CIF(1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H265:12K ~ 8448Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image	Support
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
	DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
	Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS(Network Attached Storage)
Edge Storage	Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS,Easy4ip
Smart Phone	iPhone, iPad, Android Phone
Certifications
Certifications	CE (EN 60950:2000)
	UL:UL60950-1
	FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V PoE (802.3af)(Class 0)
Power Consumption	<7.5W
Environmental
Operating Conditions	-10° C ~ +50° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-10° C ~ +50° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal+Plastic
Dimensions	Φ70mm×164.7mm(2.76'x6.49')
Net Weight	0.43Kg(0.84lb)
Gross Weight	0.52Kg(0.97lb)
