Açıklama

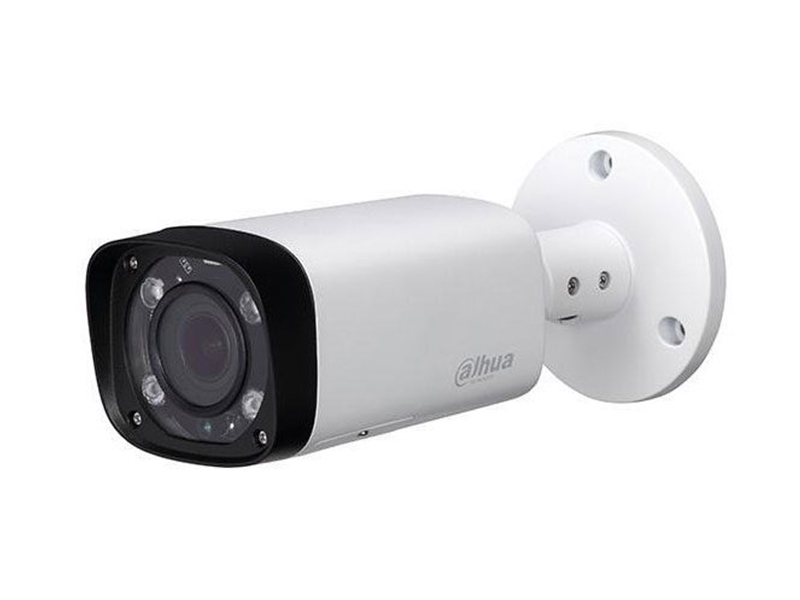

Dahua IPC HFW2421R ZS/VFS IRE6 IP Bullet Kamera

Özellikler

1/3” 4Megapixel progressive CMOS
H.264+ & H.264 dual-stream encoding
20fps@4M(2688x1520) & 25/30fps@3M (2304×1296)
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Micro SD card slot, up to 128GB
2.7~12mm varifocal lens
Max IR LEDs Length 60m
IP67, PoE

Teknik Özellikler

Camera
Image Sensor	1/3” 4Megapixel progressive CMOS
Effective Pixels	2688(H) x1520(V)
RAM/ROM	256M/16M
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)-1/100000s
Minimum Illumination	0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 60m(197ft)
IR On/Off Control	Auto/ Manual
IR LEDs	4
Lens
Lens Type	Motorized(-ZS),Manual(-VFS)
Mount Type	Board-in
Focal Length	2.7mm-12mm
Max. Aperture	F1.4
Angle of View	H:100°-35°, V:54°-20°
Focus Control	Auto (-ZS),Fixed(-VFS)
Close Focus Distance	0.3m
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	68m(223ft)	27m(89ft)	14m(49ft)	7m(23ft)
	T	193m(633ft)	77m(253ft)	39m(128ft)	19m(62ft)
PTZ
Pan/Tilt Range	Pan:0° -360 ° ;Tilt:0° -90° ;Rotation:0° -360°
Video
Compression	H.264+/H.264
Streaming Capability	2 Streams
Resolution	4M(2688×1520)/3M(2304×1296)/ 1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate	4M(1-20fps)/3M(1-25/30fps) D1/CIF(1 - 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H264:24K - 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	N/A
Smart IR	Support
Digital Zoom	16x
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/ v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS(Network Attached Storage)
	Local PC for instant recording
	Micro SD Card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS,Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V PoE (802.3af)(Class 0)
Power Consumption	<12.95w td="">
Environmental
Operating Conditions	-30° C - +60° C (-22° F - +140° F)/ Less than 95% RH
Strorage Conditions	-30° C - +60° C (-22° F - +140° F) /Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal
Dimensions	72mm×80mm×212.8mm((2.8" x 3.1"x 8.4"))
Net Weight	0.685Kg (1.51lb)
Gross Weight	0.86Kg (1.90lb)
