Açıklama

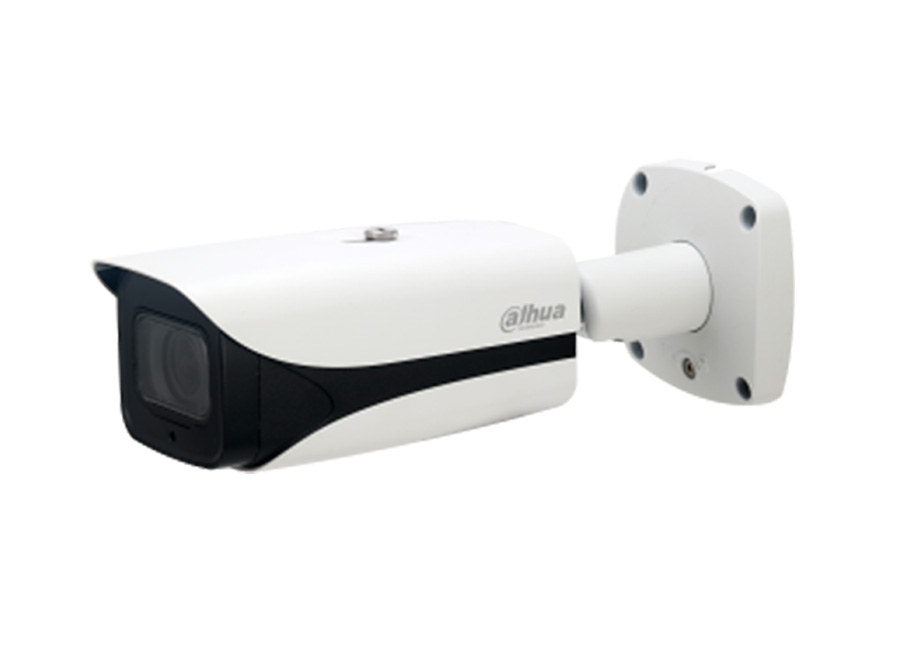

Dahua IPC HFW5442E Z4E IR IP Bullet Kamera

Özellikler

1/1.8” 4Megapixel progressive scan CMOS
H.265 & H.264 triple-stream encoding
25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)
WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
8 mm–32 mm motorized lens
2/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 120 m
Micro SD memory, IP67, IK10

Teknik Özellikler

Camera
Image Sensor	1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels	2688 (H) x 1520 (V)
RAM/ROM	1 GB/128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3 s–1/100000 s
Minimum Illumination	0.0006 Lux@F1.6
IR Distance	Distance up to 120 m (394 ft)
IR On/Off Control	Auto/ Manual
IR LEDs	4
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	8 mm–32 mm
Max. Aperture	F1.6
Angle of View	H: 43°–15°, V:23°–8°
Optical Zoom	4x
Aperture Type	Auto (HALL)
Close Focus Distance	2.5 m–6.0 m (8.20 ft–19.69 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	151m(495ft)	60.7m(199ft)	30.3m(99ft)	15.1m(49ft)
	T	400m(1312ft)	160m(525ft)	80m(262ft)	40m(131ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚–360˚; Tilt:0˚–90˚; Rotation:0˚–360˚
Artificial Intelligence
Face Capture	Support face image capture
Face Attributes	Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard
Perimeter Protection	Tripwire, Intrusion (Human & Vehicle classification)
People Counting	Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence	Object Abandoned/Missing
Video
Compression	H.265+, H.265, H.264+, H.264, H.264B, H.264H,
	MJPEG (sub stream
Streaming Capability	3 Streams
Resolution	2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame Rate	Main Stream: 2688 × 1520 (1 fps–25/30 fps)
	2560 × 1440 (1 fps–25/30 fps)
	1920 × 1080 (1 fps–50/60 fps)
	Sub Stream: D1 (1 fps–25/30 fps)
	D1 (1 fps–50/60 fps)
	Third Stream: 1080P (1 fps–16 fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 Kbps– 8192 Kbps
	H.265: 19 Kbps– 8192 Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (140 dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	Support
Smart IR	Support
Defog	Support
Digital Zoom	N/A
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a, G.711Mu, AAC, G.726, G.723
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP,
	FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS,
	UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x
Interoperability	ONVIF(Profile S/Profile G), CGI, Milstone, Genetec, P2P
Streaming Method	Unicast / Multicast
Max. User Access	20 Users
Edge Storage	NAS
	FTP
	Micro SD card 256 GB
Web Viewer	IE (versions newer than IE8), Chrome,
	Firefox, Safari (versions newer than Safari 12)
Management Software	Smart PSS, DSS, P2P
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD: EN60950-1
	CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	2 channel In: 5mA 5V DC
	1 channel Out: 300mA 12V DC
Electrical
Power Supply	DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption	<10.9W
Environmental
Operating Conditions	-30° C to +60° C (-22° F to +140° F)/10%RH–95%RH
Strorage Conditions	-30° C to +60° C (-22° F to +140° F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal, plastic
Dimensions	273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”)
Net Weight	1.11 Kg (2.44 lb)
Gross Weight	1.51 Kg (3.33 lb)
