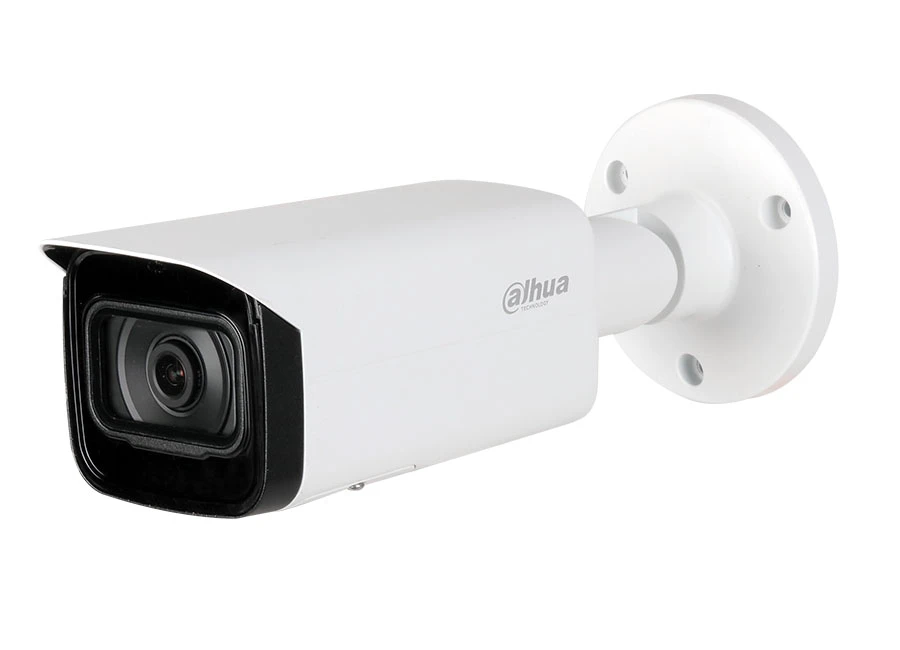

Dahua IPC HFW5442T ASE IR IP Bullet Kamera

Özellikler

1/1.8” 4Megapixel progressive scan STARVIS™ CMOS
H.265&H.264 triple-stream encoding
25/30fps@4Mp(2688×1520)
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8mm fixed lens (3.6mm, 6mm optional)
1/1 Alarm in/out, 1/1 audio in/out
Max. IR LEDs Length 55m
Micro SD memory, IP67

Teknik Özellikler

Camera
Image Sensor	1/1.8” 4Megapixel progressive scan CMOS
Effective Pixels	2688(H) x 1520(V)
RAM/ROM	512MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.001653Lux/F1.6 ( Color,1/3s,30IRE)
	0.01482Lux/F1.6 ( Color,1/30s,30IRE)
LED Distance	2.8mm:Distance up to 8m (26ft)
	3.6mm:Distance up to 11m (36ft)
	6mm:Distance up to 17m (56ft)
LED On/Off Control	Auto/ Manual
LEDs	2
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm,3.6mm,6.0mm
Max. Aperture	F1.6
Angle of View	H: 113°, V:60°/H: 89°, V:48°/H: 56°, V:31°
Optical Zoom	N/A
Aperture Type	Fixed
Close Focus Distance	1.3m(4.27ft)/1.9m(6.23ft)/3.8m(12.47ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8mm	58m(192ft)	23m(75ft)	12m(39ft)	6m(20ft)
	3.6mm	72m(236ft)	29m(95ft)	14m(46ft)	7m(23ft)
	6.0mm	113m(371ft)	45m(148ft)	23m(75ft)	11m(36ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Artificial Intelligence
Perimeter Protection	Tripwire, Intrusion(Human & Vehicle classification)
People Counting	Line crossing people counting, Region people counting,Loitering filter
General Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence	Object Abandoned/Missing
Video
Compression	H.265/H.264/H.264H/H.264B/MJPEG(sub stream)
Streaming Capability	3 Streams
Resolution	4M(2688×1520)/3M(2304×1296)/1080P (1920×1080)/1.3M(1280×960) /720P(1280×720)/ D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240)
Frame Rate	Main Stream: 4M(1~25/30ps)
	Sub Stream: D1(1~25/30fps)
	Third Stream: 1080P(1~11fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32~ 8192Kbps
	H.265: 19~ 8192bps
Day/Night	Day/Night: Electronic
	Auto/ Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Defog	Support
Digital Zoom	N/A
Flip	°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/G.726/AAC/G.723
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP;
	FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS;
	UPnP;NTP
Interoperability	ONVIF(Profile S/Profile G), CGI,Milstone,Genetec,P2P
Streaming Method	Unicast / Multicast
Max. User Access	20 Users
Edge Storage	NAS
	FTP
	Mirco SD card 256GB
Web Viewer	IE(versions newer than IE8), Chrome,
	Firefox, Safari(versions newer than Safari 12)
Management Software	Smart PSS, DSS, P2P
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD:EN60950-1
	CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU
	FCC:47 CFR FCC Part 15, Subpart B
	UL/CUL:
	UL60950-1
	CAN/CSA C22.2 No.60950-1-07
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V, PoE(802.3af)(Class 0)
Power Consumption	DC12V:2.1W 6.2W(LED on)
	PoE:2.6W 7.2W(LED on)
Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / 10%RH~95% RH
Strorage Conditions	+5° C ~ +40° C (+41° F ~ +104° F) (daily temperature difference within 15° C/59° F ) / 10%RH~95% RH
Ingress Protection	IP67
Construction
Casing	Metal,plastic
Dimensions	Φ106mm×99.2mm (4.17”×3.91”)
Net Weight	0.55Kg (1.21lb)
Gross Weight	0.71Kg (1.57lb)
