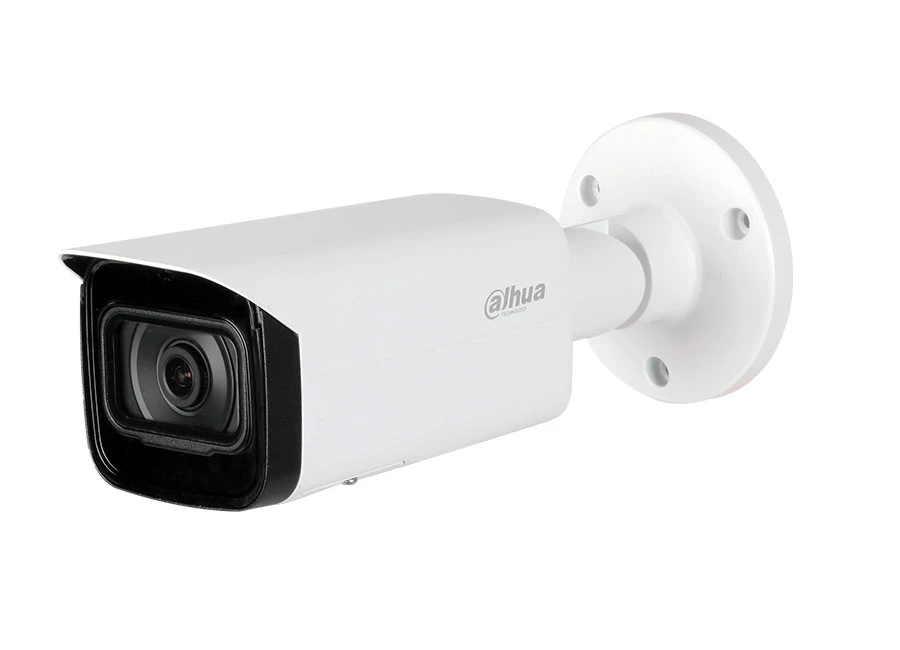

Dahua IPC HFW5541T ASE IR IP Bullet Kamera
Özellikler
- 1/2.7” 5Megapixel progressive scan STARVIS™ CMOS
- H.265&H.264 triple-stream encoding
- 20fps@5Mp(2592×1944)
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8mm fixed lens (3.6mm, 6mm, 8mm, 12mm optional)
- 1/1 Alarm in/out, 1/1 audio in/out
- Max. IR LEDs Length 78m
- Micro SD memory, IP67
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS | ||||
| Effective Pixels | 2592(H) x 1944(V) | ||||
| RAM/ROM | 512MB/128MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.004807Lux/F1.6 ( Color,1/3s,30IRE) | ||||
| 0.04359Lux/F1.6 ( Color,1/30s,30IRE) | |||||
| 0Lux/F1.6 (IR on) | |||||
| IR Distance | 2.8mm:Distance up to 23m (51ft) | ||||
| 3.6mm:Distance up to 34m (112ft) | |||||
| 6mm:Distance up to 47m (154ft) | |||||
| 8mm:Distance up to 56m (184ft) | |||||
| 12mm:Distance up to 78m (256ft) | |||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 4 | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.8mm,3.6mm,6mm,8mm,12mm | ||||
| Max. Aperture | F1.6(2.8mm~8mm),F2.0(12mm) | ||||
| Angle of View | H: 102°, V:71°/H: 84°, V:58°/H: 51°, V:37°/ | ||||
| H: 38°,V:28°/H:25°,V:18° | |||||
| Optical Zoom | N/A | ||||
| Aperture Type | Fixed | ||||
| Close Focus Distance | 0.9m(2.95ft)/1.6m(5.25ft)/3.1m(10.17ft)/4.5m(14.73ft)/10.3m(33.79ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56m(184ft) | 22m(72ft) | 11m(36ft) | 6m(20ft) | |
| 3.6mm | 80m(262ft) | 32m(105ft) | 16m(52ft) | 8m(26ft) | |
| 6mm | 120m(394ft) | 48m(157ft) | 24m(79ft) | 12m(39ft) | |
| 8mm | 160m(525ft) | 64m(210ft) | 32m(105ft) | 16m(52ft) | |
| 12mm | 240m(787ft) | 96m(315ft) | 48m(157ft) | 24m(79ft) | |
| Pan/Tilt/Rotation | |||||
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚ | ||||
| Artificial Intelligence | |||||
| Perimeter Protection | Tripwire, Intrusion(Human & Vehicle classification) | ||||
| People Counting | Line crossing people counting, Region people counting,Loitering filter | ||||
| General Intelligence | |||||
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly | ||||
| General Intelligence | Object Abandoned/Missing | ||||
| Video | |||||
| Compression | H.265/H.264/H.264B/H.264H/MJPEG(sub stream) | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution | 2592×1944/2688×1920/2304×1296/1080P(1920×1080)/1.3M(1280×960) /720P(1280×720)/D1(704×576/704×480)/VGA(640×480)/CIF(352×288/352×240) | ||||
| Frame Rate | Main Stream: 2592×1944(1~20fps) | ||||
| Sub Stream: D1(1~20/25/30fps) | |||||
| Third Stream: 1080P(1~13fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 32~ 8192Kbps | ||||
| H.265: 19~ 8192Kbps | |||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / WDR(120dB) | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image Stabilization (EIS) | Support | ||||
| Smart IR | Support | ||||
| Defog | Support | ||||
| Digital Zoom | N/A | ||||
| Flip | °/90°/180°/270° | ||||
| Mirror | Off / On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711a/ G.711Mu/ AAC/ G.726/G.723 | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP;SMTP; | ||||
| FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP;QoS; | |||||
| UPnP;NTP | |||||
| Interoperability | ONVIF(Profile S/Profile G), CGI,Milstone,Genetec,P2P | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 20 Users | ||||
| Edge Storage | NAS | ||||
| FTP | |||||
| Mirco SD card 256GB | |||||
| Web Viewer | IE(versions newer than IE8), Chrome, | ||||
| Firefox, Safari(versions newer than Safari 12) | |||||
| Management Software | Smart PSS, DSS, P2P | ||||
| Smart Phone | iOS, Android | ||||
| Certifications | |||||
| Certifications | CE-LVD:EN60950-1 | ||||
| CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU | |||||
| FCC:47 CFR FCC Part 15, Subpart B | |||||
| UL/CUL: | |||||
| UL60950-1 | |||||
| CAN/CSA C22.2 No.60950-1-07 | |||||
| Interface | |||||
| Video Interface | N/A | ||||
| Audio Interface | 1/1 channel In/Out | ||||
| RS485 | N/A | ||||
| Alarm | 1 channel In: 5mA 5VDC | ||||
| 1 channel Out: 300mA 12VDC | |||||
| Electrical | |||||
| Power Supply | DC12V, PoE(802.3af)(Class 0) | ||||
| Power Consumption | DC12V:2.4W 7.1W(IR on) | ||||
| PoE:3W 8.4W(IR on) | |||||
| Environmental | |||||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / 10%RH~95% RH | ||||
| Strorage Conditions | +5° C ~ +40° C (+41° F ~ +104° F) (daily temperature difference within 15° C/59° F ) / 10%RH~95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | N/A | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | 244.1mm×79.0mm×75.9mm (9.61”×3.11”×2.99”) | ||||
| Net Weight | 0.815Kg (1.80lb) | ||||
| Gross Weight | 1.08Kg (2.38lb) | ||||
Dahua IPC HFW5541T ASE IR IP Box Kamera Pdf Dosyası517.12 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
Irled : Var
Ses : Var
