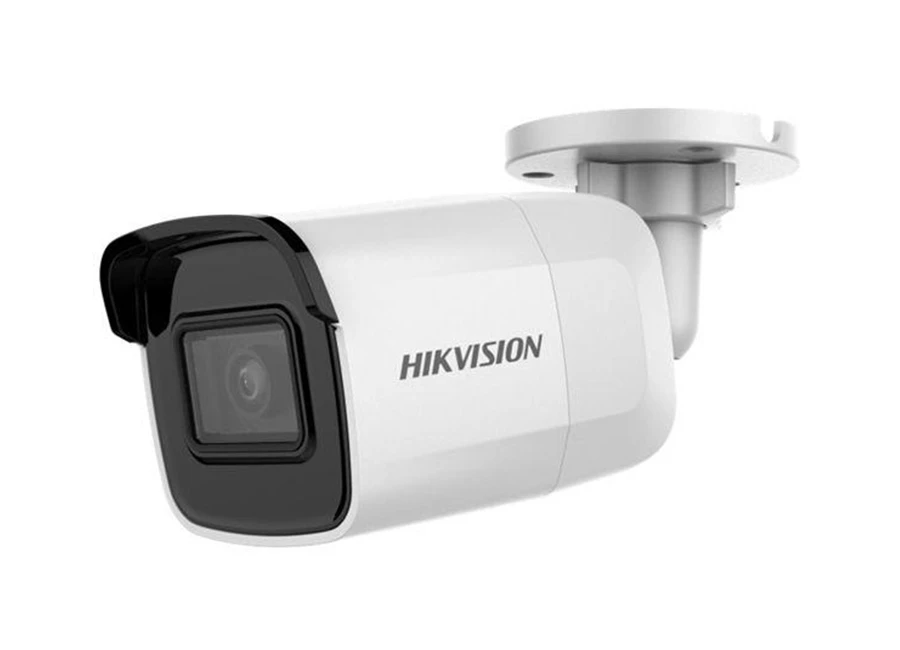

Hikvision DS 2CD2085G1 I IP Bullet Kamera

Özellikler

Up to 8 megapixel high resolution
Max. 3840 × 2160@20fps
2.8 mm/4 mm/6 mmfixed lens, optional
H.265, H.265+, H.264+, H.264
120dB WDR
Powered by Darkfighter
12 VDC & PoE (802.3af, class 3)
IR range up to 30 m
Support on-board storage, up to 128 GB
IP67,IK10
Color 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)

Teknik Özellikler

Camera
Image Sensor	1/2" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 120°
	4 mm, horizontal FOV 78°, vertical FOV 43°, diagonal FOV 92°
	6 mm, horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Lens Mount	M12
Ayarlanan Aralık	Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Fixed
Compression Standard
Video bit rate	32Kbps~16Mbps
Üçüncü Akım	Yes
Ana Akış	50Hz 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Çerçeve Hızı	60Hz 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Üçüncül Akış	50Hz 25fps (1280 × 720, 640 × 360, 352 × 288)
Üçüncül Akış	60Hz 30fps (1280 × 720, 640 × 360, 352 × 240)
Görüntü İyileştirme	BLC/3D DNR/BLC
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub stream separately
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Smart Feature-set
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
GÜç Tüketimi	12 VDC, 0.5 A, max 6 W
GÜç Tüketimi	PoE (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max 7.5 W
Weather Proof	IP67
IR Range	Up to 30m
Boyutlar	Camera 70 × 68 × 171 mm (2.8″ × 2.7″ × 6.7″)
Ağırlık	Camera 400 g (0.9 lb.)
Ağırlık	With package 700 g (1.5 lb.)
