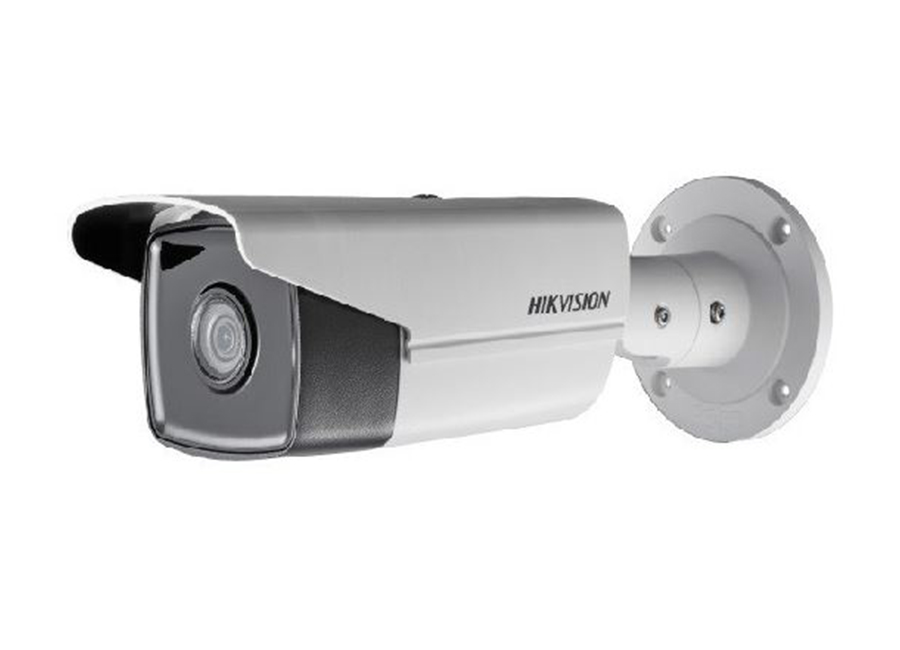

Hikvision DS 2CD2T23G0 I8 IR IP Bullet Kamera

Özellikler

1/2.8" Progressive Scan CMOS
1920 ×1080@30fps
2.8/4/6/8mm fixed lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 Behavior analyses, and face detection
BLC/3D DNR/ROI
IP67
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Support
Lens	2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
	4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
	6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
	8 mm: horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°
Lens Mount	M12
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noisereduction	3D DNR
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate	256Kbps~16Mbps
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
Frame Rate	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	No
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Recognition	Face Detection
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	-I5:12 VDC, 0.6A, max. 7.5W
	PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W
	-I8:12 VDC, 0.95A, max. 11.5W
	PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W
Weather Proof	IP67
IR Range	-I5: up to 50 m; -I8: up to 80 m
Dimensions	Camera: Φ 105 × 299.7 mm (Φ 4.1" × 11.8")
Dimensions	Package: 386 × 156 × 155 mm (15.2" × 6.14" × 6.1")
Weight	Camera: Approx. 1180 g (2.6 lb.)
Weight	With Package: Approx. 1700 g (3.7 lb.)
