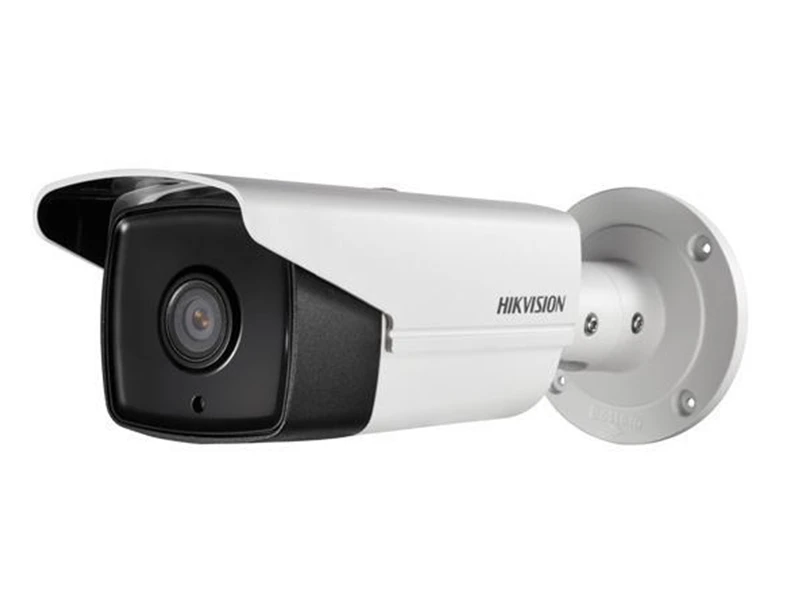

Hikvision DS 2CD2T35FWD I5 IP IR Bullet Kamera
Özellikler
- Up to 3 megapixel high resolution
- Max. 2048 × 1536@30fps
- 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
- Powered by Darkfighter
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- DC12V & PoE (802.3af)
- IR range: 50m, 80m, optional
- Support on-board storage, up to 128 GB
- IP67
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Slow shutter | Support |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 2.8 mm, horizontal field of view: 98° |
| 4 mm, horizontal field of view: 78.7° | |
| 6mm, horizontal field of view: 48° | |
| 8 mm, horizontal field of view: 37° | |
| 12 mm, horizontal field of view: 23° | |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Geniş Dinamik Aralık | 120 dB |
| Dijtal Gürültü Azaltma | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Üçüncü Akım | Yes |
| Image | |
| Max. Image Resolution | 2048×1536 |
| Ana Akış | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Çerçeve Hızı | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 720) |
| 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 720) | |
| Üçüncül Akış | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
| Görüntü İyileştirme | BLC/3D DNR/BLC |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub stream separately |
| Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule |
| Network | |
| Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Sınır İhlali | Cross a pre-defined virtual line |
| Saldırı Algılama | Enter and loiter in a pre-defined virtual region |
| Bırakılan Eşya | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Alınan Eşya | Objects removed from the pre-defined region, such as the exhibits on display. |
| İstisna Algılamaları | Scene change detection |
| Tanıma | Face Detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| GÜç Tüketimi | -I5: 12 VDC, 7 W; PoE, 9 W |
| -I8: 12 VDC, 10 W; PoE, 12.5W | |
| Weather Proof | IP67 |
| IR Range | -I5: up to 50 m; -I8: up to 80 m |
| Boyutlar | Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″) |
| Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″) | |
| Ağırlık | Camera: 1200 g (2.65 lb.) |
Hikvision DS 2CD2T35FWD I5 IP IR Bullet Kamera Pdf Dosyası934.95 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 3MP
Irled : Var
