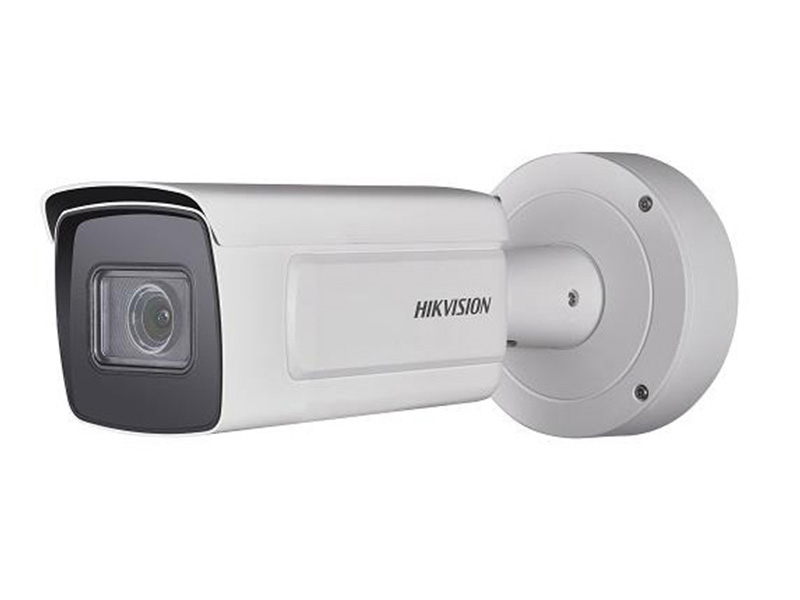

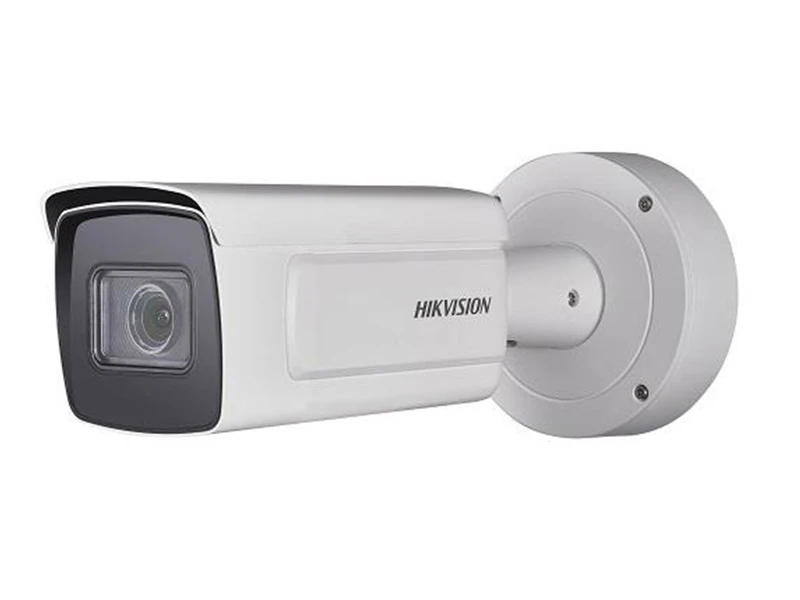

Hikvision DS 2CD5A26G0 IZHS IP Bullet Kamera

Özellikler

1/1.8” Progressive Scan CMOS
1920 × 1080 @ 60fps
Color: 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264+, H.264
140dB WDR
3D DNR
6 behavior analyses, 3 exception detections, face detection, and counting
5 defined streams and up to 5 custom streams supported
On-board storage up to 256 GB
IP67,IK10

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8-12mm, 8-32mm
Adjustment Range	Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Digital noise reduction	3D DNR
Focus	Motorized VF lens(-Z model)
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio bit rate	No
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
Frame Rate	60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (704 × 576, 640 × 480)
Sub Stream	60Hz: 30fps (704 × 480, 640 × 480)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping	Yes
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format.
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port
Alarm	2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition	Face Detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range	2.8-12mm:50m
IR Range	8-32mm:100m
Operation Condition	-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F)
Operation Condition	Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption	-IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A
Power Consumption	-IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Impact Protection	IK10
Weather Proof	IP67
Dimensions	amera: Φ144 × 347 mm (Φ5.7″ × 13.7″)
Dimensions	With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight	Camera: approx. 2.45 kg (5.40 lb.)
Weight	With package: approx. 2.7 kg (5.95 lb.)
