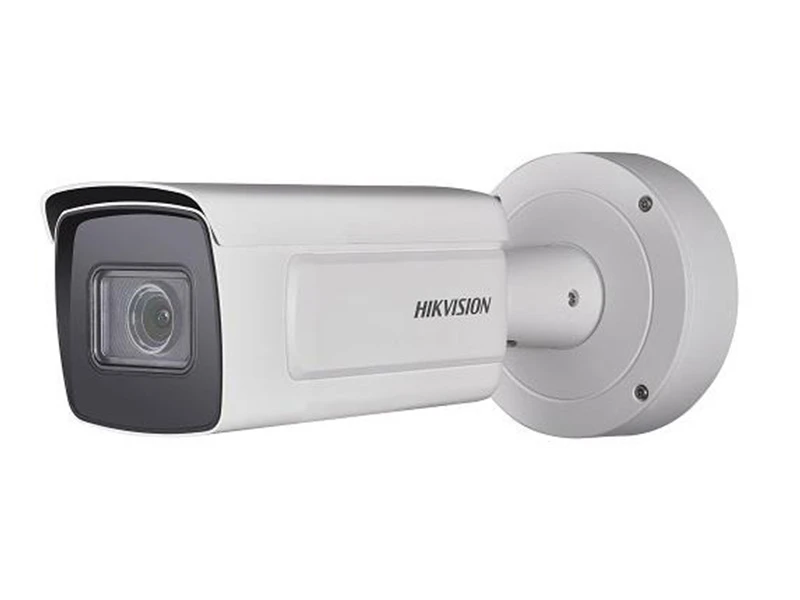

Hikvision DS 2CD5A46G1 IZHS IP Bullet Kamera

Özellikler

1.8” Progressive Scan CMOS
2560 × 1440 @ 30fps
Color 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264+, H.264
140dB WDR
3D DNR
6 behavior analyses, 3 exception detections, face detection
5 defined streams and up to 5 custom streams supported
On-board storage up to 256 GB
IP67,IK10

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time	1 s to 1/100,000 s
Slow shutter	Yes
Lens	2.8 to 12 mm, 8 to 32 mm
Lens Mount	Integrated
Adjustment Range	Bracket, pan 0° to 355°, tilt 0° to 90°, rotate 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Dual Stream	Yes
Triple Streams	Yes
Max. Image Resolution	2560 × 1440
Frame Rate	50Hz 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Frame Rate	60Hz 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz 25fps (704 × 576, 640 × 480)
Sub Stream	60Hz 30fps (704 × 480, 640 × 480)
Third Stream	50Hz 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Third Stream	60Hz 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement	BLC, HLC, Defog, EIS, Distortion Correction, 3D DNR
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping	Yes
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis	Line crossing detection, up to 4 lines configurable
	Intrusion detection, up to 4 regions configurable
	Region entrance detection, up to 4 regions configurable
	Region exiting detection, up to 4 regions configurable
	Unattended baggage detection, up to 4 regions configurable
	Object removal detection, up to 4 regions configurable
	Face detection detects faces and upload images
	Scene change detection, audio exception detection, defocus detection
Interface
Communication Interface	1 RJ45 10M/100M/1000M self-adaptive Ethernet port, RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Audio	1 input, 1 output
Alarm	2 inputs, 2 outputs (24 VAC/VDC, 1 A max.)
Alarm Input	2
Alarm Output	2
Video Output	1Vp-p Composite Output(75Ω/CVBS) (For adjustment only)
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button	Yes
Audio
Environment Noise Filtering	Support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections	Scene change detection, defocus detection
Recognition	Face Detection
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range	2.8 to 12 mm lens up to 50 m
IR Range	8 to 32 mm lens up to 100 m
Operation Condition	-30 °C to 65 °C (-22 °F to 149 °F), -H -40 °C to 65 °C (-40 °F to 149 °F)
Operation Condition	Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption	-IZS
	With extra load 12 VDC, 1.28 A, max. 15.4 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15.4 W
	Without extra load 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W
	-IZHS
	With extra load 12 VDC, 1.33 A, max. 15.9 W; PoE (802.3at, 42.5 V to 57 V), 0.50 A to 0.37 A, max. 21.2 W
	Without extra load 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
	“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Camera Φ144 × 347 mm (Φ5.7″ × 13.7″)
Dimensions	With package 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight	Camera 1.85 kg (4.07 lb.)
Weight	With package 2.95 kg (6.50 lb.)
