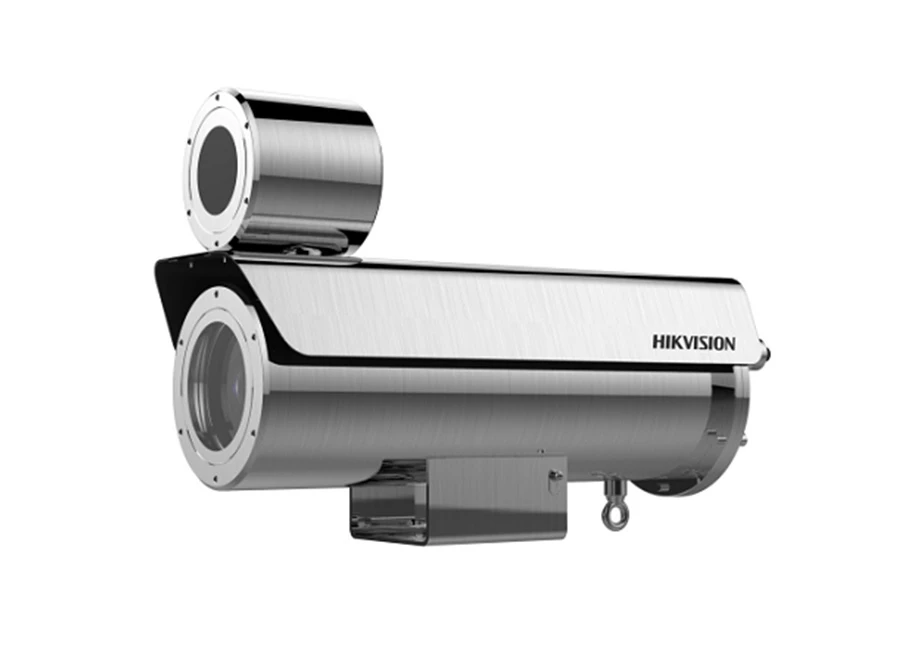

Hikvision DS 2DB4223I CX IP Bullet Kamera

Özellikler

DS-2DB4223I-CX (WE/316L)2 MP 23× Explosion-Proof IR Zoom Bullet Camera
1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:

Color: 0.002 Lux @(F1.5, AGC ON)

B/W: 0.0002 Lux @(F1.5, AGC ON)

0 Lux with IR

23× optical zoom, 12× digital zoom
Digital WDR, 3D DNR, HLC, BLC
100 VAC to 240 VAC & PoE+ (IEEE802.3at class4)
Up to 200 m IR distance
Support H.265+/H.265 video compression
Explosion-Proof Certificate No.:
CML 17ATEX1189X
IECEx CML 17.0103X

Teknik Özellikler

Camera
Effective Pixels	1920(H)x1080(V)
Minimum Aydınlatma	Color 0.002 Lux @(F1.5, AGC ON)
	B/W 0.0002 Lux @(F1.5, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
WDR	DWDR
Objektif Zamanı	1/1 s to 1/30,000 s
Gündüz ve Gece	ICR
Dijital Yakınlaştırma	12×
Otomatik Odak	Auto / Semi-automatic / Manual
Lens
Odaksal Uzunluk	5.9 mm to 135.7 mm, 23× Optical
Yakınlaştırma Hızı	Approx. 4.8 s (optical lens, wide-tele)
Field of View	Horizontal field of view 59.8° to 3.0° (wide-tele)
	Vertical field of view 33.6° to1.7° (wide-tele)
	Diagonal field of view 68.6° to 3.4° (wide-tele)
Minimum Çalışma Mesafesi	10 mm to 1500 mm (wide-tele)
Aralık Açıklık	F1.5 to F3.4
Pan & Tilt
Number of Preset	255
Infrared
IR Distance	200m
Alarm
Alarm Girişi	1
Alarm Çıkışı	1
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Alt Akış	50Hz25fps(704×576), 25fps(640×576), 25fps(320×288)
Alt Akış	60Hz30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream	50Hz 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Third Stream	60Hz 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
ROI encoding	Support 2 areas with adjustable levels
Üçlü Akış	Support
Storage	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
General
RS-485 Protocolleri	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply	100 VAC to 240 VAC & PoE+ (IEEE802.3at class4)
Güç Tüketim	Max. 25 W
Çalışma Sıcaklığı / Nem oranı	-40°C to 60°C (-40°F to 140°F)
Çalışma Sıcaklığı / Nem oranı	Humidity ≤ 95%
Protection Level	IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Montaj	Wall mounting
Boyutlar	494 mm × 169 mm × 308 mm (19.45" × 6.65" × 12.13" )
Ağırlık (yaklaşık)	Approx. 16.5 kg (36.38 lb)
