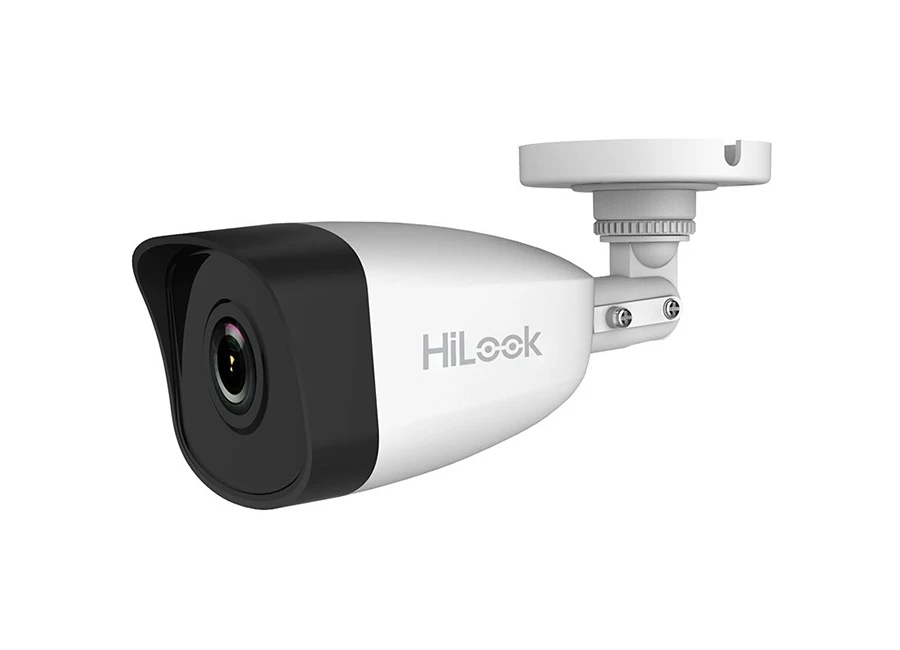

HiLook IPC B100 M IR IP Bullet Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/4" progressive scan CMOS |
| Minimum Aydınlatma | Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Slow shutter | Support |
| Objektif Hızı | 1/3 s to 1/100, 000 s, |
| Lens | 2.8 mm @F2.0, horizontal FOV 89°, vertical FOV 50°, diagonal FOV: 102° |
| 4 mm @F2.0, horizontal FOV 68°, vertical FOV 38°, diagonal FOV: 78° | |
| 6 mm @F2.0, horizontal FOV 56°, vertical FOV 31°, diagonal FOV: 64° | |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264/MJPEG |
| H.264 Türü | Baseline profile/Main profile |
| Video bit rate | 32K~2M |
| Image | |
| Max. Image Resolution | 1280 × 720 |
| Ana Akış | 50Hz: 25fps @( 640 × 480, 352 × 288, 320 × 240) |
| 60Hz: 30fps @( 640 × 480, 352 × 240, 320 × 240) | |
| Çerçeve Hızı | 50Hz: 25fps @(1280 × 720) |
| 60Hz: 30fps @(1280 × 720) | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| BLC | Support |
| Gündüz / Gece Anahtarı | Day, Night, Auto, Scheduled |
| Network | |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| GÜç Tüketimi | 12 VDC, 0.3 A, Max. 4 W |
| PoE (802.3af, 37 V to 57 V), 0.08 A to 0.13 A, Max. 5 W | |
| Weather Proof | IP67 |
| Boyutlar | Camera: Ø 70 mm × 191.3 mm (Ø 2.8" × 7.5") |
| Ağırlık | Without –M model: |
| Camera: Approx. 280 g (0.6 lb.) | |
| -M model: | |
| Camera: Approx. 340 g (0.9 lb.) | |
Teknik Kısa
Çözünürlük : 1MP (720P)
