Açıklama

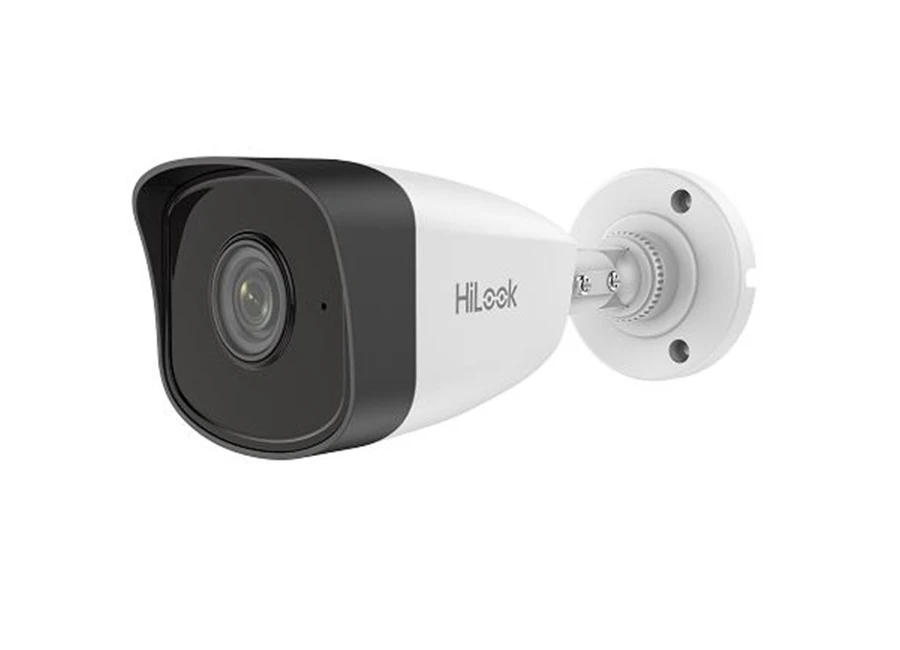

HiLook IPC B120H U IR IP Bullet Kamera

Özellikler

1/2.7" Progressive Scan CMOS
1920 × 1080@30fps
2.8/4 mm fixed lens
Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
H.265+/H.265/H.264+/H.264
BLC/3D DNR/ROI
IR range: Up to 30 m
3-Axis adjustment
IP66
Built-in microphone

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Minimum Aydınlatma	Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1 s to 1/100,000 s
Lens	2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
Lens	4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount	M12
Ayarlanan Aralık	Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~8Mbps
Max. Image Resolution	1920 x 1080
Ana Akış	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Görüntü İyileştirme	BLC, 3D DNR
BLC	Support
Gündüz / Gece Anahtarı	Auto, scheduled, day, night
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
Interface
Audio	Built-in mic
Audio
Audio Sampling Rate	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Smart Feature-set
Region of Interest	1 fixed region for main stream and sub-stream
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
GÜç Tüketimi	12 VDC, 0.3 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.0 W
Weather Proof	IP66
IR Range	Up to 30m
Boyutlar	Camera: 71.4 × 67.2 × 186.4 mm (2.8" × 2.6" × 7.3")
Boyutlar	With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
Ağırlık	Camera: Approx. 260 g (0.6 lb.)
Ağırlık	With package: Approx. 460 g (1 lb.)
