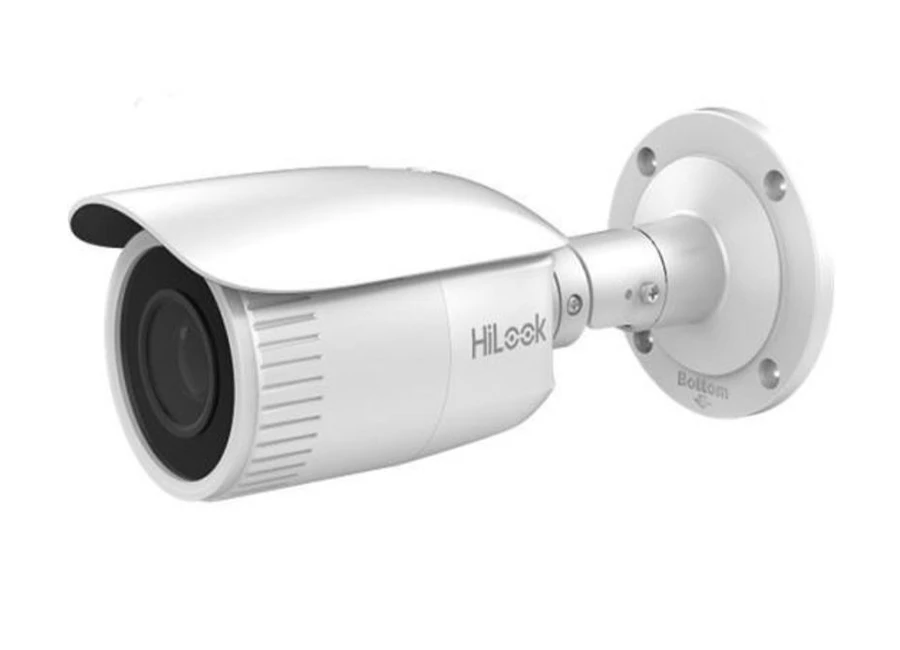

HiLook IPC B650H Z IR IP Bullet Kamera

Özellikler

1/2.7" progressive scan CMOS
2560 × 1920@15fps
2.8 mm to 12 mm varifocal lens
H.265+, H.265, H.264+, H.264
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
BLC/3D DNR/ROI
Up to 30 m IR range
PoE (Power over Ethernet)
IP67

Teknik Özellikler

Camera
Image Sensor	1/2.7” Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter time	1/3 s to 1/100, 000 s
Slow shutter	support
Lens	2.8 to 12 mm
Lens	Horizontal FOV 98° to 28°, vertical FOV 71° to 21°, diagonal FOV 130° to 35°
Lens Mount	φ14
Adjustment Range	Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Focus	-V: Manual；-Z: Auto
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~8Mbps
Max. Image Resolution	2560×1920
Frame Rate	50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Frame Rate	60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement	BLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
BLC	Support
Day/Night Switch	Auto, scheduled, day, night
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
General Function	One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Video Output	1Vp-p Composite Output (75 Ω, BNC)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 20%, PoE (802.3af, class 3)
Power Consumption	With –Z model:
	12 VDC, 0.9 A, Max: 11 W
	PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.9 W
	Without –Z model:
	12 VDC, 0.6 A, Max: 7 W
	PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, Max: 9 W
Weather Proof	IP67
IR Range	Up to 30m
Dimensions	Camera: Ø 105 mm × 244 mm (Ø 4.1" × 9.6")
Dimensions	With package: 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight	Camera: approx. 700 g (1.5 lb.)
Weight	With package: approx: 1150 g (2.5 lb.)
