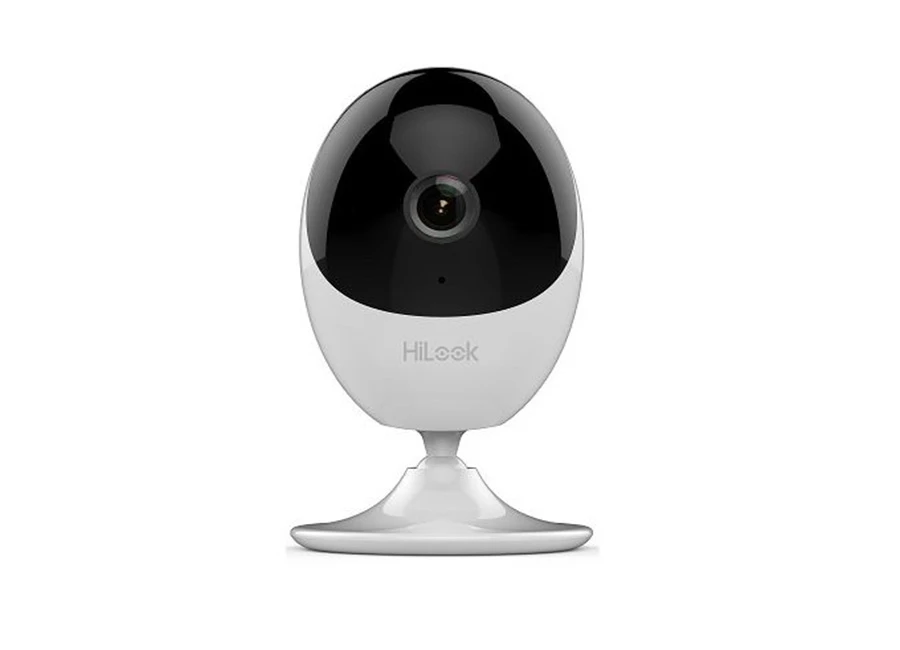

HiLook IPC C120 D/W IP Küp Kamera
Özellikler
- Up to 2.0 megapixel high resolution
- Two video streams
- 2.8mm fixed lens
- Digital Wide Dynamic Range
- 3D Digital Noise Reduction
- Built-in microphone and speaker, support two-way audio
- Support on-board storage, up to 128GB
- Up to 10 m IR range
- Built-in Wi-Fi
- 5 VDC ± 10 %, micro USB interface
- Mobile Monitoring via Hik-Connect
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Minimum Aydınlatma | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Slow shutter | Support |
| Objektif Hızı | 1/3 s to 1/100, 000 s, |
| Lens | 2.8mm, horizontal field of view 105.8° |
| Lens Mount | M12 |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | Digital WDR |
| Dijtal Gürültü Azaltma | 3D DNR |
| Compression Standard | |
| Video Compression | H.264 |
| H.264 Türü | Baseline profile/Main profile |
| Video bit rate | 32Kbps~8Mbps |
| Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Ana Akış | 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) |
| 60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) | |
| Çerçeve Hızı | 50Hz: 25fps (1920 × 1080, 1280 ×720) |
| 60Hz: 30fps (1920 × 1080, 1280 ×720) | |
| Image Settings | Brightness, saturation, sharpness, contrast are adjustable via client software |
| BLC | Support |
| ROI | Support 1 fixed region for each stream |
| Gündüz / Gece Anahtarı | Support auto, scheduled |
| Network | |
| Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x |
| Interface | |
| Audio | 1 built-in microphone, 1 built-in speaker |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Audio | |
| Çevre Gürültü Filtreleme | Support |
| Audio I/O | Support mono soundtrack |
| Audio Sampling Rate | Max. 16 kHz |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| Protokoller | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| General | |
| Power Supply | 5 VDC ± 10 %, micro USB interface |
| GÜç Tüketimi | Max. 4.5W |
| Boyutlar | Φ 67.5 × 112.2 mm (Φ 2.7'' × 4.4'') |
| Ağırlık | Camera: 125 g (0.3 lb.) |
| With package: 346g (0.8 lb.) | |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
