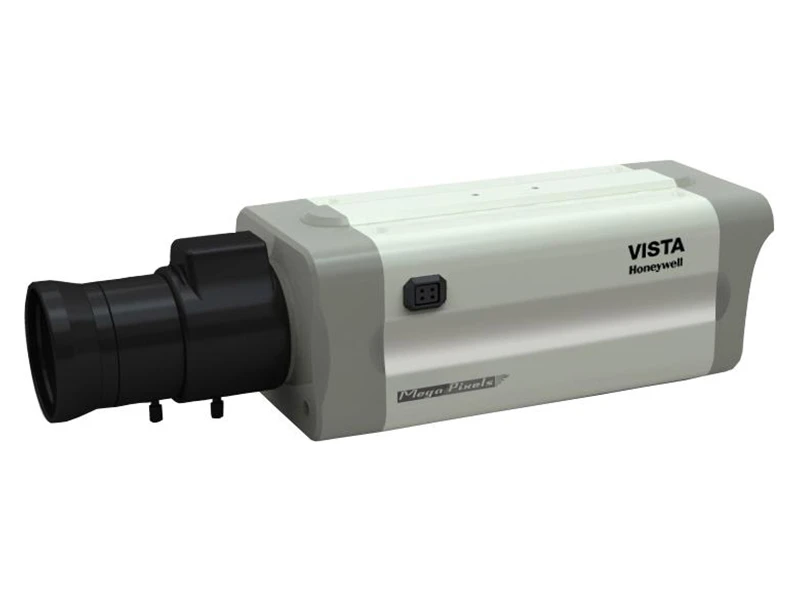

Honeywell CAIPBC210T-P IP HD Box Kamera

Teknik Özellikler

Image Sensor	2 Megapixel, 1/3” Progressive Scan CMOS sensor
Effective Pixels	1600 (H) x 1200 (V)
Minimum Illumination	Color: 0.5 Lux @ F1.2, AGC ON; B/W: 0.08 Lux @ F1.2, AGC ON
Day/Night	TDN, IR cut removable
Lens	DC Iris, Manual Iris, CS mount
Shutter Speed	1/25 - 1/10,000 Sec
Digital Noise Reduction	ON/OFF
Sync System	Internal
Auto Gain Control	ON/OFF
White Balance	ATW
BLC	ON/OFF
Image Set	Saturation, Brightness, Sharpness and Contrast setup is quick an easy and can be customized through a web client or IE Browser
OSD Overlay	Name / date / stream information; position adjustable
Video Compression	H.264, MJPEG, Multiple video streams
Image Resolution	PAL: 12.5fps (1600x1200), 25fps (1280x720)
	NTSC: 15fps (1600x1200), 30fps (1280x720)
Bit Rate	32K - 8Mbps
Network Interface Protocol	ONVIF
Ethernet	10/100Mbps self-adaptive Ethernet interface
Supported Protocol	TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, SMTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP (SNMP, HTTPS, SIP optional)
Audio Compression	G.711
Audio Compression Rate	64Kbps
Audio Input	Mic/Line in, bi-directional audio, frequency responsibility: 50 - 16000Hz, S/N>60dB
Audio Output	Line out PWL Resistance: 600 Ohm
Local Storage	SD card
SD card Storage	Support max 32GB
Alarm Trigger	Intelligent video motion detection and external input
Motion Detection	12 zones
Alarm Event	Event server: FTP server, SMTP server, web browser
Privacy Masking	3 zones
Power Supply	12VDC & 24VAC
Power over Ethernet(PoE)	CAIPBC210T: n/a
	CAIPBC210T-P: IEEE 802.3af
Power Consumption	4W (excluding external loading)
Dimensions	158(D) x 70(W) x 61(H)
Weight	437g
Connector	RS485
Operating Temperature	-10°C to +55°C
Operating Humidity	0% to 90% relative humidity
Storage Temperature	-20°C to +60°C
Browser	IE 6.0 or above
Search and Installation	IP finder
CMS	Honeywell Black ™ CAIPC-CMS100
Certification	CE, FCC
