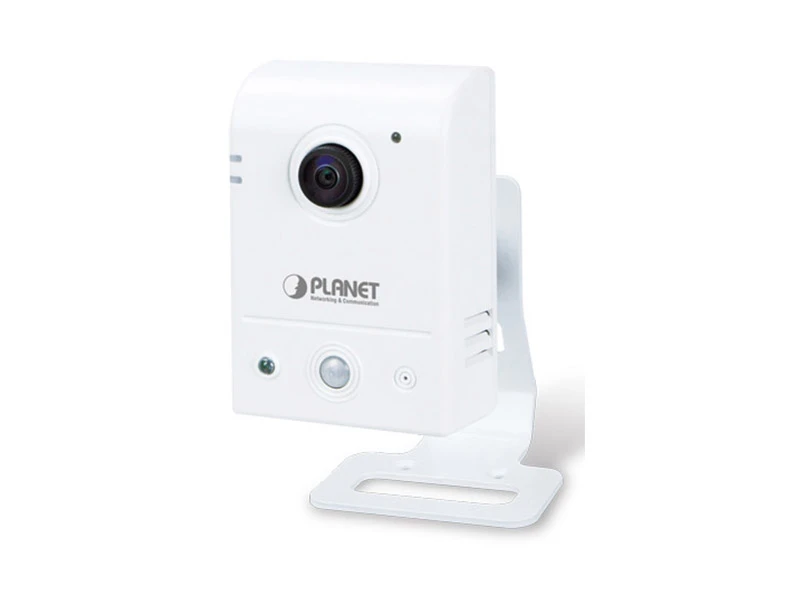

Planet ICA W8100 IP Küp Kamera

Özellikler

Camera

Fish-Eye Lens to bring a 180 degree panoramic wide angle view
Unique Fish-Eye hardware correction technology
1.3 mega-pixel CMOS sensor
Passive Infrared (PIR) Sensor for enhanced motion detection

Video / Audio

H.264, MPEG-4 and M-JPEG video compression simultaneously
Simultaneous Multi-H.264 streams support
2-Way audio support with enhanced audio quality

Network and Configuration

Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS)
UPnP® support for network setup & configuration
Auto MDI/MDI-X supported
RTSP / UPnP / HTTPS protocols selectable

Easy Installation & Management

ONVIF compliant for interoperability
Advanced e-PTZ, including preset point
Plug and Play Smart Access Technology without IP setting in router
Micro SD/SDHC card local video recording supported
Cam Viewer 3 central management software supported

Teknik Özellikler

Camera
Image Device	1/4" progressive 1.3 Mega-Pixel scan CMOS sensor
Lens	Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm
Min. Illumination	0.5 lux @ F2
Effective Pixels	1280 x 720 pixels (16:9)
PIR Sensor	1 x Built-in sensor with adjustable 70 degrees direction
	Effective Distance: 5 meters
	Effective Coverage: 70 degrees
Video
Video Encoder	H.264 / MPEG-4 / M-JPEG
Video Resolution	H.264: 1280 x 720 / 640 x 360 / 320 x 180
	MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
	M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180
Frame Rate	Up to 30fps for all resolutions
Image Setting	AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW
Streaming	Simultaneously multi-profile streaming
	Streaming over UDP, TCP, or HTTP
	M-JPEG streaming over HTTP (server push)
	Controllable frame rate and bandwidth
	Constant and variable bit rate (M-JPEG / H.264)
Rate Control	CBR (Constant Bit Rate)
Rate Control	VBR (Variable Bit Rate)
UI Layout	180 degree Single Broad View (1P)
	2 PTZ Mode (2R)
	180 degree Broad View + 2 PTZ Mode (1P2R)
Audio
Audio Streaming	2-Way Audio
Audio Compression	RTSP: G.711 64kbps
Microphone	Built-in Microphone
Audio Output	Line Out for extra speaker
Network and Configuration
Network Standard	IEEE 802.3 10Base-T
	IEEE 802.3u 100Base-TX
	IEEE 802.11b/g/n
Network Protocol	IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
Antenna connector	1 x 3dBi (Max)
Frequency	2.4GHz
RF Transmission Power	OFDM: 13dBm
RF Transmission Power	CCK: 17dBm
Output Power	802.11n: 13dBm(default) +/- 1dBm
	802.11g: 13dBm(default) +/- 1dBm
	802.11b: 17dBm(default) +/- 1dBm
Receiver Sensitivity	802.11b (11Mbps):
	CCK @ 8% PER = -88dBm
	802.11g (54Mbps):
	OFDM @ 10% PER = -72dBm
	802.11n Draft 6.0:
	HT20 @ 10% PER = -66 dBm
	HT40@ 10% PER= -61dBm
Data Rate	802.11b: 1, 2, 5.5, 11Mbps
	802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
	802.11n: up to 150Mbps
Security	Password protection / WEP and WPA Encryption
Users	Depends on streaming data rate used
System Integration
Application Programming Interface	Open API for software integration
Application Programming Interface	ONVIF
Alarm Triggers	Intelligent video motion detection and PIR sensor
Alarm Events	File upload via FTP, e-mail or Micro SD/SDHC card
Alarm Events	Notification via e-mail, Mobile APP, and HTTP
Environment
Power Requirement	5V DC, 2A
Power Consumption	6W (5VDC)
Operating Temperature	0 ~ 45 Degrees C
Operating Humidity	20 ~ 80% (non-condensing)
Weight	134g
Dimensions (W x D x H)	70 x 39 x 99 mm
Emission	CE, FCC
Connectors	10/100 Mbps Ethernet, RJ-45
	DC power jack
	Audio out
	Micro SD/SDHC card (Max 32GB, Class 6)
	WPS Button
	Factory default reset button
