Açıklama

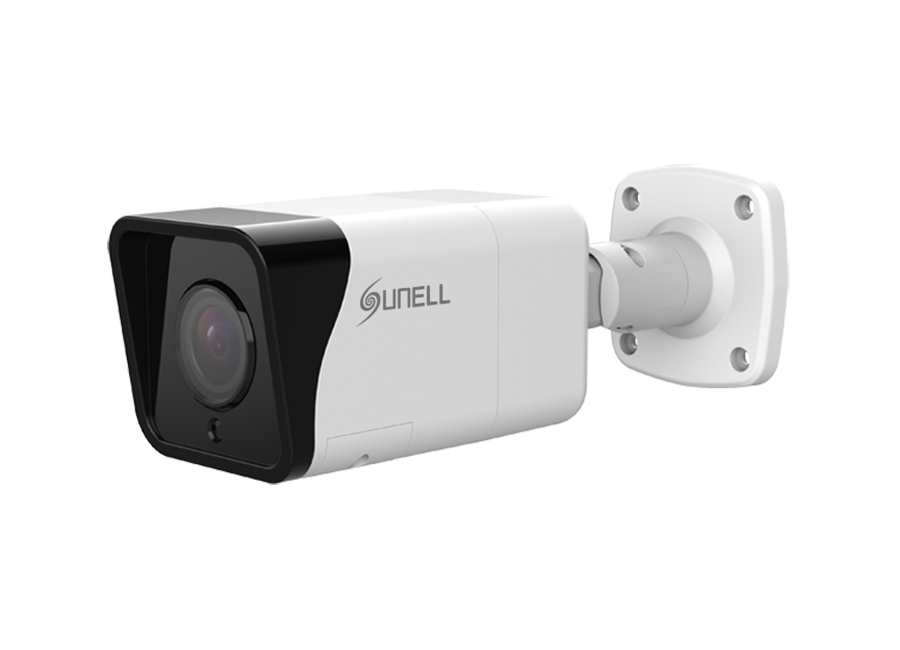

Z IP Bullet Kamera

Özellikler

1/3” Progressive Scan CMOS
Motorized lens 2.7~13.5mm
25fps/30fps@4MP(2592*1520)
Triple Streams
Smart IR Up to 40m
Low bitrate ,Excellent low light performance
WDR,3D DNR
ROI, Defog, HLC, Corridor mode, DIS
IP67

Teknik Özellikler

Camera
Image Sensor	1/3” Progressive Scan CMOS
Effective Pixels	2592(H)×1520(V)
Scanning System	Progressive
Electronic Shutter	1/5-1/20000s
Min. illumination	Color:0.05Lux@(F1.2,AGC ON)
Min. illumination	B/W:0Lux@(IR LED ON)
S/N Ratio	55dB
IR Range	Up to 40m
IR On/Off Control	Auto/ Manual
IR LEDs	30pcs
Pan/Tilt/Rotation Range	Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚
Lens
Lens Type	Motorized
Iris	Fixed Iris
Focal Length	2.7~13.5mm
F Number	F1.3
Angle of View	103°~ 34.3°
Focus Control	Motorized
Close Focus Distance	0.2m
Video
Compression	H.265,H.264,MJPEG
Max. Resolution	4MP(2592×1520)
Streaming Capability	3 Streams
Stream /	Stream1: 2592×1520/2560×1440/2304×1296/ 1920×1080/1280×720 @25/30fps
Frame Rate	Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
Frame Rate	Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 500kbps~12000kbps
	Stream2: 100kbps~6000kbps
	Stream3: 100kbps~3000kbps
Day/Night	ICR
Image Enhancement	HLC / Defog / WDR (120dB)
White Balance	Support
Gain Control	Auto/Manual
Noise Reduction	2D/3D DNR
Electronic Image Stabilization(EIS)	Support
Smart IR	Support
Mirror	Support
Region of Interest	Support
Motion Detection	Support
Privacy Masking	Support
Audio
Compression	N/A
Bit Rate	N/A
Network
Protocols:	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
Interoperability	ONVIF
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	IMS 3.0
Smart Phone	IOS, Android
Intelligence
IVS	Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	N/A
Alarm	N/A
RS485	N/A
BNC Output	N/A
Reset Button	N/A
Edge Storage	N/A
Electrical
Power Supply	DC12V/POE
Power Consumption	2.5W(IR LED OFF), 6.5W（IR LED ON）
Operating Temperature	Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F )
Operating Temperature	Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity	Less than 90% RH
Ingress Protection	IP67
Certifications	CE / FCC
Casing	Metal
Dimensions	232×74.8×80mm
Net Weight	670g
