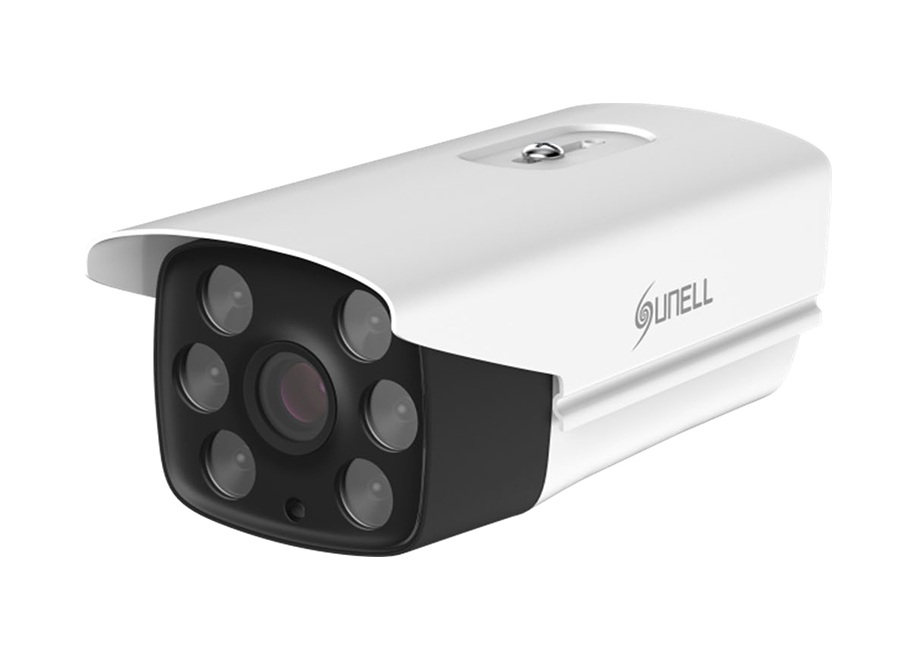

Sunell SN IPR5821CPAN J2 Z IP Bullet Kamera

Özellikler

1/2.8” Progressive Scan CMOS
2.7~13.5mm motorized lens
25fps/30fps@2MP(1920*1080)
Triple Streams
Support face, human body, vehicle, non-motor detection and capture
High performance, up to 300 faces, human body and 40 vehicles detection per frame
WDR, 3D DNR, ROI, Defog, HLC, Anti-shake
Smart IR Up to 50m
IP66

Teknik Özellikler

Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	1920(H)×1080(V)
Electronic Shutter	1/5-1/20,000s
Min. illumination	Color: 0.01Lux @(F1.2,AGC ON) ,
Min. illumination	B/W: 0Lux @(IR LED ON)
S/N Ratio	55dB
Day/Night	ICR
Wide Dynamic	WDR (120dB)
Range
IR Range	Up to 50m
IR On/Off Control	Auto/ Manual
IR LEDs	6pcs
Pan/Tilt/Rotation Range	N/A
Lens
Lens Type	Motorized
Iris	Fixed Iris
Focal Length	2.7~13.5mm
F Number	F1.6
Angle of View	H: 105°~ 30°, V: 55°~15°
Focus Control	Motorized
Video
Compression	H.265, H.264, MJPEG
Max. Resolution	1080P(1920×1080)
Streaming Capability	3 Streams
Stream /	Stream1: 1920×1080/1280×720 @25/30fps
Frame Rate	Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
Frame Rate	Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 500kbps~12000kbps
	Stream2: 100kbps~6000kbps
	Stream3: 100kbps~3000kbps
Image Enhancement	HLC / BLC / Anti-shake / Defog / WDR (120dB)
White Balance	Support
Gain Control	Auto/Manual
Noise Reduction	2D/3D DNR
Smart IR	Support
Mirror	Support
Aisle Mode	N/A
Region of Interest	Support
Motion Detection	Support
Privacy Masking	Support
Audio
Compression	G.711, RAW_PCM
Bit Rate	8kbps, 16kbps, 64kbps
Network
Protocols	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
Interoperability	ONVIF, SDK, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	SunView
Smart Phone	IOS, Android
Intelligence
IVS	Perimeter, Single Virtual Fence, Double Virtual Fences, Multi Loiter, Converse, People counting
IVS	Support alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Smart Detection	Detects face, human body, vehicle and non-motor automatically detection and capture
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio	1ch Audio Input, 1ch Audio Output
Alarm	1ch Alarm Input, 1ch Alarm Output
CVBS Output	N/A
Reset Button	Support
Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
Electrical
Power Supply	DC12V/POE (IEEE 802.3af)
Power Consumption	<9W
Operating Temperature	-30°C ~ 50°C (-22°F ~ 122°F )
Operating Humidity	Less than 90% RH
Ingress Protection	IP66
Certifications	CE / FCC
Casing	Metal + Plastic
Dimensions	218×106×99mm
Net Weight	740g
