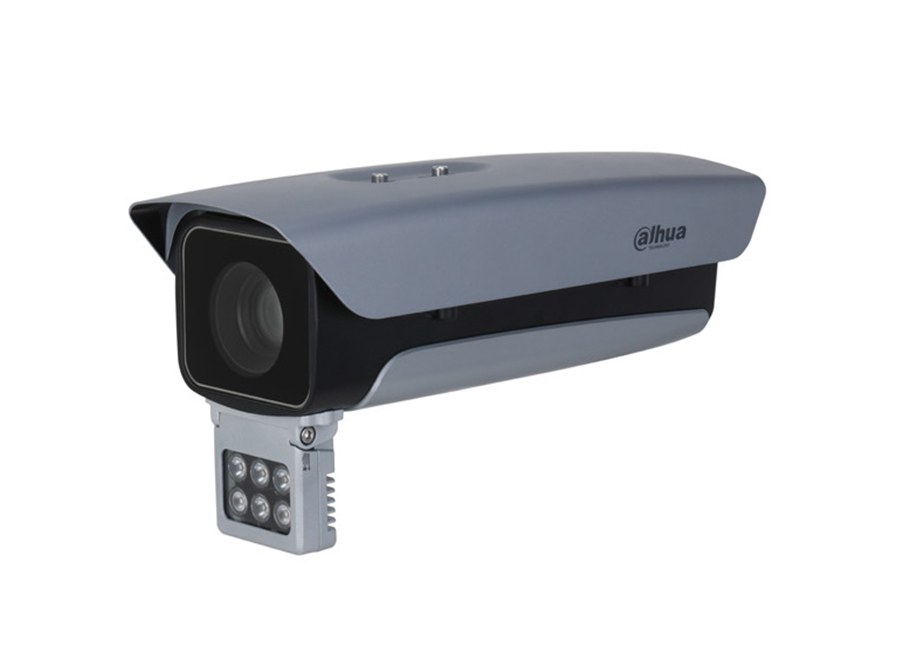

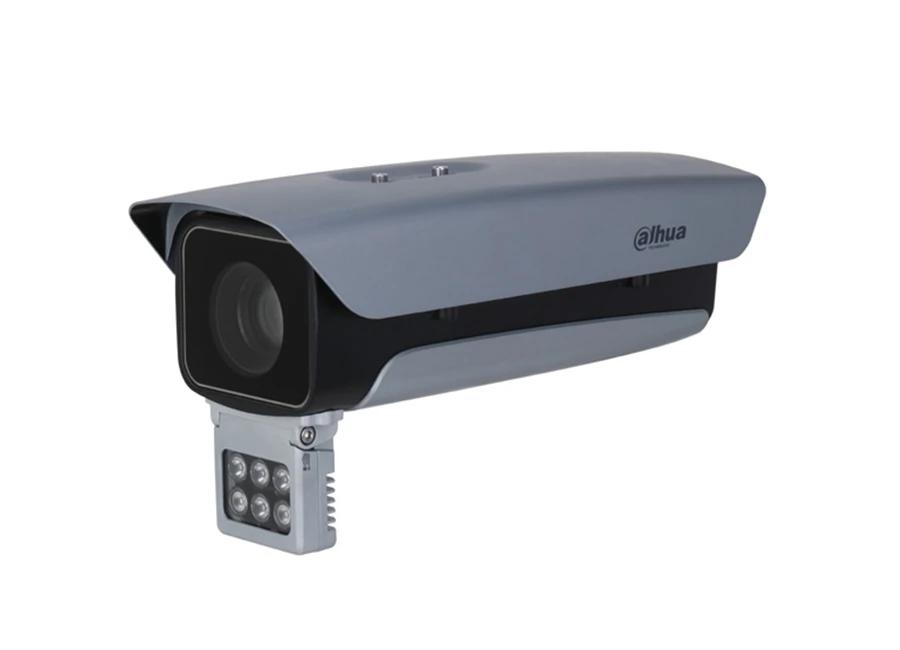

Dahua IPC-HFS7842-Z-5G-LED IP Bullet Kamera

Özellikler

8MP 1/1.8" CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840 × 2160) @25/30 fps · H.265 codec, high compression rate, ultra-low bit rate
Built-in efficient warm light, max. illumination distance: 80 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking
With deep learning algorithm, it supports people counting, face detection,perimeter protection, video metadata etc · Alarm: 7 in, 3 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G SD card
12V DC power supply; easy for installation
IP67 protection
GPS/BDS
Support 5G module (N41, N78, and N79 frequency range), and NSA and SA network

Teknik Özellikler

Camera
Image Sensor	1/1.8”8Megapixel progressive CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.003 Lux @F1.2
S/N Ratio	>56 dB
Illumination Distance	80m
Illuminator On/Off Control	Auto/Manual
Illuminator Number	6 (Warm light)
Lens
Lens Type	Motorized vari-focal
Mount Type	Module
Focal Length	8 mm–56 mm
Max. Aperture	F1.2 (Constant F1.2 throughout the zoom range)
Field of View	Horizontal: 40° (W)–9° (T)
	Vertical: 22° (W)–5° (T)
	Diagonal: 46° (W)–10° (T)
Iris Type	Auto
Close Focus Distance	W: 2 m (6.6 ft)
	T: 3 m (9.8ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	151.1 m (495.4 ft)	60.7 m (199.1 ft)	30.3 m (99.4 ft)	15.1 m (49.5 ft)
	T	400.0 m (1312.3 ft)	160.0m (524.9 ft)	80.0m (262.5 ft)	40.0m (131.2 ft)
Smart Event
IVS	Abandoned object; missing object
Professional, intelligent
IVS (Perimeter Protection)	Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection	Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: Face, single inch photo; three snapshot methods: Real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting	Support the people counting of tripwire, people counting in area, and displaying and outputting yearly/monthly/daily reports
	Support queue management, and displaying and outputting monthly/daily reports
	Support 4 rules configuration for people counting of tripwire, 4 rules configuration for people counting in area , 4 rules configuration for queue management
Video Metadata	Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+/H.264+
Video Frame Rate	Main Stream: 3840 × 2160 (1-25/30 fps)
	Sub stream: 704 × 576 (1-25 fps)/704 × 480 (1–30 fps)
	Third stream: 1920 × 1080 (1-25/30 fps)
	Fourth stream: 1920 × 1080 (1-25/30 fps)
	Fifth stream: 704 × 576 (1-25)/704 × 480 (1–30 fps)
Stream Capability	5 streams
Resolution	8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2592 × 1944)/4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 9 kbps–17664 kbps
	H.265: 9 kbps–17664 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization (EIS)	Yes
Smart Illumination	Yes
Defog	Yes
Image Rotation	°/90°/180°/270°
	(Support 90°/270° with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711A; G.711Mu; G.726; AAC; G.723
Alarm Event
Alarm Event	No SD card; SD card full; SD card error; network disconnection; illegal access; security exception; IP conflict; motion detection; video tampering; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; people gathering; loitering detection; scene changing;
	audio detection; defocus detection; people counting; people counting in area; face detection; video metadata; external alarm; voltage detection
Network
Network	RJ-45 (10/100/1000 Base-T)
5G	Support 5G module (N41, N78, and N79 frequency range), and NSA and SA network
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 80 M)
Storage	Dahua Cloud; FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE9 and later
	Chrome: 50 and later
	Firefox: 48 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certifications
Certification	CE-LVD: EN62368-1
	CE-EMC: Electromagnetic Compatibility Directive
	FCC: 47 CFR FCC Part 15, Subpart B
	UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	2 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	7 channels in: 5mA 3V–5V DC
Alarm Output	3 channels out: 1,000mA 30V DC/500mA 50V AC
Power
Power Supply	12V DC
Power Consumption	Basic power consumption: 5.2W (12V DC)
	Max. power consumption (ICR + warm light full intensity + 5G acquiring): 25.5W (12V DC)
Environment
Operating Conditions	–30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Protection Grade	IP67
Construction
Casing	Metal + Plastic
Dimensions	404.3 mm × 163.8 mm × 211.8 mm
	(15.9 × 6.4" × 8.3") (L × W × H)
Net Weight	4.02 kg (8.9 lb)
Gross Weight	4.98 kg (11 lb)
