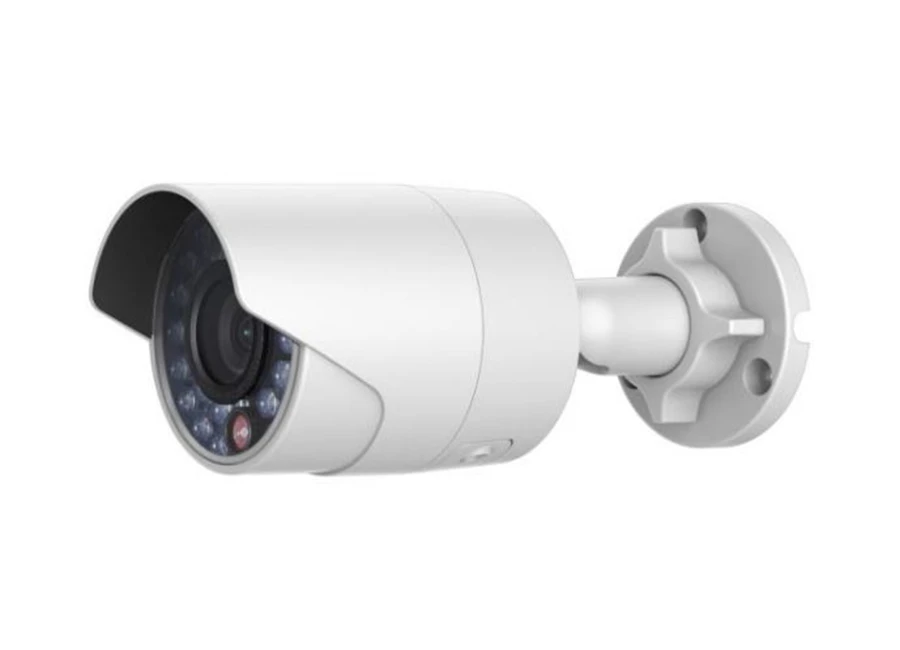

Hikvision DS 2CD2032F I IR IP Bullet Kamera
Özellikler
- 3MP high resolution
- HD real-time video
- 3D DNR & DWDR & BLC
- IR LEDs: up to 30m
- IP66
- PoE
- Compact design
- Bracket include
Teknik Özellikler
| Camera | |
| Image Sensor: | 1/3" Progressive Scan CMOS |
| Minimum Aydınlatma: | 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Objektif Hızı: | 1/3 s to 1/100,000 s |
| Lens: | 4mm@ F2.0 (6mm 12mm optional) |
| Angle of view: 70°(4mm), 43.3°(6mm), 20.6°(12mm)@(2048 × 1536); 79°(4mm), 49°(6mm), 23.2°(12mm)@(1920 × 1080) | |
| Lens Mount: | M12 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | Digital WDR |
| Dijtal Gürültü Azaltma: | 3D DNR |
| Compression Standard | |
| Video Compression: | H.264/MJPEG |
| Video bit rate: | 32Kbps~12Mbps |
| Çift Akış: | Yes |
| Image | |
| Max. Image Resolution: | 2048×1536 |
| Çerçeve Hızı: | 50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720) |
| 60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720) | |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Suppport |
| Network | |
| Network Storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger: | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protokoller: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering, Anonymous access | |
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Reset Butonu: | Yes |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar: | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği: | 20/40MHz Support |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK |
| 802.11g/n: OFDM | |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Güç İletim: | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Alıcı Hassasiyeti: | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transmission Rate: | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil: | 50m(depend on environment) |
| General | |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| GÜç Tüketimi: | Max. 5 W (Max. 7 W with IR cut filter on) |
| Weather Proof: | IP66 |
| IR Range: | Up to 30m |
| PIR: | 60.4×76.9×139.28 mm (2.4” × 3.0” × 5.5”) |
| Ağırlık: | 500g (1.1 lbs) |
| NOT: | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support |
| the 802.1X protocol. | |
Hikvision DS 2CD2032F I IR IP Bullet Kamera Pdf Dosyası495.43 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
