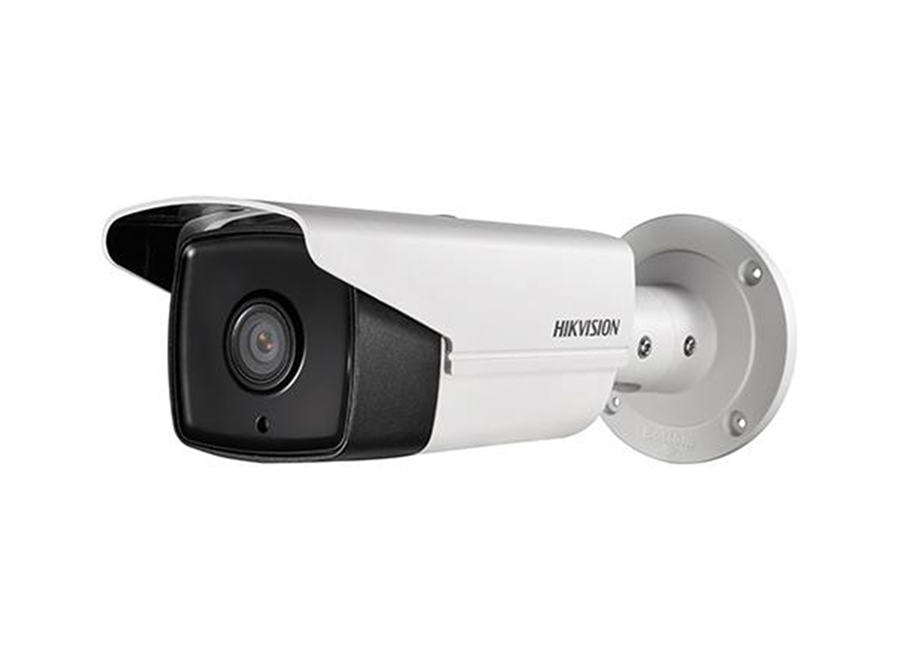

Hikvision DS 2CD2T25FHWD I5 IP Bullet Kamera
Özellikler
- Up to 2 megapixel high resolution
- Max. 1920 × 1080 @60fps
- 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
- Powered by Darkfighter
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- DC12V & PoE (802.3af)
- IR range 50m, 80m, optional
- Support on-board storage, up to 128 GB
- IP67
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Color 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Slow shutter | Support |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 2.8 mm, horizontal field of view 108° |
| 4 mm, horizontal field of view 86.4° | |
| 6mm, horizontal field of view 52° | |
| 8 mm, horizontal field of view 41° | |
| 12 mm, horizontal field of view 25° | |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Dijtal Gürültü Azaltma | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 32Kbps~16Mbps |
| Üçüncü Akım | Yes |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Ana Akış | 50Hz 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Çerçeve Hızı | 50Hz 50fps (1920 × 1080, 1280 × 960, 1280×720) |
| 60Hz 60fps (1920 × 1080, 1280 × 960, 1280×720) | |
| Üçüncül Akış | 50Hz 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) |
| 60Hz 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) | |
| Görüntü İyileştirme | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub stream separately |
| Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| mask, Watermark, IP address filtering | |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Sınır İhlali | Cross a pre-defined virtual line |
| Saldırı Algılama | Enter and loiter in a pre-defined virtual region |
| Bırakılan Eşya | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Alınan Eşya | Objects removed from the pre-defined region, such as the exhibits on display. |
| İstisna Algılamaları | Scene change detection |
| Tanıma | Face Detection |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| GÜç Tüketimi | 12 VDC ± 25%, 6W |
| PoE(802.3af, 36 – 57V, class 3), 7W | |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Boyutlar | Camera Φ 127.3 × 95.9 mm (5.01″ × 3.78″) |
| Package 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″) | |
| Ağırlık | Camera 620 g (1.37 lb.) |
Hikvision DS 2CD2T25FHWD I5 IP Bullet Kamera Pdf Dosyası1.15 MB
Hikvision DS 2CD2T25FHWD I5 IP Bullet Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.25 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
