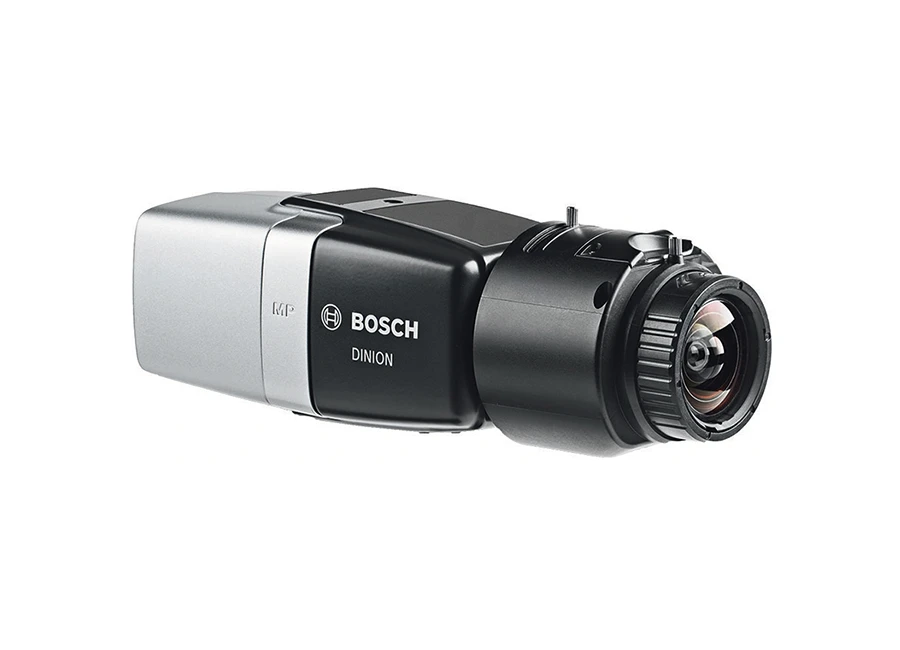

Bosch NBN 80052 BA 5MP IP HD Box Kamera
Özellikler
- Remarkable low-light performance (0.0121 lx)
- 5MP (3K) high detail at fast speeds (30 fps)
- Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
- Low network strain and storage costs
- Outstanding wide dynamic range (97+16 dB)
Teknik Özellikler
| Power Supply | 12 VDC; Power-over-Ethernet 48 VDC nominal |
| Current Consumption | 750 mA (12 VDC); 200 mA (PoE 48 VDC) |
| Power Consumption | 9 W |
| PoE | IEEE 802.3af (802.3at Type 1) Class 3 |
| Type | 1/1.8” CMOS |
| Total sensor pixels | 6.1 MP |
| 5.5MP (4:3) mode | 97 dB WDR (97+16 dB with IAE) |
| 5MP (16:9) mode | 97 dB WDR (97+16 dB with IAE) |
| 1080p mode | 103 dB WDR (103+16 dB with IAE) |
| Mono 5MP mode | 0.004 lx |
| Mono 1080p mode | 0.00275 lx |
| Video compression | H.264 (MP); M-JPEG |
| Streaming | Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| Overall IP Delay | Min. 120 ms, Max. 340 ms |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 30 [25] fps |
| Encoder regions | Up to 8 areas with encoder quality settings per area |
| 5MP (16:9) | 2992 X 1680 |
| 5.5MP (4:3) | 2704 X 2032 |
| 1080p HD | 1920 X 1080 |
| 720p HD | 1280 x 720 |
| Upright 9:16 (cropped) | 400 x 720 |
| Adjustable picture settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| ALC level | Adjustable |
| Saturation | Adjustable from peak to average |
| Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter |
| Day/Night | Auto (adjustable switch points), Color, Monochrome |
| Sharpness | Sharpness enhancement level selectable |
| Backlight compensation | On / off / Intelligent Auto Exposure (IAE) |
| Contrast enhancement | On/off |
| Noise reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Intelligent defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
Bosch NBN 80052 BA 5MP IP HD Box Kamera PDF Dosyası465.14 KB
Teknik Kısa
Çözünürlük : 5MP
